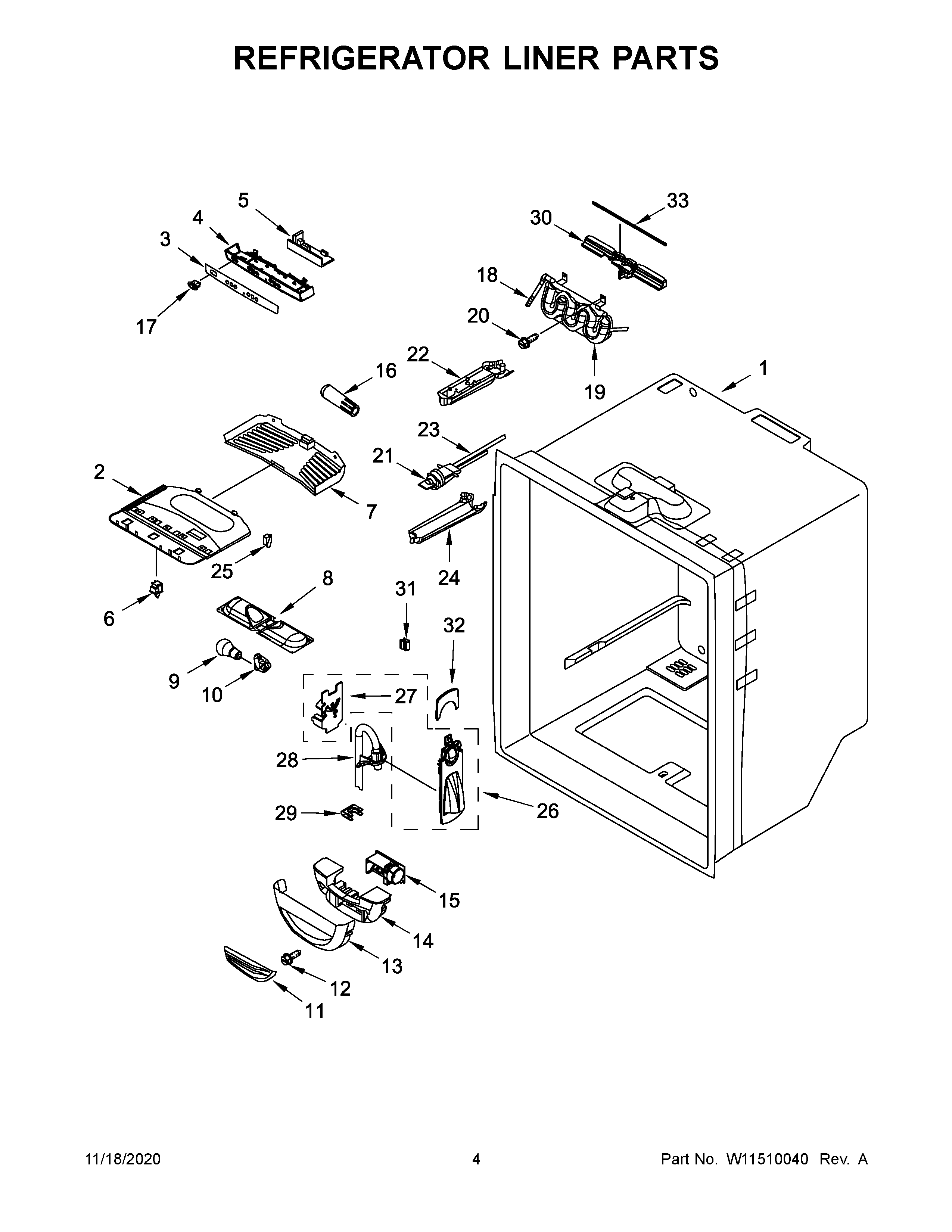

WRF535SWHW03 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11469743 Whirlpool Wire Harness Assembly
2W10464764 Whirlpool Refrigerator Housing
3W11469742 Whirlpool Refrigerator Overlay
4W11469741 Whirlpool Refrigerator Housing
5WPW10503278 Whirlpool Refrigerator Electronic Control Board
6W11123941 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11107911 Whirlpool Refrigerator Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10594330 Whirlpool Refrigerator Control
16everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
17W11469740 Whirlpool Refrigerator Switch
18WP2300868 Whirlpool Refrigerator Fitting
19W11229977 Whirlpool Refrigerator Reservoir
2067006425 Whirlpool Refrigerator Screw
21W11395888 Whirlpool Refrigerator Bypass Filter Cap
22PLATE-FIL
23W11346623 Whirlpool Refrigerator Water Filter Head
24WP12568001 Whirlpool Filter Cover
25WP12575501 Whirlpool Refrigerator Micro Switch
26WPW10585703 Whirlpool Refrigerator Cover
27W11515355 Whirlpool Refrigerator Plate
28W11677725 Whirlpool Refrigerator Guide
2967002816 Whirlpool Refrigerator Waterline Clip
30W11714300 Whirlpool Insulation
31W10819546 Whirlpool Refrigerator Clip
32W11519867 Whirlpool Refrigerator Cover
33GASKET, SEAL
