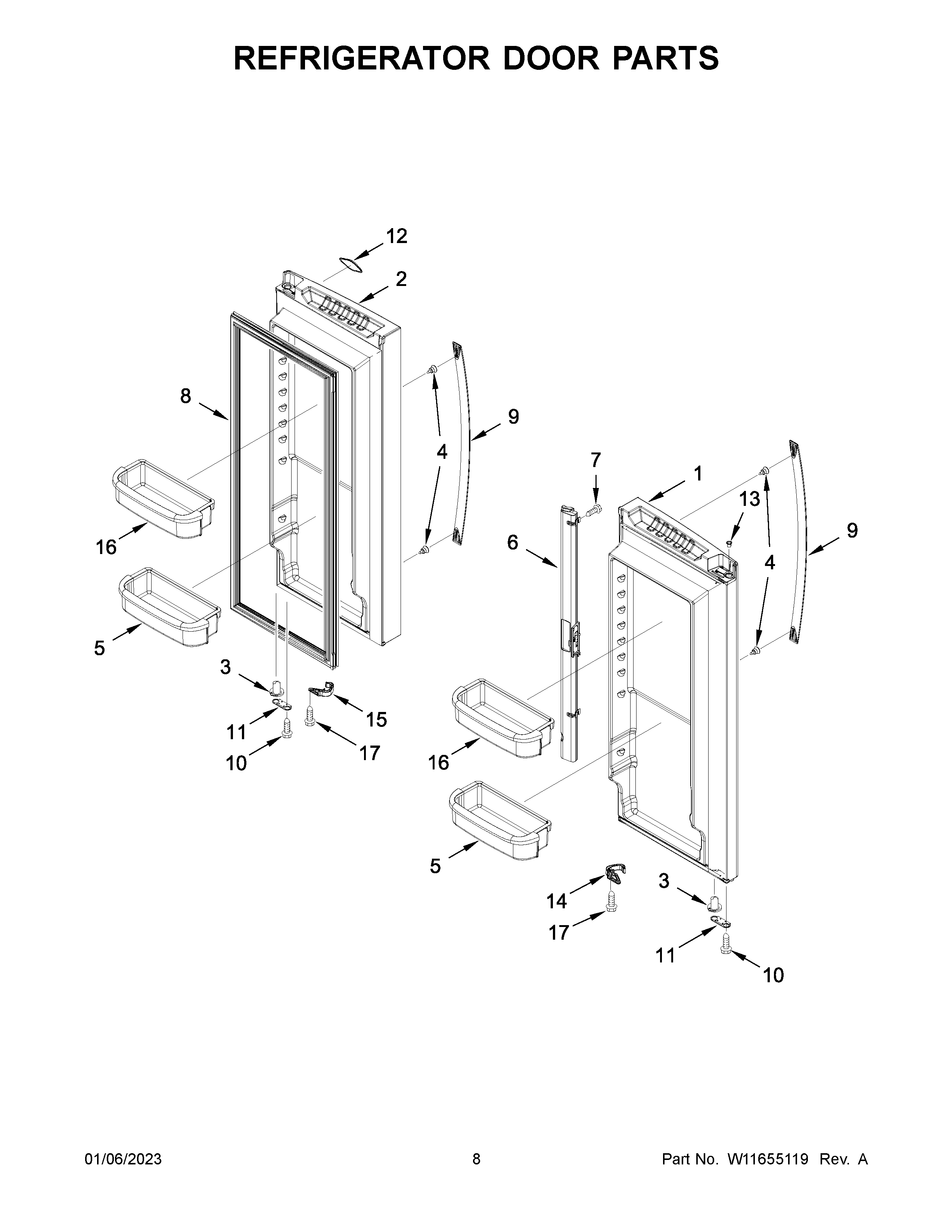

WRF535SWHW08 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, LEFT (BLACK)
1	DOR-FIP (DROP SHIP)
2A	13107887BQ Whirlpool Refrigerator Black Foam In Place Door
2	13107887WQ Whirlpool Refrigerator FIP Door White
3A	WP67003639 Whirlpool Refrigerator Closer
3	WP67003638 Whirlpool Closing Cam
4	W11449276 Whirlpool Handle Support
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6A	WP12722803B Whirlpool Door Guide
6	RAIL-MULLN WHITE
7	W11311945 Whirlpool Refrigerator Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8A	GASKET-FIP
9A	W11123097 Whirlpool Refrigerator Handle
9	W11127179 Whirlpool Refrigerator Handle
10	WP98165 Whirlpool Screw
11	12968202W Whirlpool Refrigerator Door Stop
11A	W11708403 Whirlpool Door Stop
12	W11223753 Whirlpool Refrigerator Nameplate
13	12996601 Whirlpool Refrigerator Bushing Clip
14A	W10918170 Whirlpool Refrigerator Closer
14	W10918118 Whirlpool Refrigerator Door Closer
15A	W10918171 Whirlpool Refrigerator Closer
15	W10918120 Whirlpool Refrigerator Closer
16	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17	WP67006908 Whirlpool Refrigerator Screw
