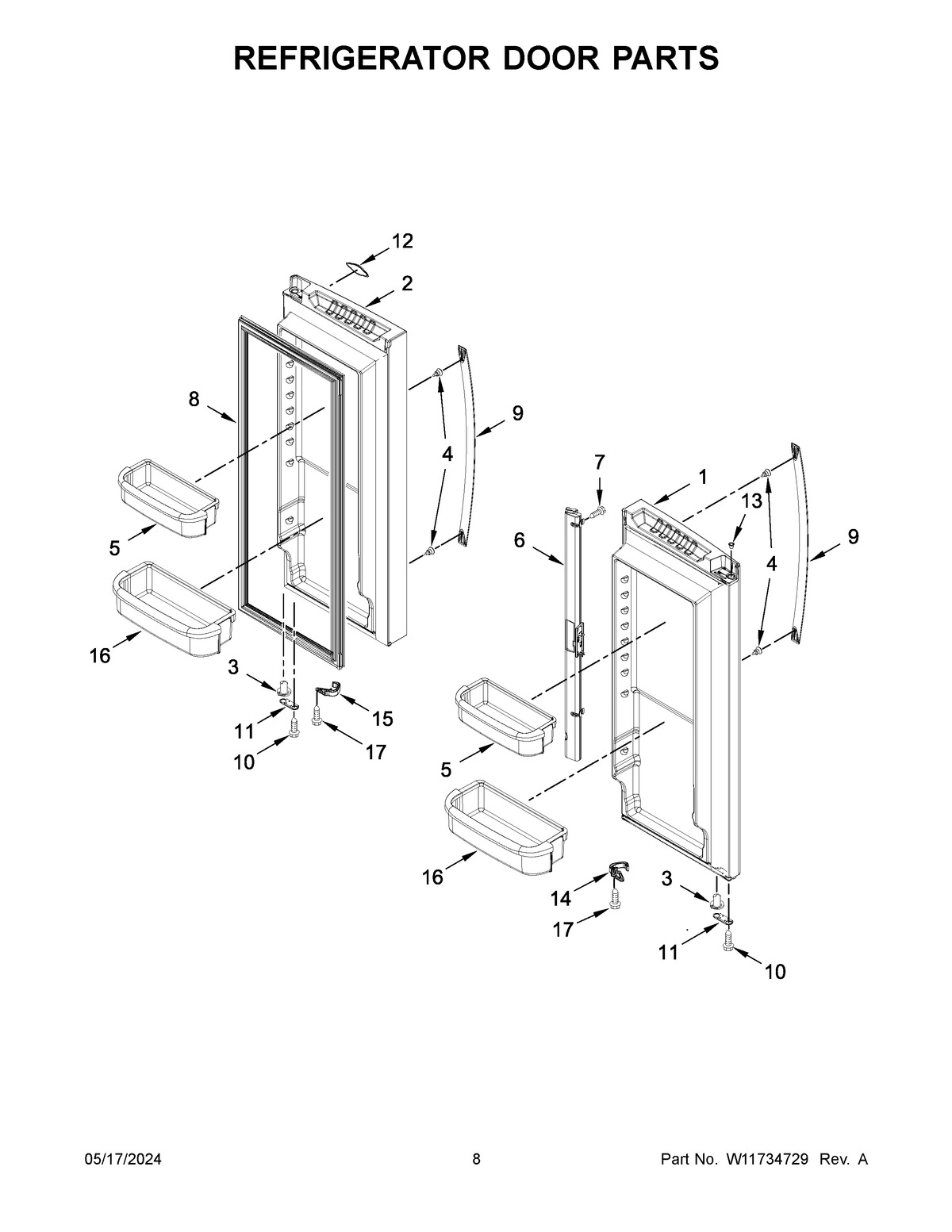

WRF535SWHW10 05 – REFRIGERATOR DOOR PARTS

WRF535SWHW10 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF535SWHW10 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOR-FIP (DROP SHIP)
213107887WQ Whirlpool Refrigerator FIP Door White
3WP67003638 Whirlpool Closing Cam
4W11449276 Whirlpool Handle Support
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6RAIL-MULLN WHITE
7W11311945 Whirlpool Refrigerator Screw
8W10830189 Whirlpool Refrigerator Door Gasket
9W11127179 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
1112968202W Whirlpool Refrigerator Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
1312996601 Whirlpool Refrigerator Bushing Clip
14W10918118 Whirlpool Refrigerator Door Closer
15W10918120 Whirlpool Refrigerator Closer
16WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17WP67006908 Whirlpool Refrigerator Screw
