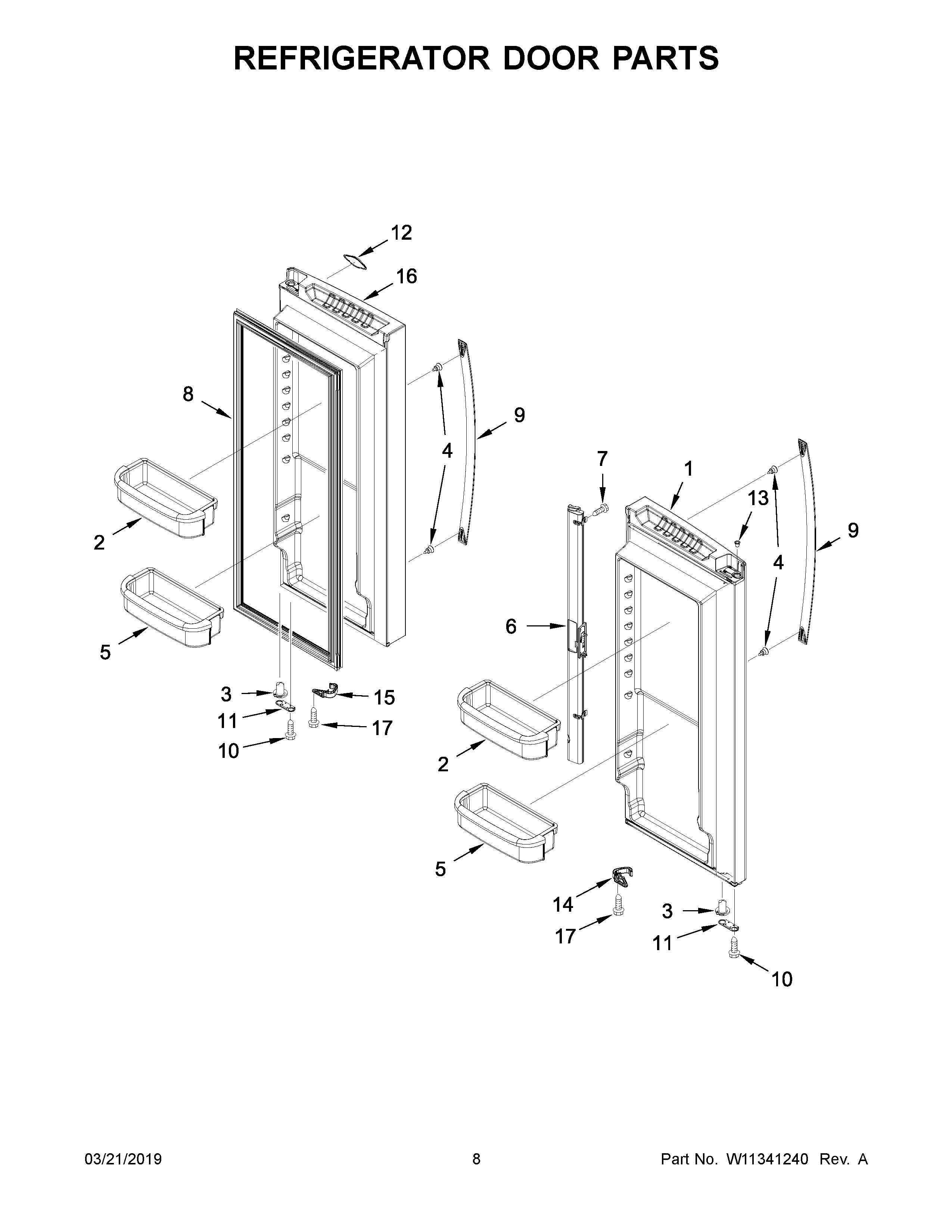

WRF535SWHZ02 05 – REFRIGERATOR DOOR PARTS

WRF535SWHZ02 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF535SWHZ02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW10919641 Whirlpool Refrigerator Door Assembly
1W11307258 Whirlpool Refrigerator Door Assembly
2W11307263 Whirlpool Refrigerator FIP Door
2AW10919633 Whirlpool Refrigerator Door Assembly
3AWP67003639 Whirlpool Refrigerator Closer
3WP12028505AP Whirlpool Closing Cam
4W11449276 Whirlpool Handle Support
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803AP Whirlpool Refrigerator Mullion Rail
6AWP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8AGASKET-FIP
8GASKET-FIP
9HANDLE-REFRIGERATOR SS
9AW11125624 Whirlpool Door Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
11AW11708403 Whirlpool Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
1312996601 Whirlpool Refrigerator Bushing Clip
14W10918008 Whirlpool Refrigerator Closer
14AW10918170 Whirlpool Refrigerator Closer
15W10918010 Whirlpool Refrigerator Closer
15AW10918171 Whirlpool Refrigerator Closer
16WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17WP489474 Whirlpool Refrigerator Screw
