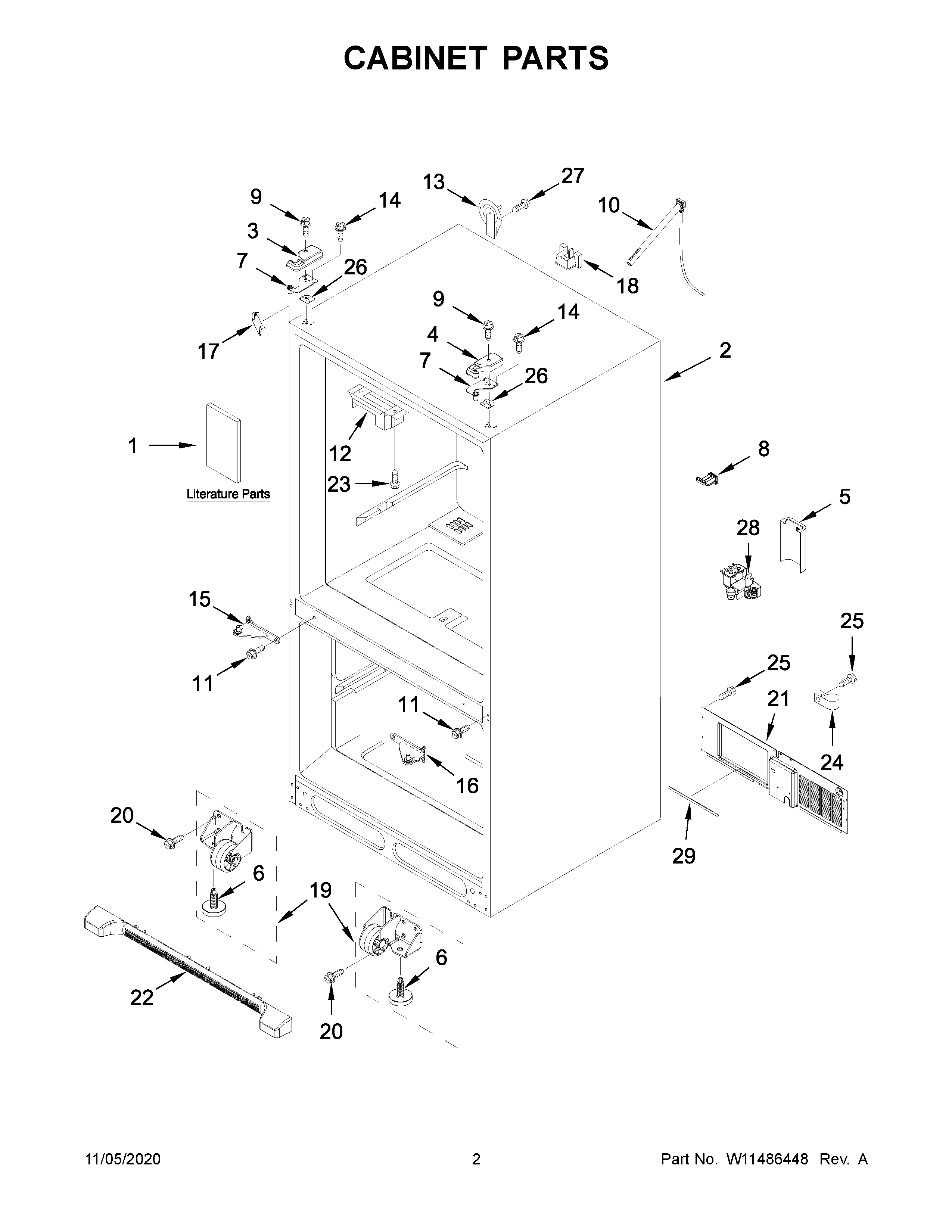

WRF535SWHZ05 02 – CABINET PARTS

WRF535SWHZ05 02 – CABINET PARTS

Written by

in

WRF535SWHZ05 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WPW10337648 Whirlpool Refrigerator Cover
4WPW10191117 Whirlpool Refrigerator Cover
5W10208593 Whirlpool Refrigerator Valve Cover
6WPW10141622 Whirlpool Leveler
7W11592375 Whirlpool Door Hinge
7AW11592374 Whirlpool Refrigerator Top Door Hinge
8W10528513 Whirlpool Tube Clamp
9WP8281196 Whirlpool Screw
10W11181718 Whirlpool Refrigerator Water Tube
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
1312726003 Whirlpool Refrigerator Water Cover
15W10917991 Whirlpool Refrigerator Door Hinge
16HINGE-DOOR
17WP12587703AP Whirlpool Refrigerator Filler
18W11686793 Whirlpool Block
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WPW10211855 Whirlpool Refrigerator Back Cover
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W11693756 Whirlpool Screw Assembly
24W11456069 Whirlpool Refrigerator Clamp
25SCREW
26A12999502 Whirlpool Refrigerator Hinge Shim
2612999501 Whirlpool Refrigerator Hinge Shim
27WP98165 Whirlpool Screw
28VALVE-WATER INLET REFR
29GASKET
