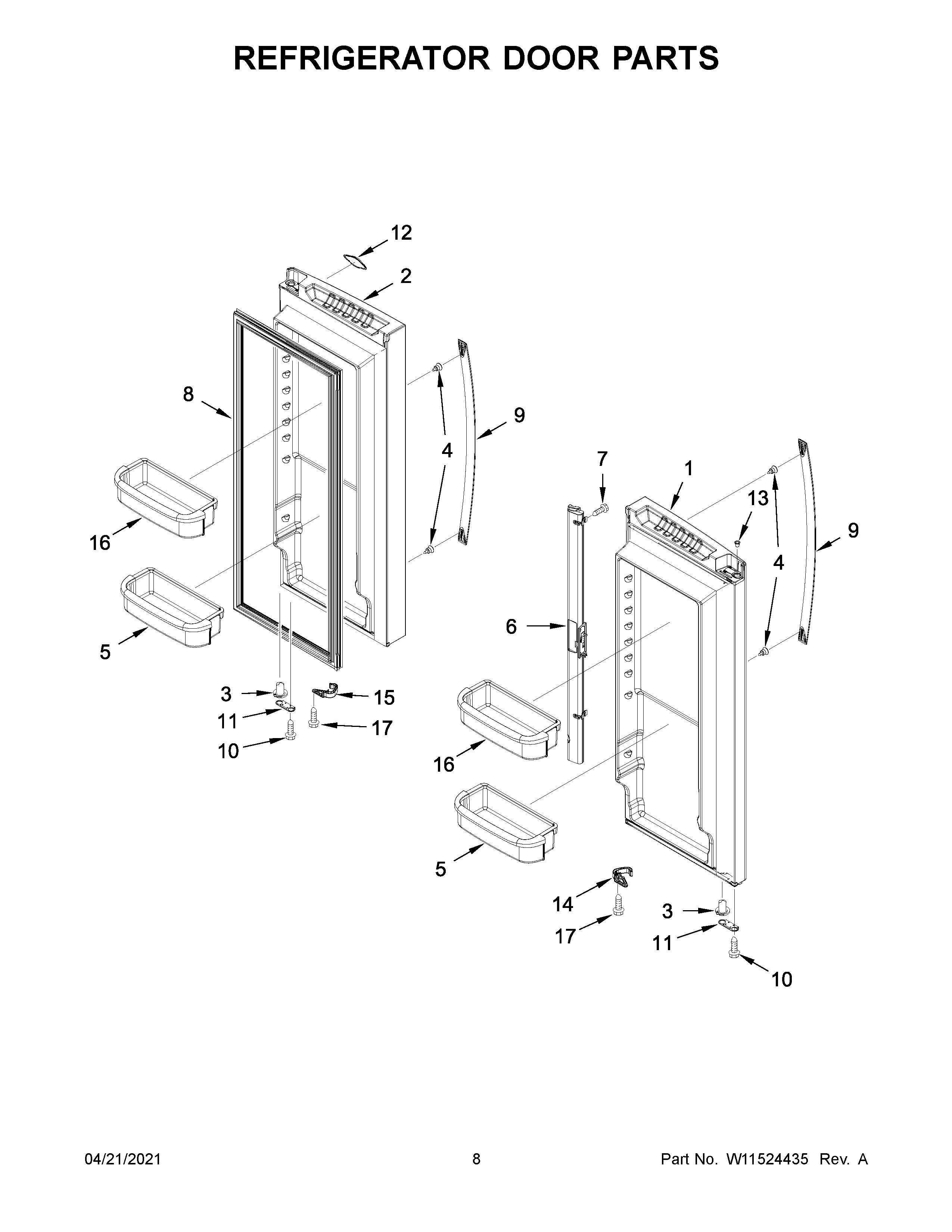

WRF535SWHZ06 05 – REFRIGERATOR DOOR PARTS

WRF535SWHZ06 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF535SWHZ06 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11435334 Whirlpool Door Assembly
2W11435333 Whirlpool Refrigerator Door Assembly
3WP12028505AP Whirlpool Closing Cam
4W11449276 Whirlpool Handle Support
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6WP12722803AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9HANDLE-REFRIGERATOR SS
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12W11223753 Whirlpool Refrigerator Nameplate
1312996601 Whirlpool Refrigerator Bushing Clip
14W10918008 Whirlpool Refrigerator Closer
15W10918010 Whirlpool Refrigerator Closer
16WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
17WP67006908 Whirlpool Refrigerator Screw
