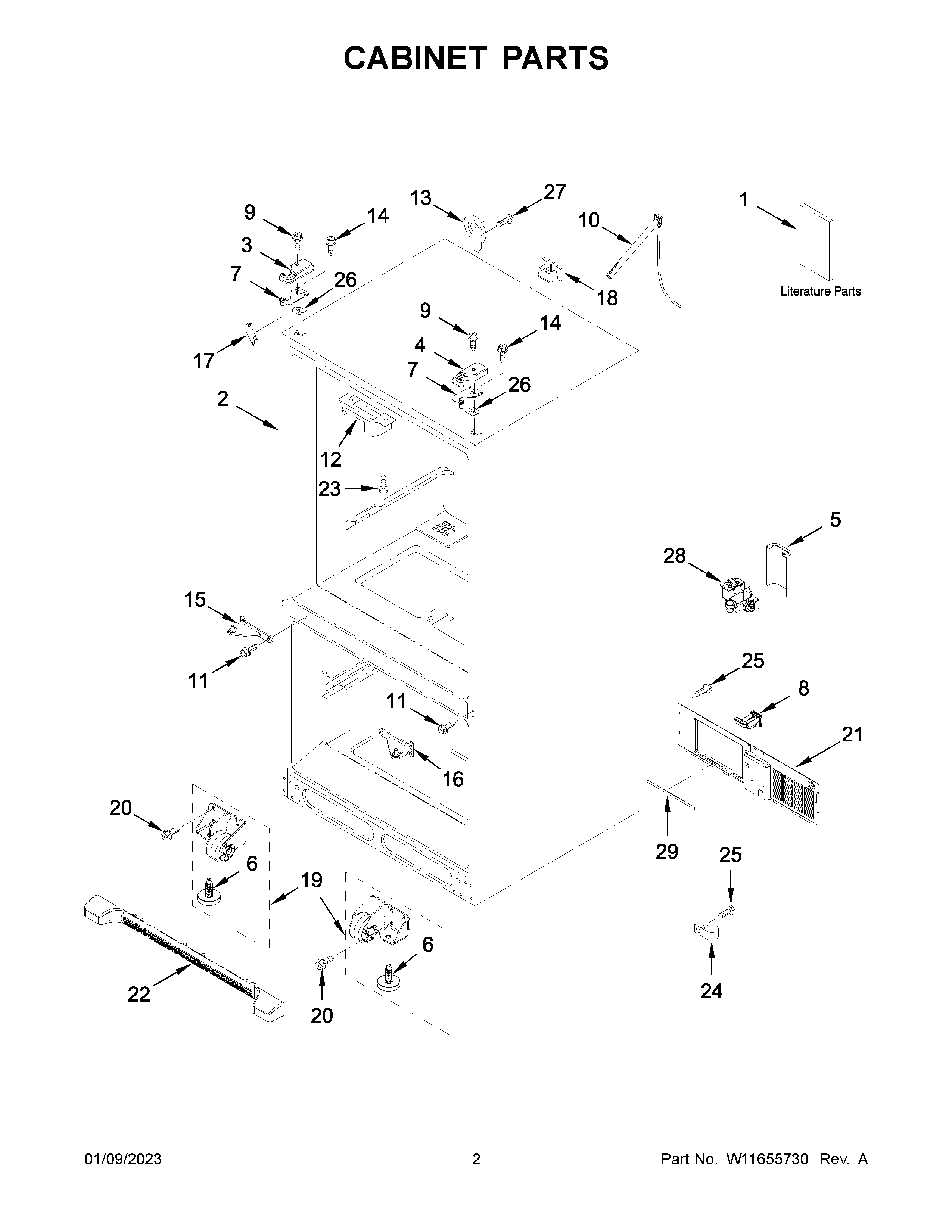

WRF535SWHZ10 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2	CABINET (NOT A SERVICABLE PART)
3	WPW10337648 Whirlpool Refrigerator Cover
4	WPW10191117 Whirlpool Refrigerator Cover
5	W10208593 Whirlpool Refrigerator Valve Cover
6	WPW10141622 Whirlpool Leveler
7	W11592375 Whirlpool Door Hinge
7A	W11592374 Whirlpool Refrigerator Top Door Hinge
8	W10528513 Whirlpool Tube Clamp
9	WP8281196 Whirlpool Screw
10	W11181718 Whirlpool Refrigerator Water Tube
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
13	12726003 Whirlpool Refrigerator Water Cover
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	W11686793 Whirlpool Block
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	WPW10211855 Whirlpool Refrigerator Back Cover
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W11693756 Whirlpool Screw Assembly
24	W11456069 Whirlpool Refrigerator Clamp
25	SCREW
26A	12999502 Whirlpool Refrigerator Hinge Shim
26	12999501 Whirlpool Refrigerator Hinge Shim
27	WP98165 Whirlpool Screw
28	W11524655 Whirlpool Refrigerator Valve
29	W11534848 Whirlpool Gasket
30	LID, HV BOX
31	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32	12961602 Whirlpool Refrigerator Wire Cover
33	W11686675 Whirlpool Screw
