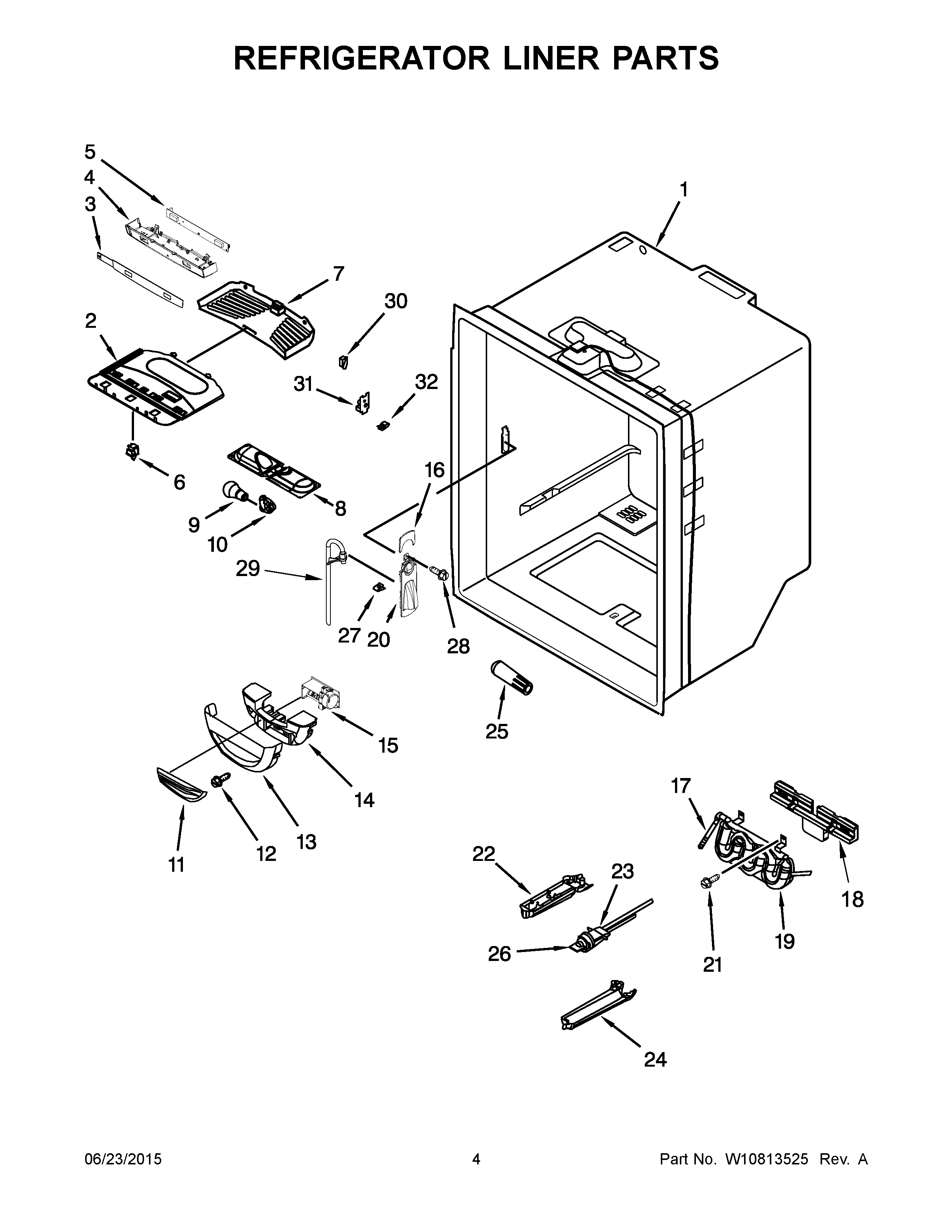

WRF540CWBM01 03 – REFRIGERATOR LINER PARTS

WRF540CWBM01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRF540CWBM01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIWPW10224292 Whirlpool Refrigerator Wire Harness
2W10464764 Whirlpool Refrigerator Housing
3W11721626 Whirlpool Overlay
4W11416469 Whirlpool Refrigerator Housing
5WPW10677146-includeCORE Whirlpool WPW10677146 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9W11338583 Whirlpool Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
16W11519867 Whirlpool Refrigerator Cover
17WP2300868 Whirlpool Refrigerator Fitting
18WPW10163893 Whirlpool Refrigerator Insulation
19W11229977 Whirlpool Refrigerator Reservoir
20WPW10585703 Whirlpool Refrigerator Cover
21WP67006415 Whirlpool Refrigerator Screw
22PLATE-FIL
23W11346623 Whirlpool Refrigerator Water Filter Head
24WP12568001 Whirlpool Filter Cover
25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26W11395888 Whirlpool Refrigerator Bypass Filter Cap
27W10819546 Whirlpool Refrigerator Clip
2867006425 Whirlpool Refrigerator Screw
29W11677725 Whirlpool Refrigerator Guide
30WP12575501 Whirlpool Refrigerator Micro Switch
31W11515355 Whirlpool Refrigerator Plate
3267002816 Whirlpool Refrigerator Waterline Clip
