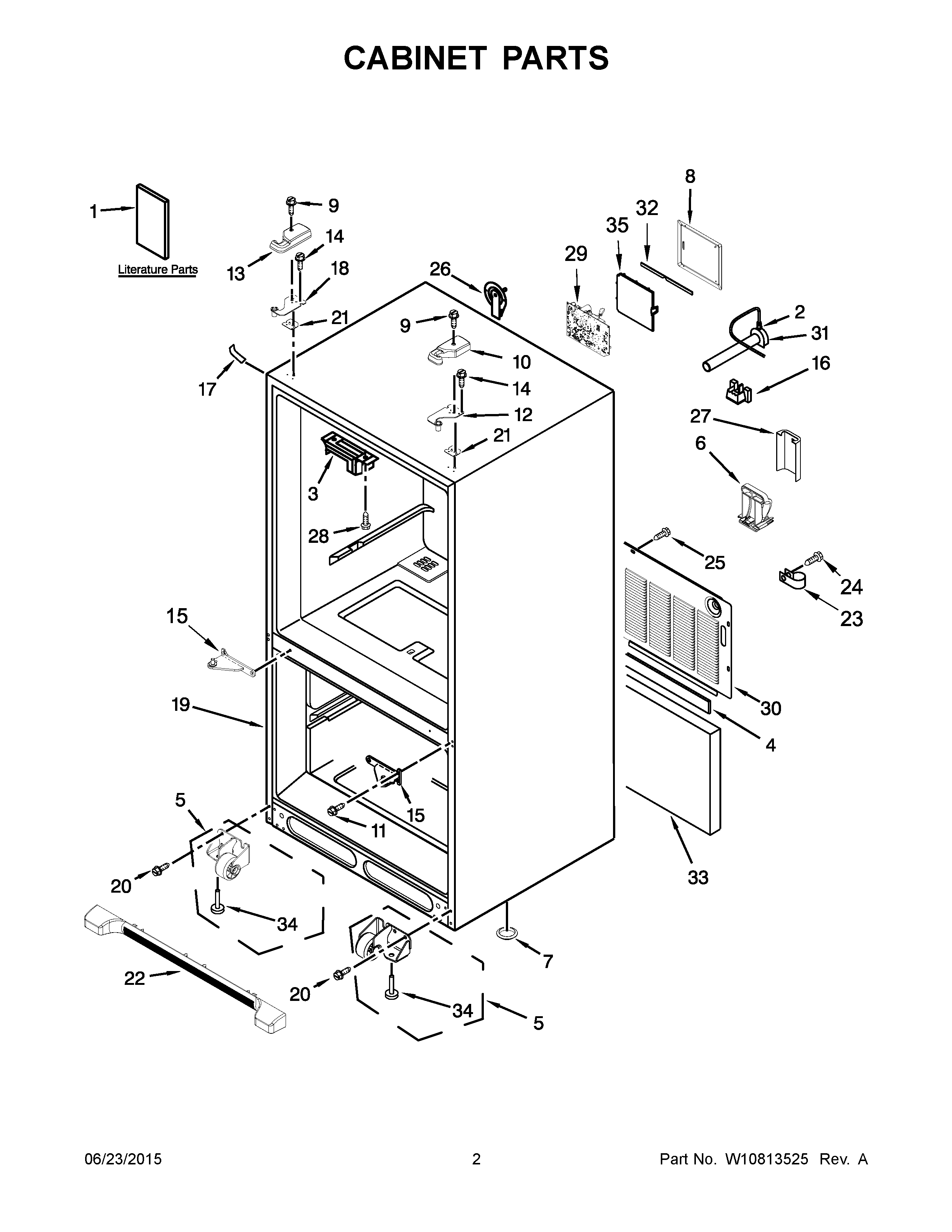

WRF540CWBW01 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2	WPM0114003 Whirlpool Microwave Speed Clip Clamp
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	W10528513 Whirlpool Tube Clamp
7	A3076901 Whirlpool Refrigerator Plug
8	12961602 Whirlpool Refrigerator Wire Cover
9	WP8281196 Whirlpool Screw
10B	WPW10191117 Whirlpool Refrigerator Cover
10	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
10A	WP67005956 Whirlpool Refrigerator Cover
11	WP67006380 Whirlpool Screw
12	W11592374 Whirlpool Refrigerator Top Door Hinge
13B	WPW10337648 Whirlpool Refrigerator Cover
13A	W10337647 Whirlpool Refrigerator Cover
13	WPW10337634 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10918113 Whirlpool Refrigerator Door Hinge
15C	13000002WD Whirlpool Refrigerator Door Hinge
15B	W10917988 Whirlpool Refrigerator Door Hinge
15D	W10918168 Whirlpool Refrigerator Door Hinge
15A	W10918164 Whirlpool Refrigerator Door Hinge
16	W11686793 Whirlpool Block
17B	WP12587703AP Whirlpool Refrigerator Filler
17	12587703W Whirlpool Refrigerator Cover
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W11592375 Whirlpool Door Hinge
19	CABINET (NOT A SERVICEABLE PART)
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534154 Whirlpool Refrigerator Front Grille
22B	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22A	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W11456069 Whirlpool Refrigerator Clamp
24	WP98165 Whirlpool Screw
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W10854958 Whirlpool Refrigerator Screw
29	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11176463 Whirlpool Refrigerator Water Tube
32	GASKET, HV BOX
33	INSULATION, SOUND
34	WPW10141622 Whirlpool Leveler
35	W11226688 Whirlpool Refrigerator Cover
