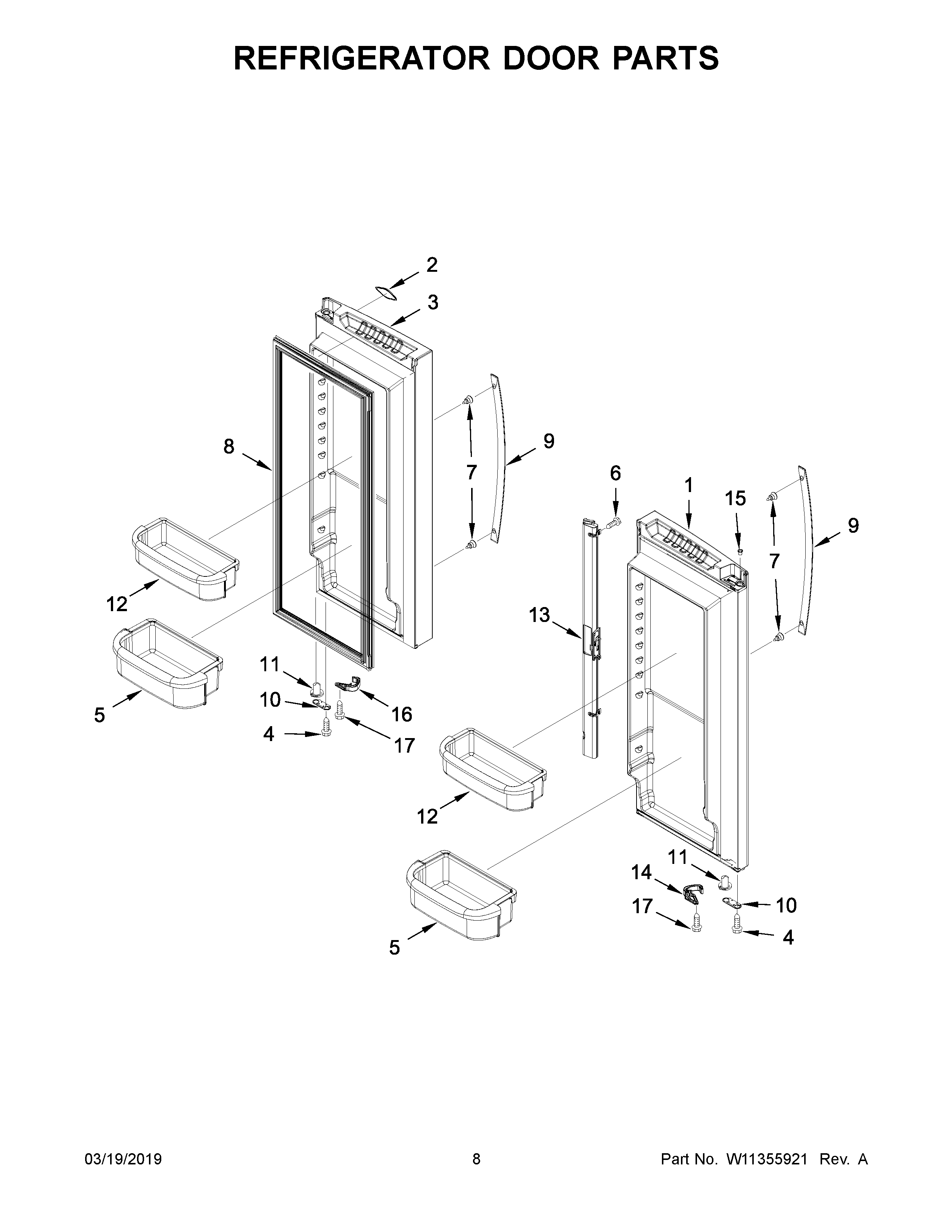

WRF540CWHB01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107888WQ Whirlpool Refrigerator DOR FIP WH
1A	13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
2	W11223753 Whirlpool Refrigerator Nameplate
3	13107887WQ Whirlpool Refrigerator FIP Door White
3A	13107887BQ Whirlpool Refrigerator Black Foam In Place Door
4	WP98165 Whirlpool Screw
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8A	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
9	W11127179 Whirlpool Refrigerator Handle
9A	W11123097 Whirlpool Refrigerator Handle
10	W11708403 Whirlpool Door Stop
10A	12968202W Whirlpool Refrigerator Door Stop
11	WP67003638 Whirlpool Closing Cam
11A	WP67003639 Whirlpool Refrigerator Closer
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13	RAIL-MULLN WHITE
13A	WP12722803B Whirlpool Door Guide
14	W10918118 Whirlpool Refrigerator Door Closer
14A	W10918170 Whirlpool Refrigerator Closer
15	12996601 Whirlpool Refrigerator Bushing Clip
16A	W10918171 Whirlpool Refrigerator Closer
16	W10918120 Whirlpool Refrigerator Closer
17	WP489474 Whirlpool Refrigerator Screw
