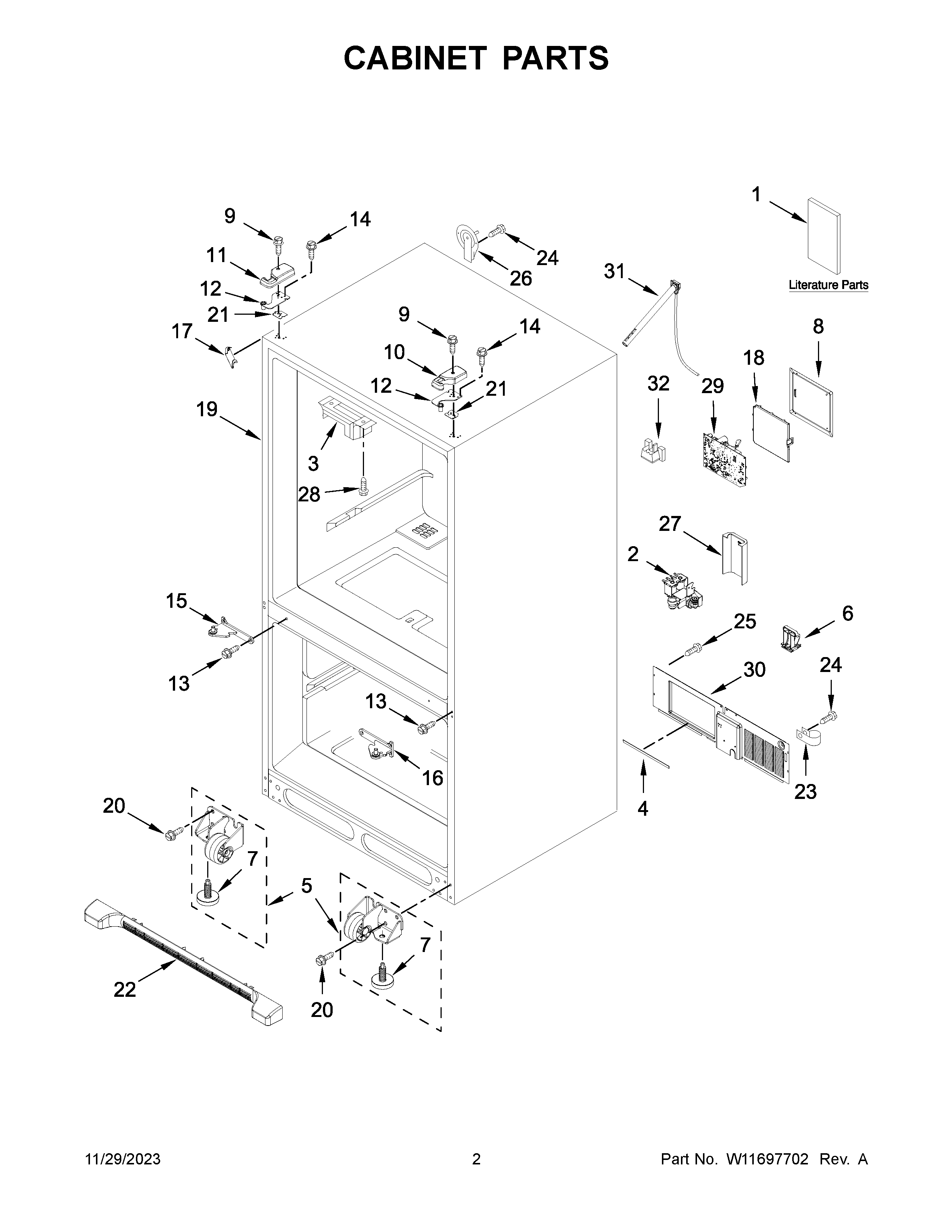

WRF540CWHB09 02 – CABINET PARTS

WRF540CWHB09 02 – CABINET PARTS

Written by

in

WRF540CWHB09 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1OWNERS MANUAL
2W11524655 Whirlpool Refrigerator Valve
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6W10528513 Whirlpool Tube Clamp
7WPW10141622 Whirlpool Leveler
812961602 Whirlpool Refrigerator Wire Cover
9WP8281196 Whirlpool Screw
10WP67005956 Whirlpool Refrigerator Cover
11W10337647 Whirlpool Refrigerator Cover
12AW11592374 Whirlpool Refrigerator Top Door Hinge
12W11592375 Whirlpool Door Hinge
13W11573362 Whirlpool Screw Assembly
14WP489349 Whirlpool Refrigerator Screw
15W10918166 Whirlpool Refrigerator Door Hinge
16W10918168 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18LID, HV BOX
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23W11456069 Whirlpool Refrigerator Clamp
24WP98165 Whirlpool Screw
25SCREW
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11181718 Whirlpool Refrigerator Water Tube
32W11686793 Whirlpool Block
