WRF540CWHV08 05 – REFRIGERATOR DOOR PARTS

WRF540CWHV08 05 – REFRIGERATOR DOOR PARTS

Written by

in

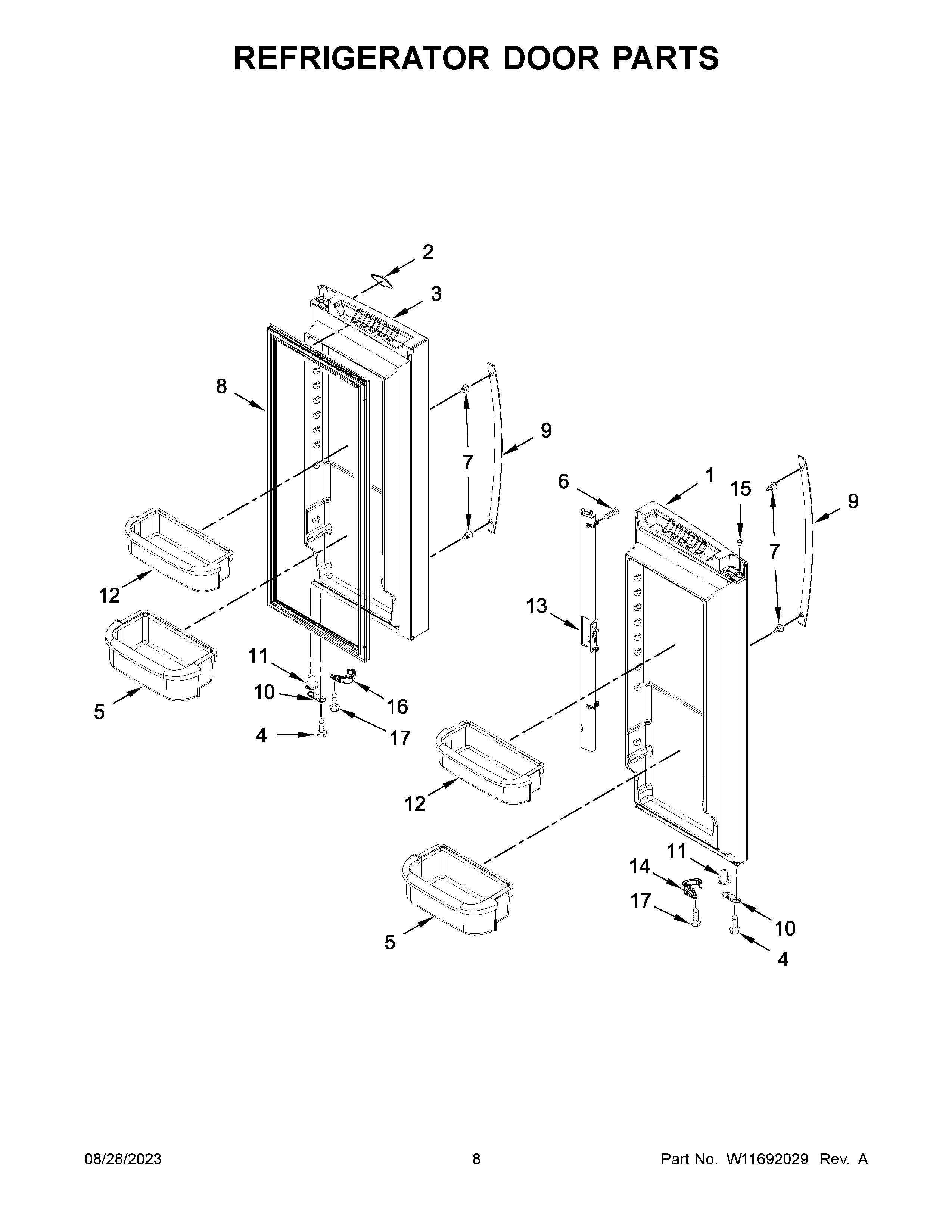

WRF540CWHV08 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11661559 Whirlpool FIP Door
2W11223753 Whirlpool Refrigerator Nameplate
3W10919633 Whirlpool Refrigerator Door Assembly
4WP98165 Whirlpool Screw
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8GASKET-FIP
9W11125624 Whirlpool Door Handle
10W11708403 Whirlpool Door Stop
11WP67003639 Whirlpool Refrigerator Closer
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13WP12722803B Whirlpool Door Guide
14W10918170 Whirlpool Refrigerator Closer
1512996601 Whirlpool Refrigerator Bushing Clip
16W10918171 Whirlpool Refrigerator Closer
17WP67006908 Whirlpool Refrigerator Screw
