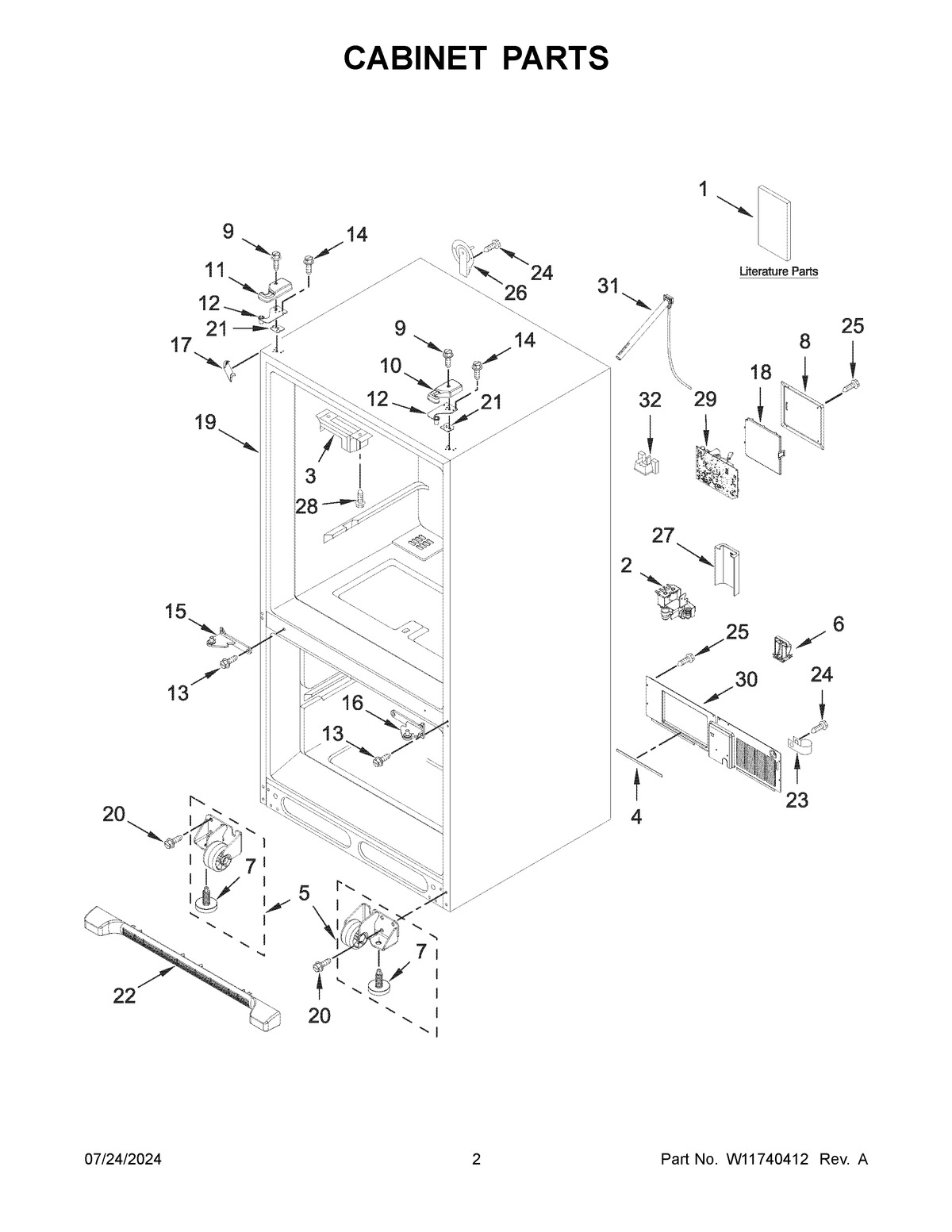

WRF540CWHV10 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	OWNERS MANUAL
1A	TECH SHEET
2	W11524655 Whirlpool Refrigerator Valve
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
5A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
6	W10528513 Whirlpool Tube Clamp
7	WPW10141622 Whirlpool Leveler
8	12961602 Whirlpool Refrigerator Wire Cover
9	WP8281196 Whirlpool Screw
10	WP67005956 Whirlpool Refrigerator Cover
11	W10337647 Whirlpool Refrigerator Cover
12	W11592375 Whirlpool Door Hinge
12A	W11592374 Whirlpool Refrigerator Top Door Hinge
13	W11573362 Whirlpool Screw Assembly
14	WP489349 Whirlpool Refrigerator Screw
15	W11642008 Whirlpool Door Hinge
16	W11642010 Whirlpool Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10296541 Whirlpool Refrigerator Wire Cover
19	CABINET (NOT A SERVICEABLE PART)
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W11456069 Whirlpool Refrigerator Clamp
24	WP98165 Whirlpool Screw
25	W11686675 Whirlpool Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W11693756 Whirlpool Screw Assembly
29	WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
30	WPW10211855 Whirlpool Refrigerator Back Cover
31	W11181718 Whirlpool Refrigerator Water Tube
32	W11686793 Whirlpool Block
