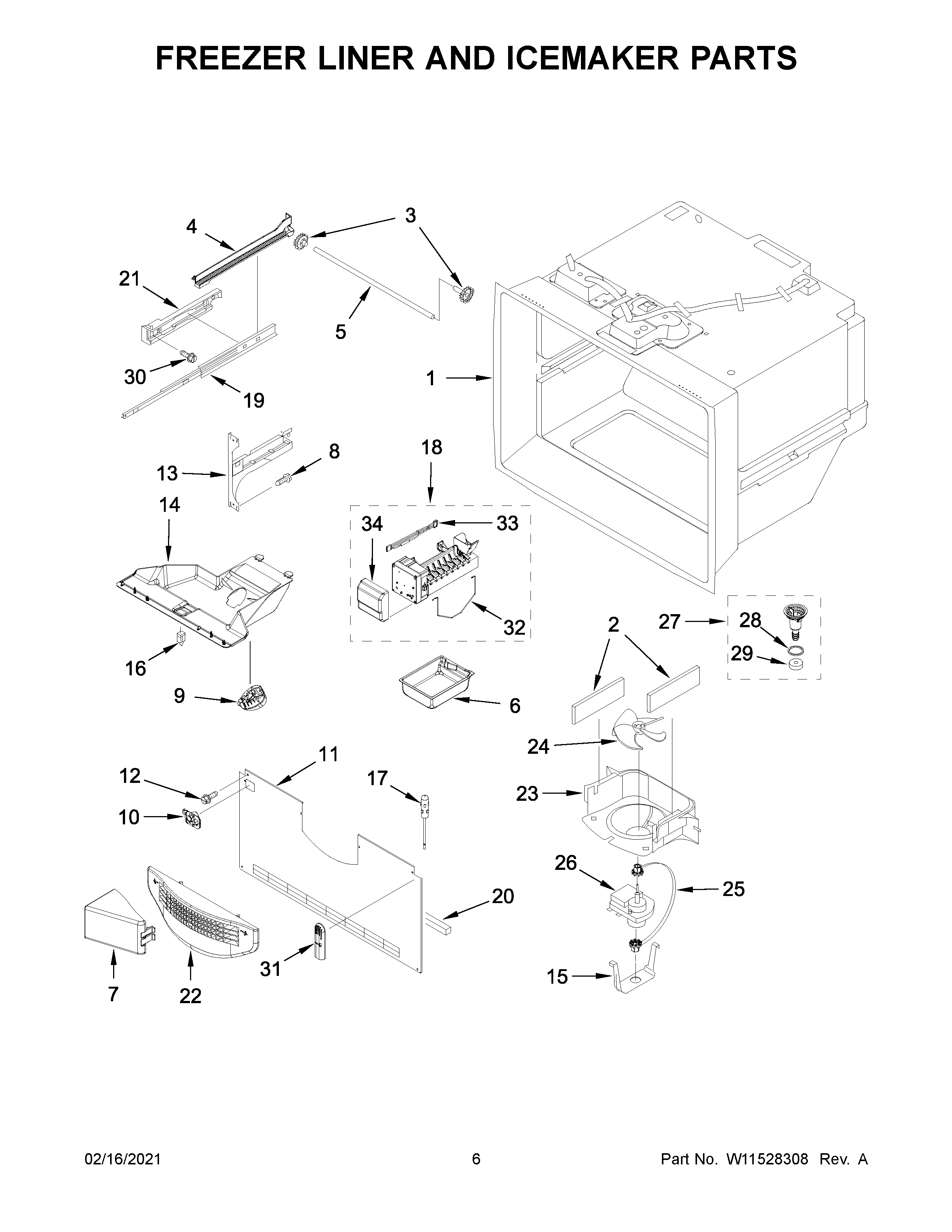

WRF540CWHW02 04 – FREEZER LINER AND ICEMAKER PARTS

WRF540CWHW02 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

WRF540CWHW02 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4AW10516604 Whirlpool Refrigerator Rail
4W10516605 Whirlpool Refrigerator Rail
5W11028221 Whirlpool Refrigerator Shaft
6WPW10171529 Whirlpool Refrigerator Ice Pan
7W10157765 Whirlpool Refrigerator Deflector
8WP98165 Whirlpool Screw
9MODULE
10W11448709 Whirlpool Refrigerator Bracket
11W11727809 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13AWPW10330995 Whirlpool Refrigerator Bracket
13WPW10330994 Whirlpool Refrigerator Bracket
14WPW10277025 Whirlpool Refrigerator Housing
15CLIP, EVAPORATOR MOTOR
16W11396033 Whirlpool Refrigerator Rocker Switch
17W10316760 Whirlpool Thermistor Kit
18W10884390 Whirlpool Refrigerator Ice Maker Assembly
19W11658403 Whirlpool Slide
20W11159728 Whirlpool Refrigerator Gasket
21AWPW10284693 Whirlpool Mounting Bracket
21WPW10284692 Whirlpool Refrigerator Bracket
22WPW10175909 Whirlpool Grille Assembly
23WPW10167023 Whirlpool Refrigerator Shroud
24WP2169142 Whirlpool Fan Blade
25W11690160 Whirlpool Grommet
26MOTOR-EVAP
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30WP489474 Whirlpool Refrigerator Screw
31WP67003924 Whirlpool Refrigerator Cover
32W11285509 Whirlpool Refrigerator Shut-Off Arm
33W10886932 Whirlpool Refrigerator Wire Harness
34WPW10289690 Whirlpool Ice Maker Cover
