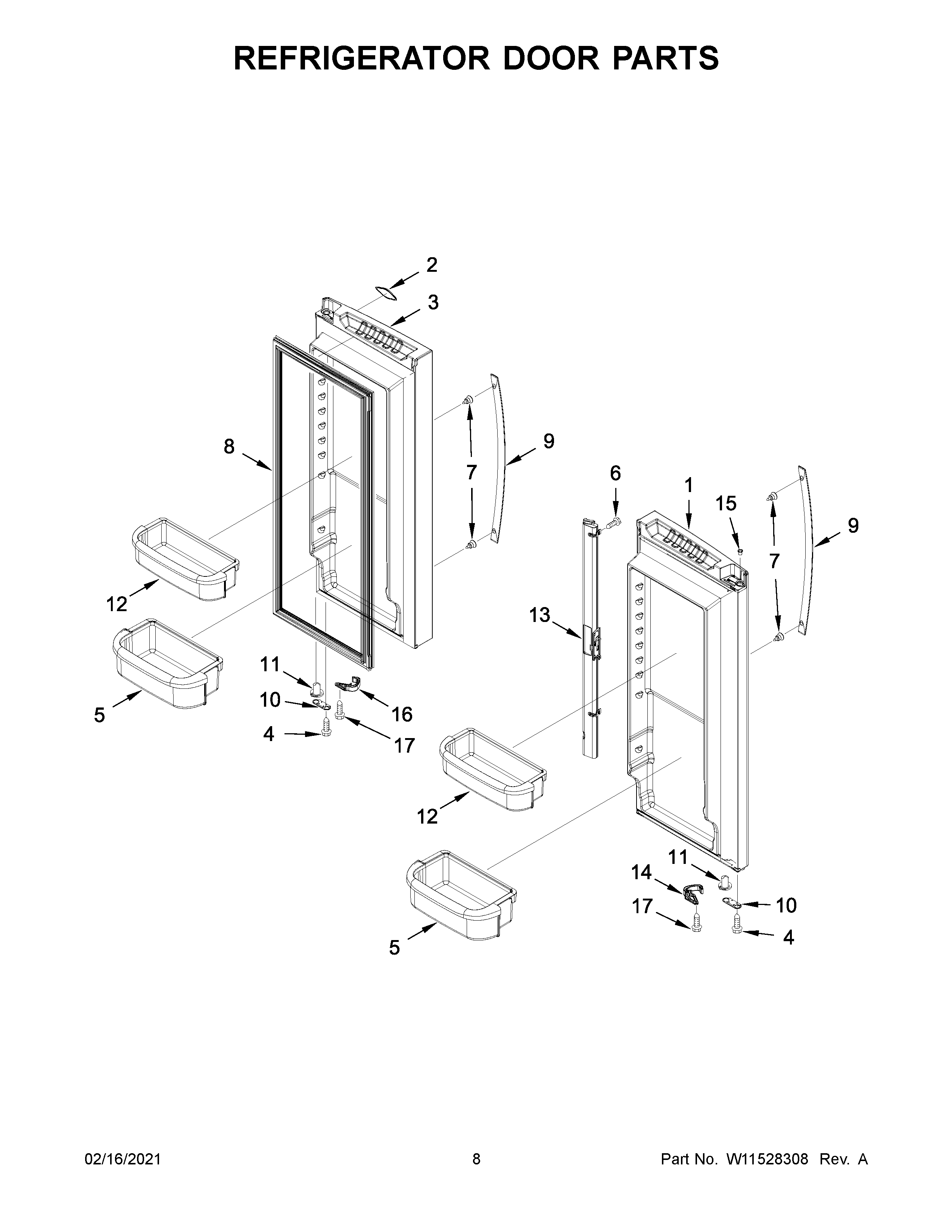

WRF540CWHW02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1A13107888BQ Whirlpool Refrigerator Black Foam In Place Doorack
113107888WQ Whirlpool Refrigerator DOR FIP WH
2W11223753 Whirlpool Refrigerator Nameplate
3A13107887BQ Whirlpool Refrigerator Black Foam In Place Door
313107887WQ Whirlpool Refrigerator FIP Door White
4WP98165 Whirlpool Screw
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8AGASKET-FIP
8W10830189 Whirlpool Refrigerator Door Gasket
9AW11123097 Whirlpool Refrigerator Handle
9W11127179 Whirlpool Refrigerator Handle
10AW11708403 Whirlpool Door Stop
1012968202W Whirlpool Refrigerator Door Stop
11WP67003638 Whirlpool Closing Cam
11AWP67003639 Whirlpool Refrigerator Closer
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13AWP12722803B Whirlpool Door Guide
13RAIL-MULLN WHITE
14AW10918170 Whirlpool Refrigerator Closer
14W10918118 Whirlpool Refrigerator Door Closer
1512996601 Whirlpool Refrigerator Bushing Clip
16AW10918171 Whirlpool Refrigerator Closer
16W10918120 Whirlpool Refrigerator Closer
17WP67006908 Whirlpool Refrigerator Screw
