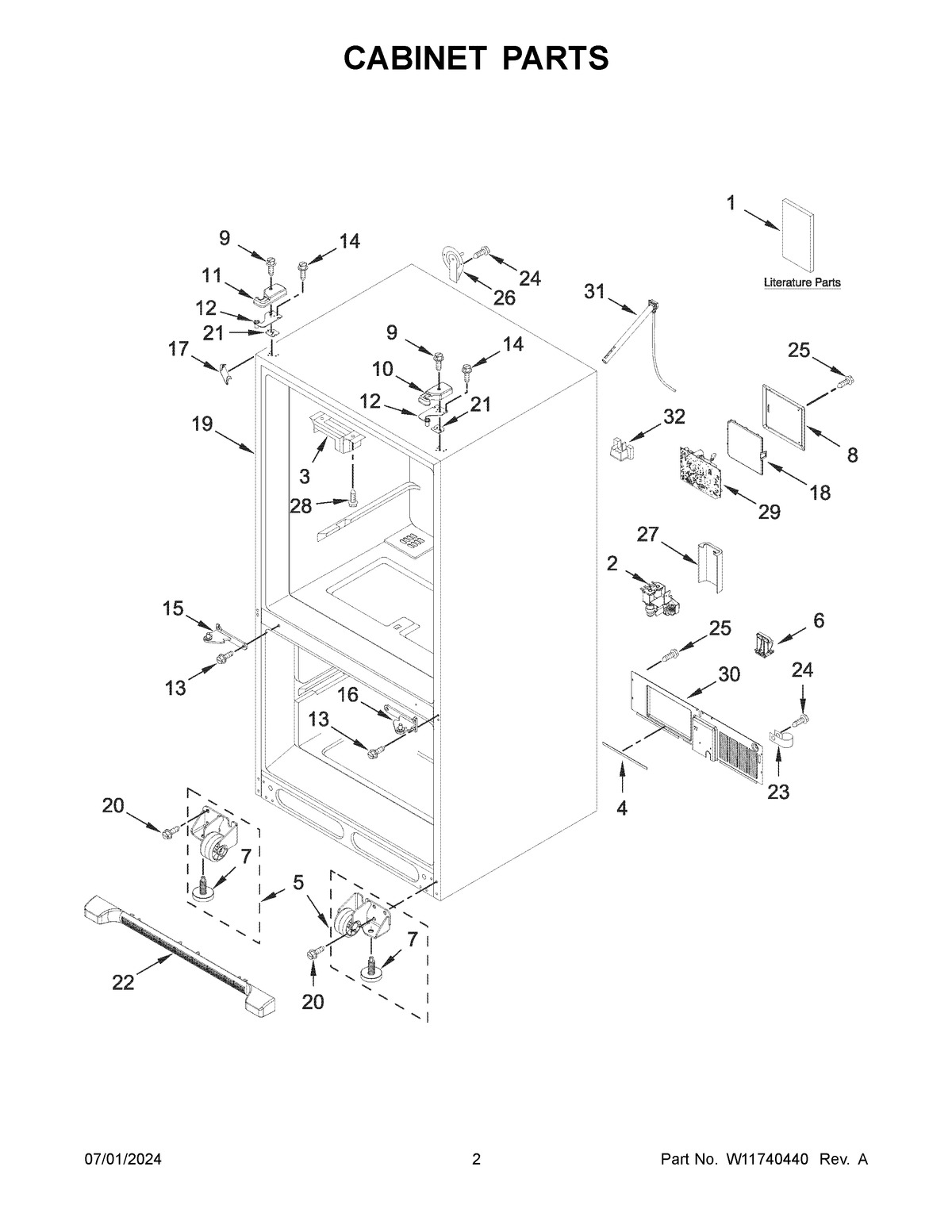

WRF540CWHW10 02 – CABINET PARTS

WRF540CWHW10 02 – CABINET PARTS

Written by

in

WRF540CWHW10 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1OWNERS MANUAL
2W11524655 Whirlpool Refrigerator Valve
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
6W10528513 Whirlpool Tube Clamp
7WPW10141622 Whirlpool Leveler
812961602 Whirlpool Refrigerator Wire Cover
9WP8281196 Whirlpool Screw
1067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
11WPW10337634 Whirlpool Refrigerator Cover
12W11592375 Whirlpool Door Hinge
12AW11592374 Whirlpool Refrigerator Top Door Hinge
13W11573362 Whirlpool Screw Assembly
14WP489349 Whirlpool Refrigerator Screw
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
1712587703W Whirlpool Refrigerator Cover
18W10296541 Whirlpool Refrigerator Wire Cover
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
23W11456069 Whirlpool Refrigerator Clamp
24WP98165 Whirlpool Screw
25W11686675 Whirlpool Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11181718 Whirlpool Refrigerator Water Tube
32W11686793 Whirlpool Block
