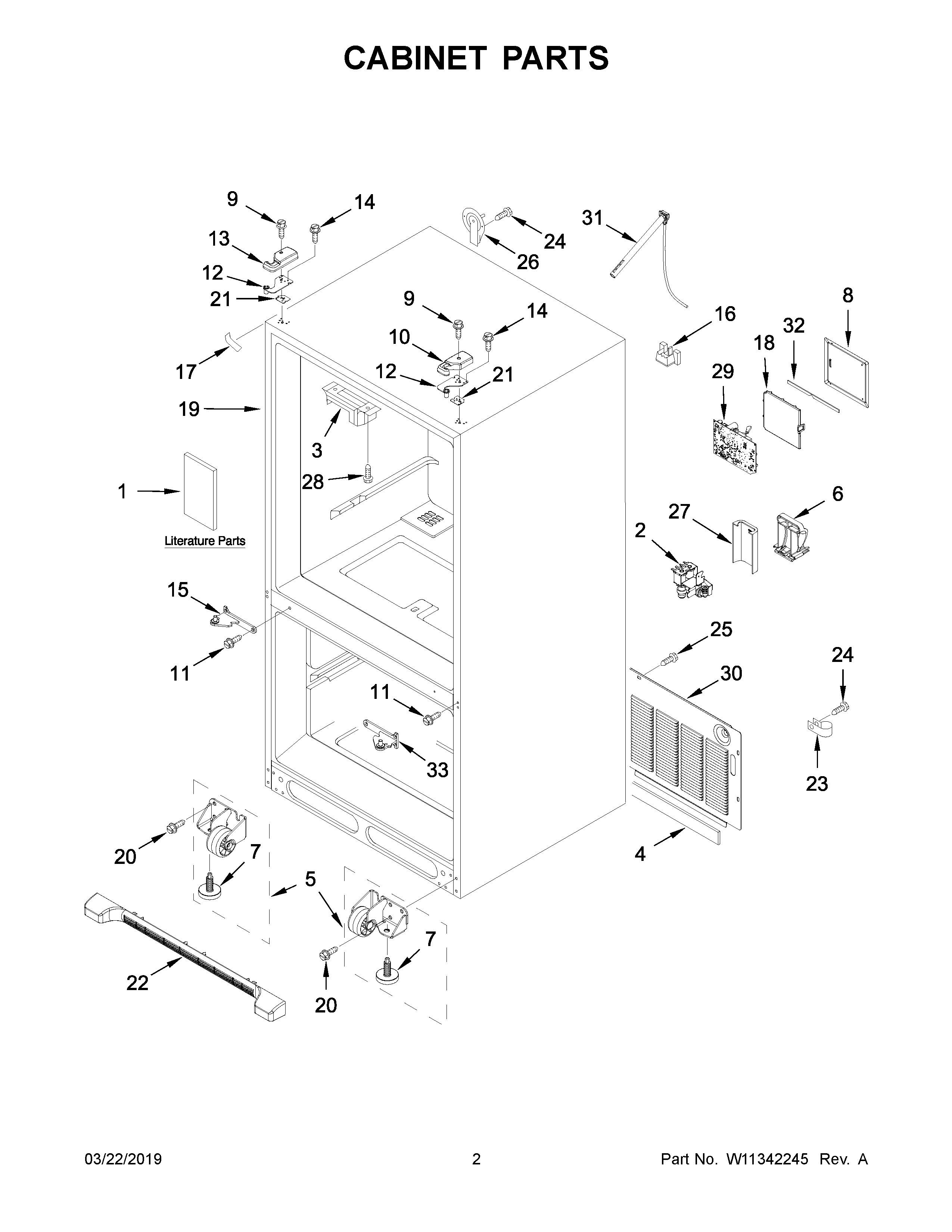

WRF540CWHZ02 02 – CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET (FRENCH)
1ATECH SHEET (ENGLISH)
2VALVE-WATER INLET REFR
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5AWPW10515762 Whirlpool Refrigerator Cabinet Roller
6W10528513 Whirlpool Tube Clamp
7WPW10141622 Whirlpool Leveler
812961602 Whirlpool Refrigerator Wire Cover
9WP8281196 Whirlpool Screw
10WPW10191117 Whirlpool Refrigerator Cover
11W11573362 Whirlpool Screw Assembly
12W11592375 Whirlpool Door Hinge
12AW11592374 Whirlpool Refrigerator Top Door Hinge
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10917991 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
17WP12587703AP Whirlpool Refrigerator Filler
18W11226688 Whirlpool Refrigerator Cover
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W11456069 Whirlpool Refrigerator Clamp
24WP98165 Whirlpool Screw
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W11693756 Whirlpool Screw Assembly
29WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11181718 Whirlpool Refrigerator Water Tube
32GASKET, HV BOX
33HINGE-DOOR
