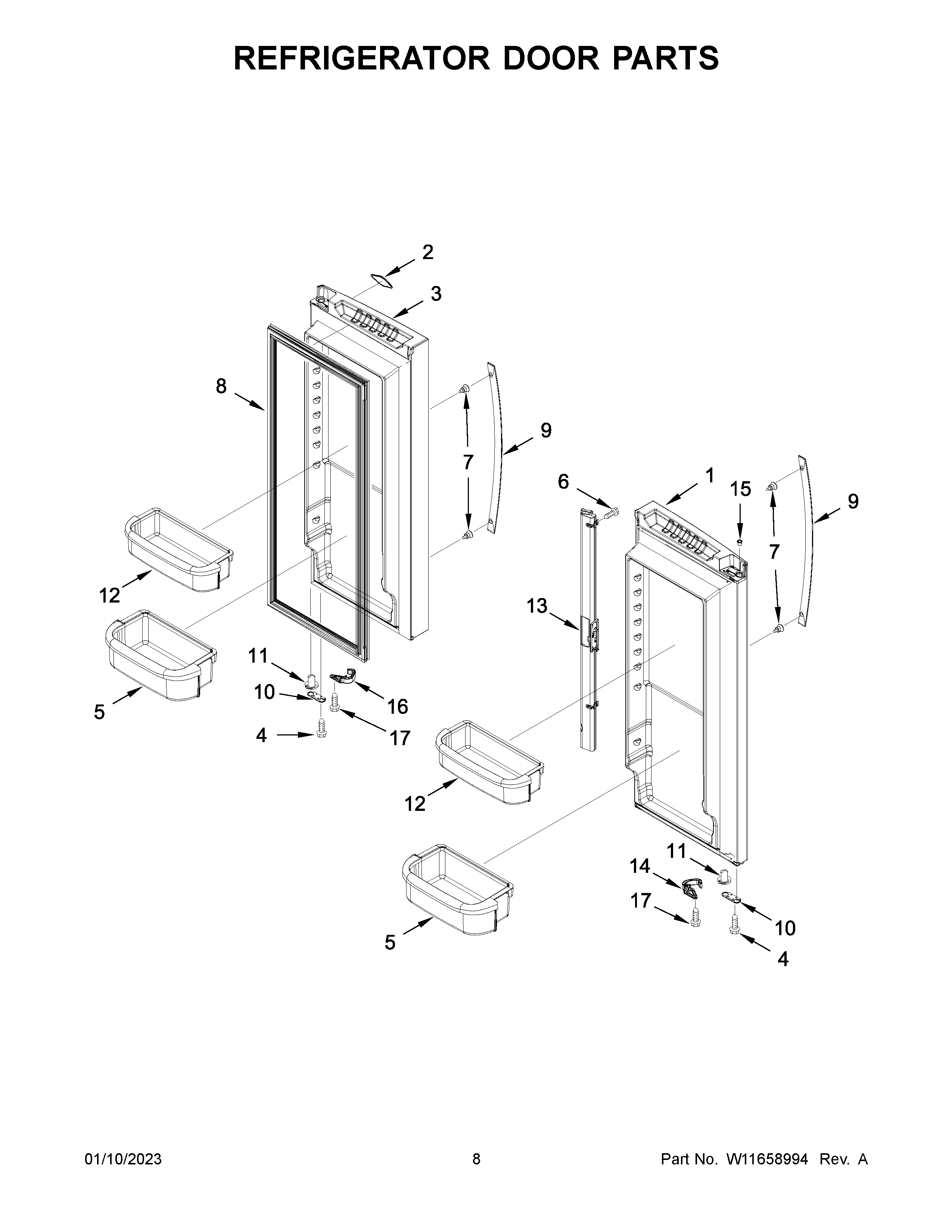

WRF540CWHZ09 05 – REFRIGERATOR DOOR PARTS

WRF540CWHZ09 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF540CWHZ09 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11661563 Whirlpool Door Fip
2W11223753 Whirlpool Refrigerator Nameplate
3W11435333 Whirlpool Refrigerator Door Assembly
4WP98165 Whirlpool Screw
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7W11449276 Whirlpool Handle Support
8GASKET-FIP
9HANDLE-REFRIGERATOR SS
10W11703060 Whirlpool Door Stop
11WP12028505AP Whirlpool Closing Cam
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13WP12722803AP Whirlpool Refrigerator Mullion Rail
14W10918008 Whirlpool Refrigerator Closer
1512996601 Whirlpool Refrigerator Bushing Clip
16W10918010 Whirlpool Refrigerator Closer
17WP67006908 Whirlpool Refrigerator Screw
