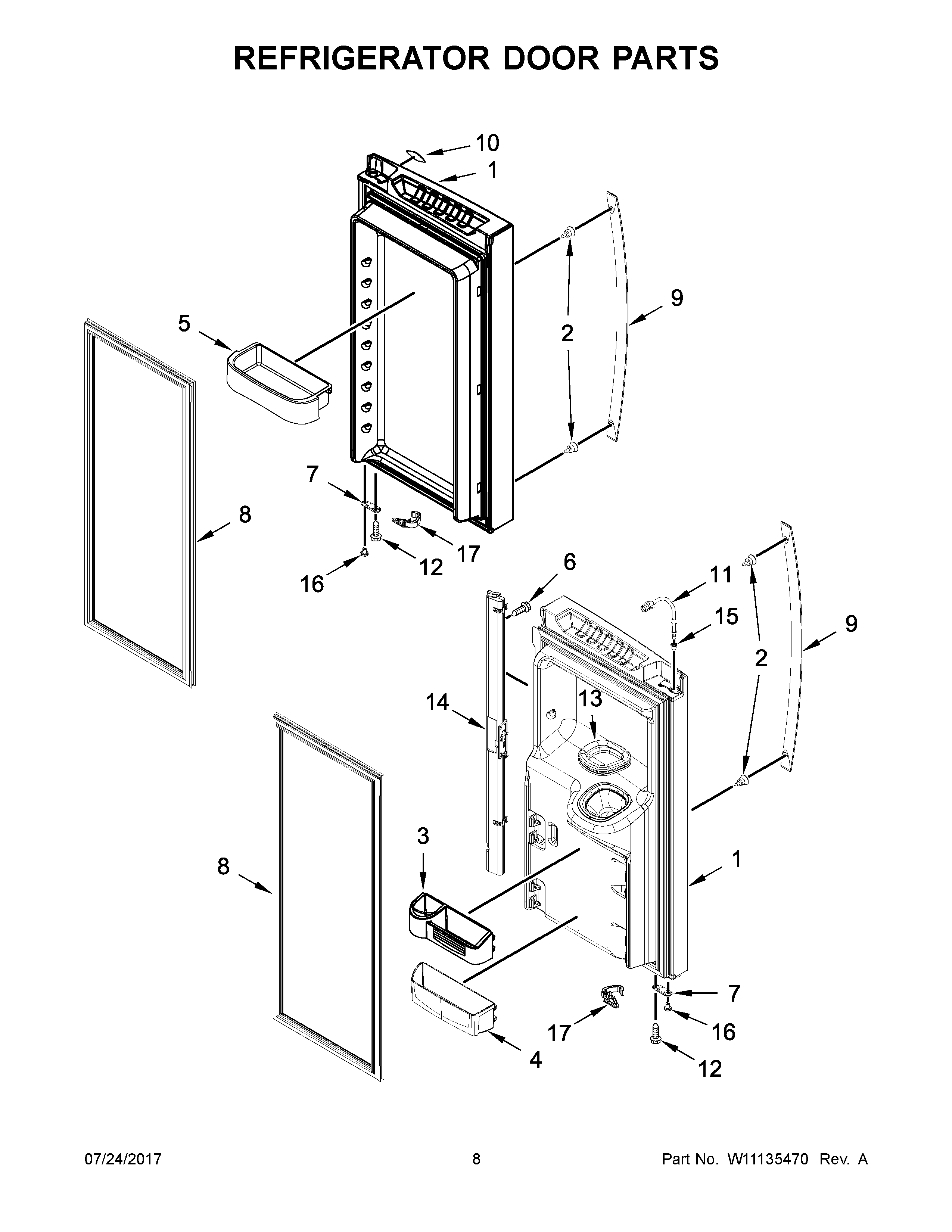

WRF550CDHZ01 05 – REFRIGERATOR DOOR PARTS

WRF550CDHZ01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF550CDHZ01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W11307265 Whirlpool Refrigerator Door Assembly
2W10450032 Whirlpool Refrigerator Mat
3W10450033 Whirlpool Refrigerator Mat
4WPW10661886 Whirlpool Refrigerator Door Handle Screw
5WPW10451500 Whirlpool Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7GASKET-FIP GRAY
8HANDLE-REFRIGERATOR SS
9W10275942 Whirlpool Refrigerator Water Tube
10WPW10451501 Whirlpool Refrigerator Cantilever Bin
11WPW10287601 Whirlpool Seal
12WP12722813AP Whirlpool Refrigerator Mullion Rail
13WP12028505AP Whirlpool Closing Cam
14W11703060 Whirlpool Door Stop
1512996601 Whirlpool Refrigerator Bushing Clip
16WP98165 Whirlpool Screw
17W11223753 Whirlpool Refrigerator Nameplate
18WP12977502 Whirlpool Refrigerator Bin
19WP12977402 Whirlpool Refrigerator Bin
20W10918008 Whirlpool Refrigerator Closer
21W10918010 Whirlpool Refrigerator Closer
22W11307269 Whirlpool Refrigerator Door Assembly
