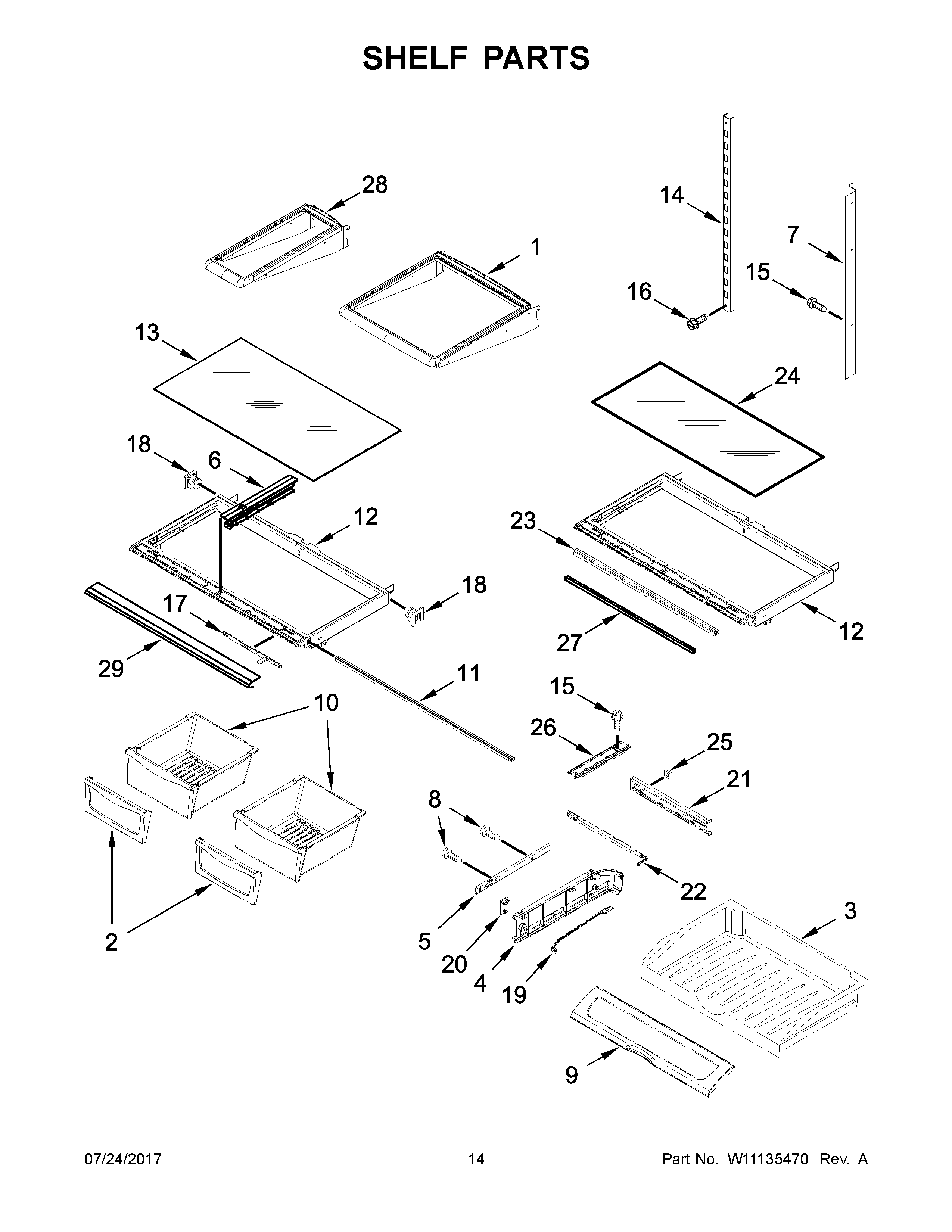

WRF550CDHZ01 08 – SHELF PARTS

WRF550CDHZ01 08 – SHELF PARTS

Written by

in

WRF550CDHZ01 08 – SHELF PARTS

Products

PositionProduct
1W11125512 Whirlpool Refrigerator Glass Shelf
2TRIM, CRISPER
3W10187463 Whirlpool Refrigerator Shelf Assembly
4W10528933 Whirlpool Refrigerator Shelf Trim
5WP67002321 Whirlpool Refrigerator Divider Panel
6WP67001719 Whirlpool Refrigerator Track
767002329 Whirlpool Refrigerator Pantry Gasket
812656202 Whirlpool Refrigerator Housing
9WP12463912 Whirlpool Refrigerator Glass Shelf
10WP67003793 Whirlpool Refrigerator Temperature Slide
11WPW10235370 Whirlpool Refrigerator Glide
13AWP12656018 Whirlpool Drawer Support
13WP12656105 Whirlpool Drawer Support
14WP67002659 Whirlpool Crisper Pan
15WP98165 Whirlpool Screw
16ALADDER, SIDE (RIGHT HAND)
16W10251966 Whirlpool Refrigerator Ladder
17WP67006185 Whirlpool Refrigerator Crisper Frame
18WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
19W10273464 Whirlpool Refrigerator Ladder
20W10832723 Whirlpool Refrigerator Support
2167006425 Whirlpool Refrigerator Screw
22WP67005923 Whirlpool Refrigerator Front Cover
23WP67006415 Whirlpool Refrigerator Screw
24SLIDE
2567003794 Whirlpool Refrigerator Temperature Control Bar
26W11490183 Whirlpool Refrigerator Utility Pan
27W11498983 Whirlpool Refrigerator Knob
28W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
