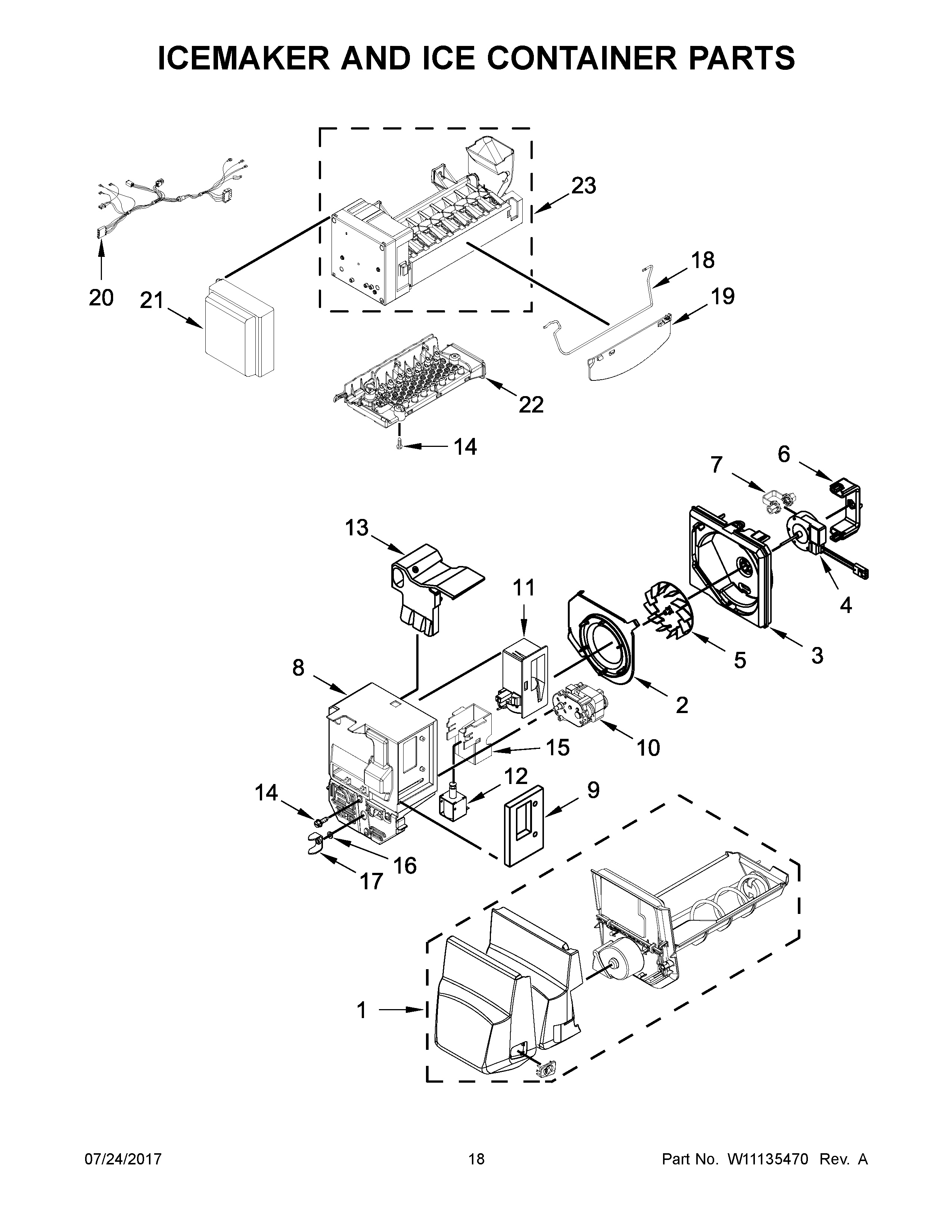

WRF550CDHZ01 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	WPW10324088 Whirlpool Refrigerator Ice Bin
2	W10121282 Whirlpool Refrigerator Insert
3	W10121281 Whirlpool Refrigerator Shroud
4	WPW10162697 Whirlpool Refrigerator Motor
5	WPW10123444K Whirlpool Refrigerator Wheel
6	W10165970 Whirlpool Refrigerator Clip
7	GROMMET, FAN MOTOR
8	W10356558 Whirlpool Refrigerator Divider
9	WP67006341 Whirlpool Refrigerator Gasket
10	WPW10317991 Whirlpool Refrigerator Motor
11	WPW10127427 Whirlpool Refrigerator Control
12	WP63052-2 Whirlpool Refrigerator Impeller
13	W11676504 Whirlpool Insert Assembly
14	67006425 Whirlpool Refrigerator Screw
15	W11378860 Whirlpool Refrigerator Spacer
16	WPW10300024 Whirlpool Ice Maker
17	WPW10312691 Whirlpool Refrigerator Air Baffle
18	WPW10351019 Whirlpool Refrigerator Extension
19	W11226459 Whirlpool Refrigerator Shut Arm
20	WPW10121444 Whirlpool Refrigerator Front Cover
21	W10312698 Whirlpool Refrigerator Wire Harness
