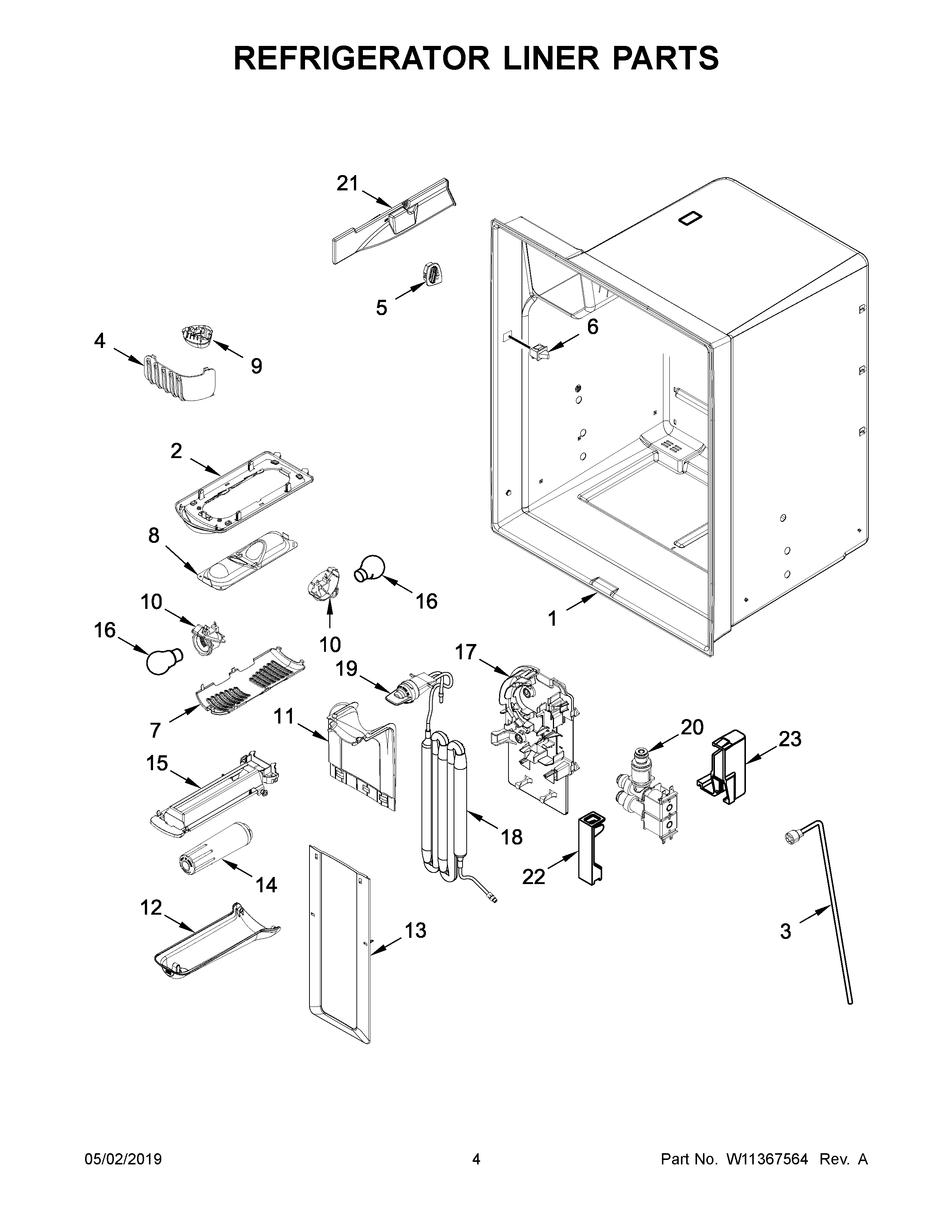

WRF550CDHZ02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10464777 Whirlpool Refrigerator Housing
3	WPW10444032 Whirlpool Refrigerator Waterline
4	12921801 Whirlpool Refrigerator Light Cover
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	COVER, LIGHT
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	W11447232 Whirlpool Refrigerator Socket
11	12960101 Whirlpool Refrigerator Cover
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
16	W11107911 Whirlpool Refrigerator Light Bulb
17	WPW10334463 Whirlpool Refrigerator Bracket
18	RESERVOIR
19	W11395888 Whirlpool Refrigerator Bypass Filter Cap
20	WPW10312696 Whirlpool Water Inlet Valve
21	13033601 Whirlpool Refrigerator Wire Cover
22	W10118194 Whirlpool Refrigerator Cover
23	W10118193 Whirlpool Refrigerator Cover
