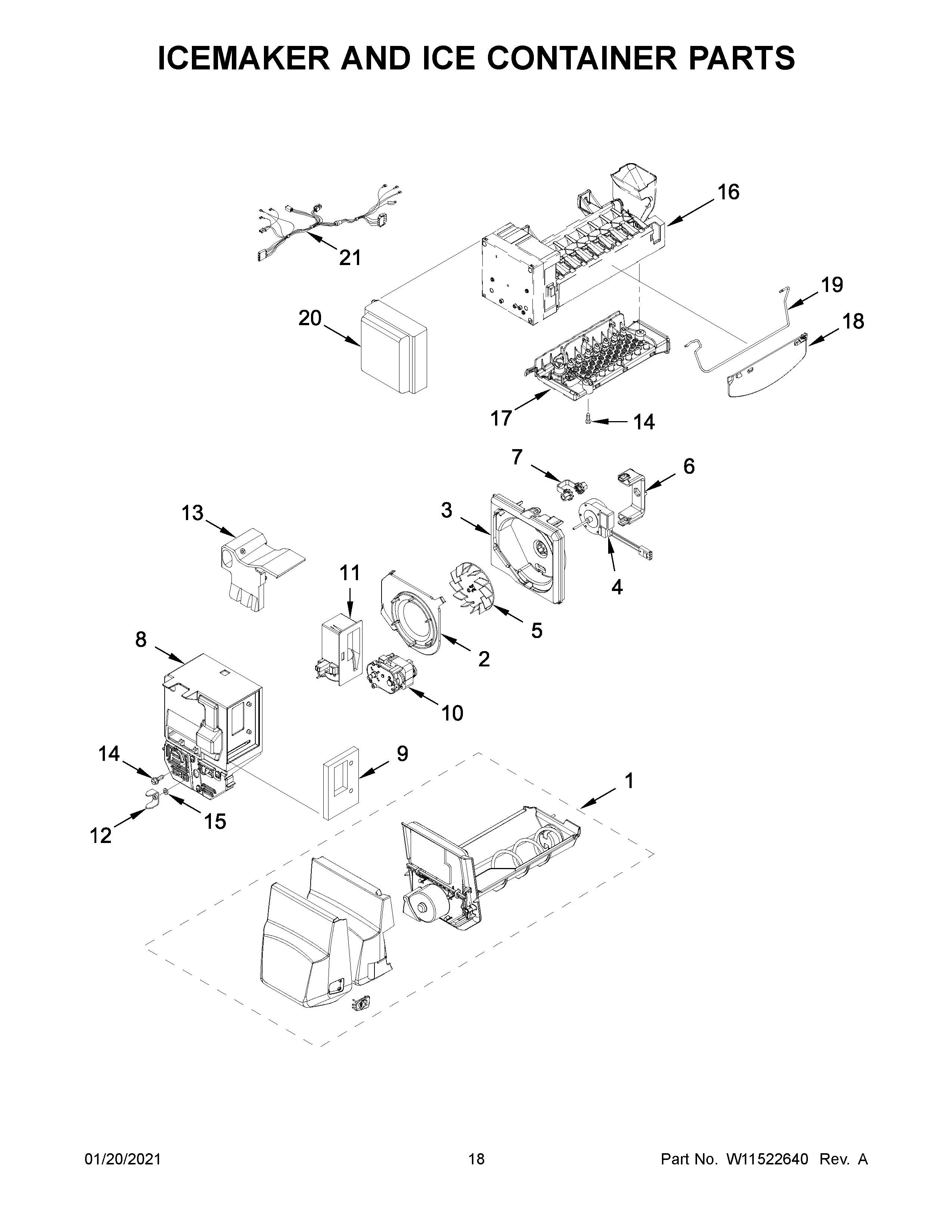

WRF550CDHZ04 10 – ICEMAKER AND ICE CONTAINER PARTS

WRF550CDHZ04 10 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

WRF550CDHZ04 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10324088 Whirlpool Refrigerator Ice Bin
2W10121282 Whirlpool Refrigerator Insert
3W10121281 Whirlpool Refrigerator Shroud
4WPW10162697 Whirlpool Refrigerator Motor
5WPW10123444K Whirlpool Refrigerator Wheel
6W10165970 Whirlpool Refrigerator Clip
7GROMMET, FAN MOTOR
8W10356558 Whirlpool Refrigerator Divider
9WP67006341 Whirlpool Refrigerator Gasket
10W11671282 Whirlpool Refrigerator Ice Auger Motor
11WPW10127427 Whirlpool Refrigerator Control
12WP63052-2 Whirlpool Refrigerator Impeller
13W11676504 Whirlpool Insert Assembly
1467006425 Whirlpool Refrigerator Screw
15W11378860 Whirlpool Refrigerator Spacer
16WPW10300024 Whirlpool Ice Maker
17WPW10312691 Whirlpool Refrigerator Air Baffle
18WPW10351019 Whirlpool Refrigerator Extension
19W11226459 Whirlpool Refrigerator Shut Arm
20WPW10121444 Whirlpool Refrigerator Front Cover
21W11254853 Whirlpool Refrigerator Wire Harness
