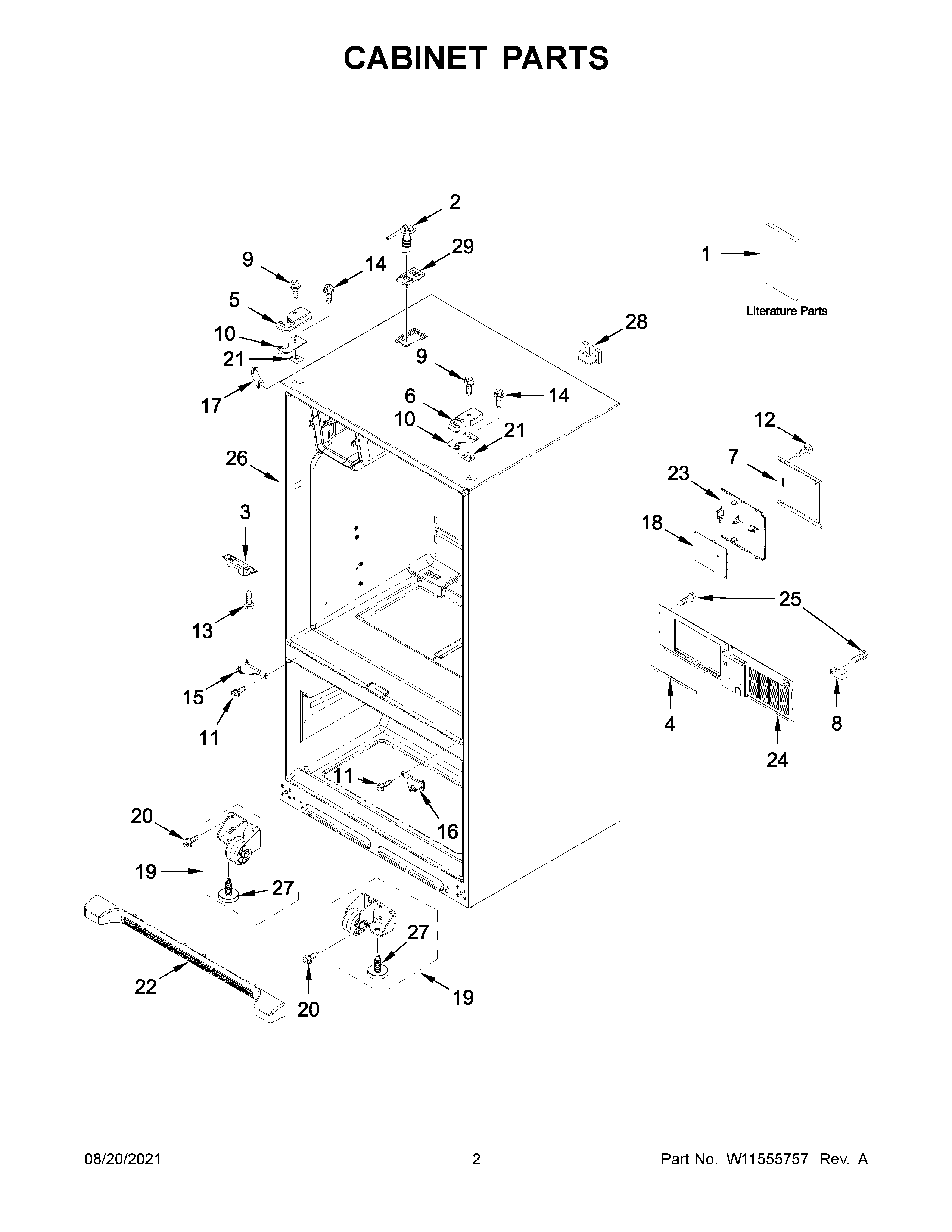

WRF550CDHZ06 02 – CABINET PARTS

WRF550CDHZ06 02 – CABINET PARTS

Written by

in

WRF550CDHZ06 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1BENERGY GUIDE
1AUSE AND CARE GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5WPW10337648 Whirlpool Refrigerator Cover
6WPW10191117 Whirlpool Refrigerator Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11686675 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP489349 Whirlpool Refrigerator Screw
15W10917991 Whirlpool Refrigerator Door Hinge
16HINGE-DOOR
17WP12587703AP Whirlpool Refrigerator Filler
18W11556915-includeCORE Whirlpool W11556915 Refrigerator Electronic Control Board + Core
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10296536 Whirlpool Refrigerator Cover
24WPW10270394 Whirlpool Refrigerator Back Cover
25SCREW
26CABINET (NOT A SERVICEABLE PART)
27WPW10141622 Whirlpool Leveler
28W11686793 Whirlpool Block
29W10191141 Whirlpool Refrigerator Tube Cover
