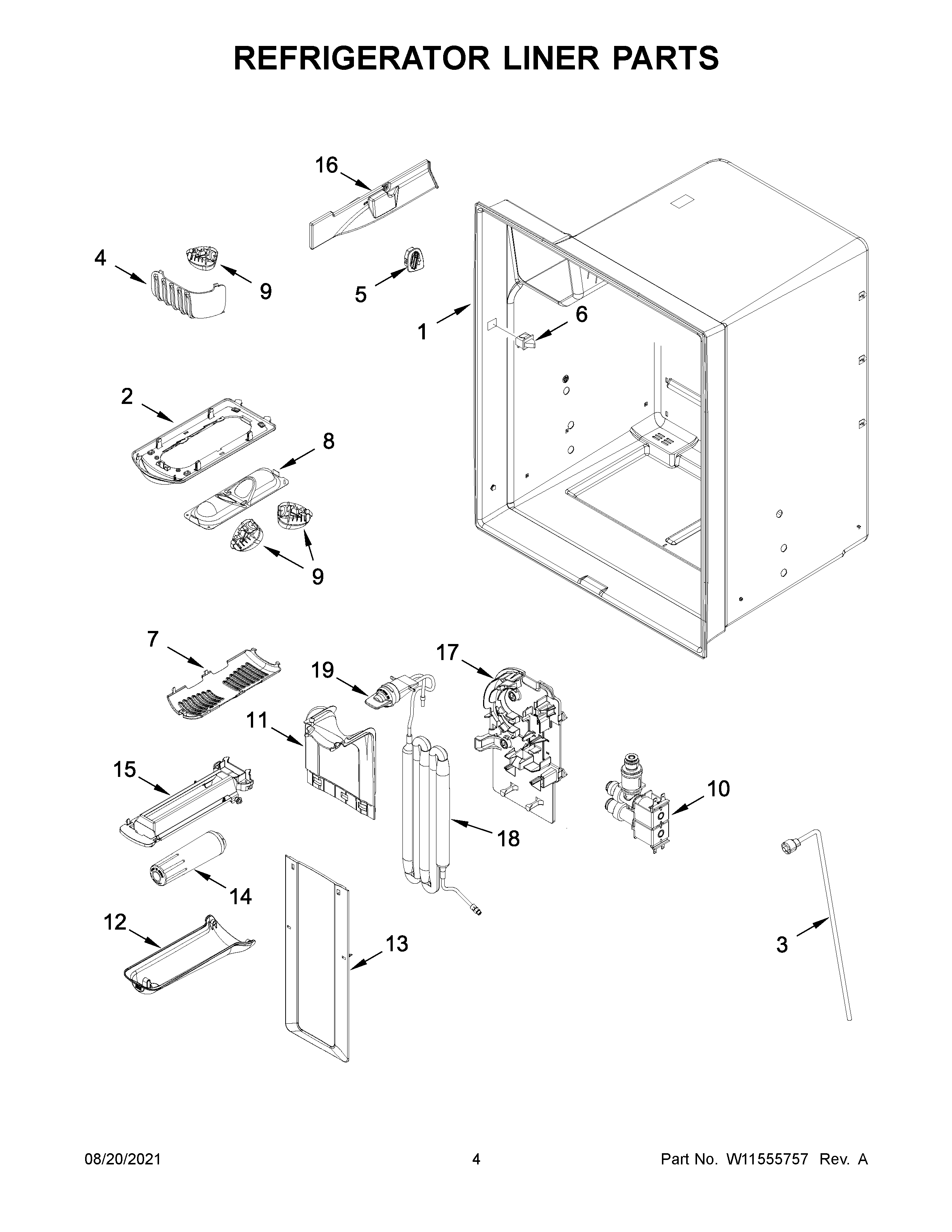

WRF550CDHZ06 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10391147 Whirlpool Refrigerator Wire Harness
2	W10464777 Whirlpool Refrigerator Housing
3	WATERLINE, CABINET (W/NUT)
4	12921801 Whirlpool Refrigerator Light Cover
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	COVER, LIGHT
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	VALVE
11	12960101 Whirlpool Refrigerator Cover
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
16	13033601 Whirlpool Refrigerator Wire Cover
17	WPW10334463 Whirlpool Refrigerator Bracket
18	RESERVOIR
19	W11395888 Whirlpool Refrigerator Bypass Filter Cap
