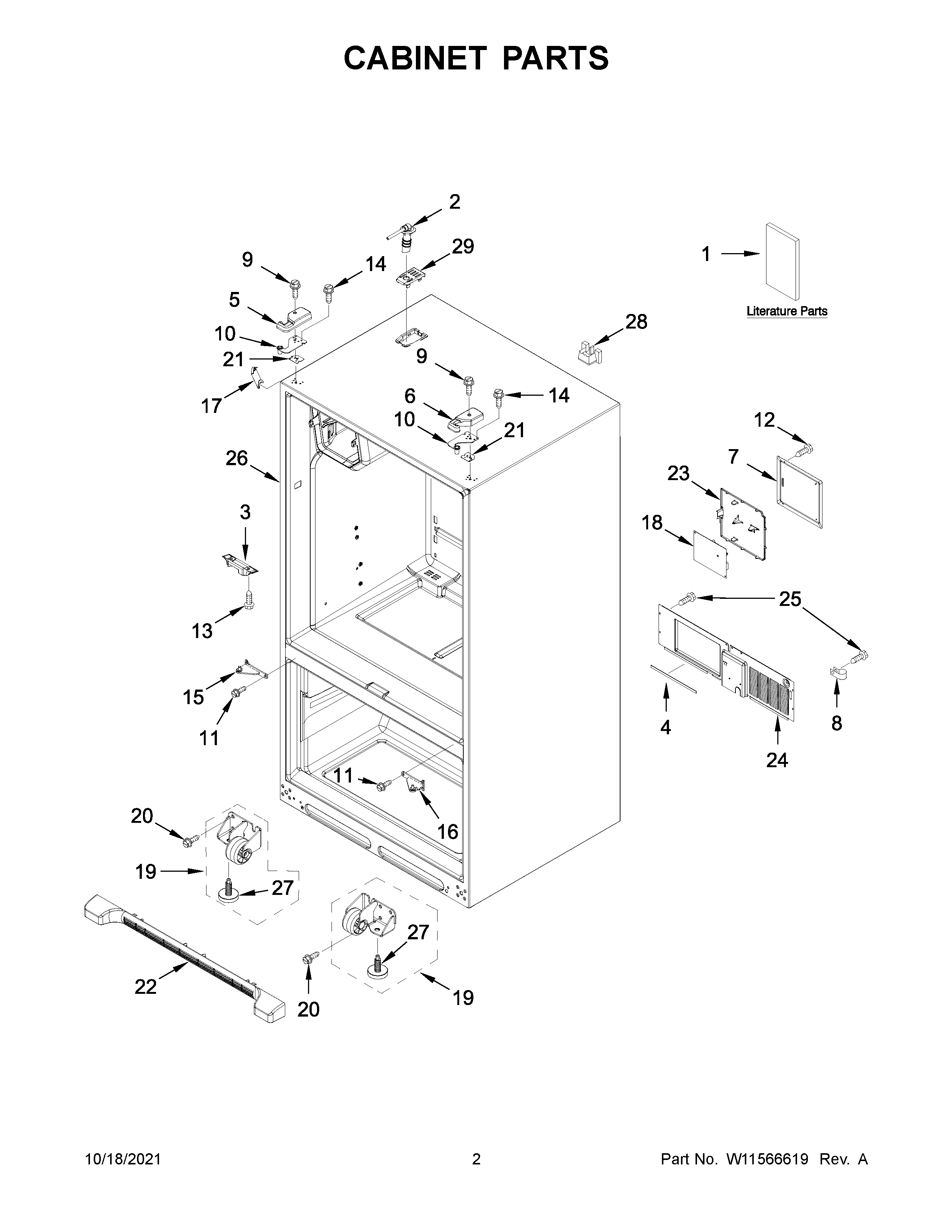

WRF550CDHZ07 02 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1B	ENERGY GUIDE
1A	USE AND CARE GUIDE
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5	WPW10337648 Whirlpool Refrigerator Cover
6	WPW10191117 Whirlpool Refrigerator Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W11686675 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	WP489349 Whirlpool Refrigerator Screw
15	W10917991 Whirlpool Refrigerator Door Hinge
16	HINGE-DOOR
17	WP12587703AP Whirlpool Refrigerator Filler
18	W11556915-includeCORE Whirlpool W11556915 Refrigerator Electronic Control Board + Core
19A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23	W10296536 Whirlpool Refrigerator Cover
24	WPW10270394 Whirlpool Refrigerator Back Cover
25	SCREW
26	CABINET (NOT A SERVICEABLE PART)
27	WPW10141622 Whirlpool Leveler
28	W11686793 Whirlpool Block
29	W10191141 Whirlpool Refrigerator Tube Cover
