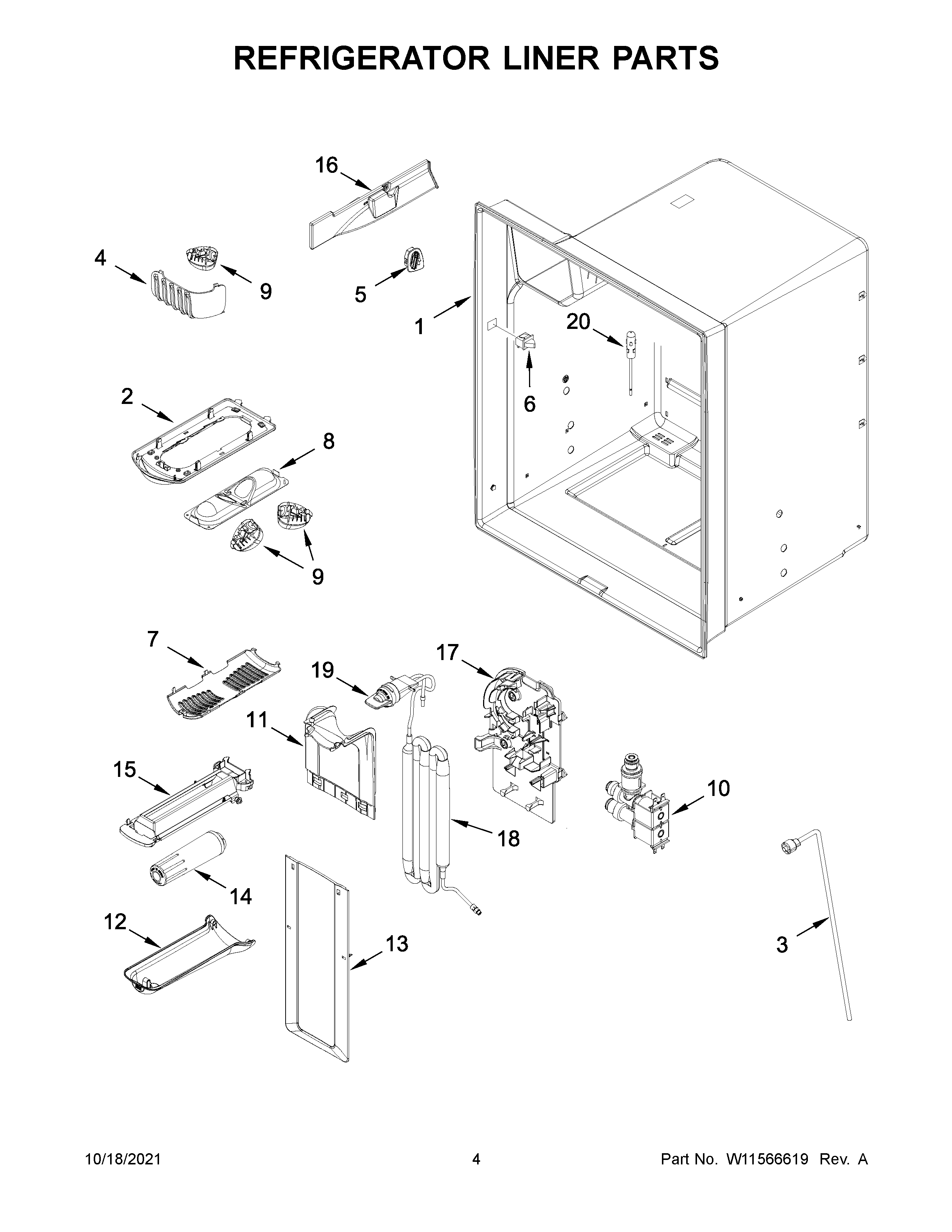

WRF550CDHZ07 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10391147 Whirlpool Refrigerator Wire Harness
2	W10464777 Whirlpool Refrigerator Housing
3	WATERLINE, CABINET (W/NUT)
4	12921801 Whirlpool Refrigerator Light Cover
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	COVER, LIGHT
8	W10443023 Whirlpool Refrigerator Housing
9	MODULE
10	VALVE
11	12960101 Whirlpool Refrigerator Cover
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
16	13033601 Whirlpool Refrigerator Wire Cover
17	WPW10334463 Whirlpool Refrigerator Bracket
18	RESERVOIR
19	W11395888 Whirlpool Refrigerator Bypass Filter Cap
20	12002355 Whirlpool Refrigerator Thermistor Kit
