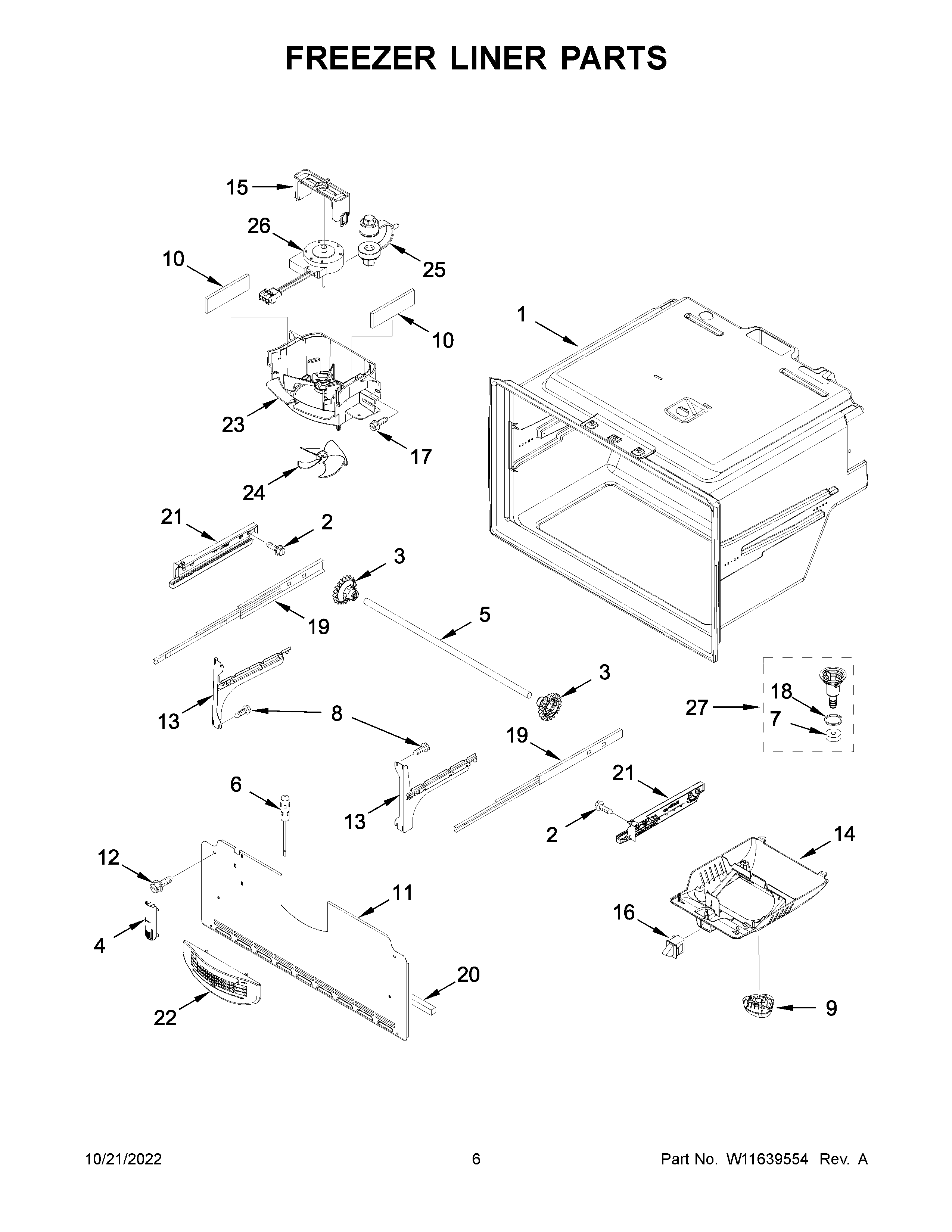

WRF550CDHZ08 04 – FREEZER LINER PARTS

WRF550CDHZ08 04 – FREEZER LINER PARTS

Written by

in

WRF550CDHZ08 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP489474 Whirlpool Refrigerator Screw
312002497 Whirlpool Refrigerator Drawer Gear Kit
4WP67003924 Whirlpool Refrigerator Cover
5W11028221 Whirlpool Refrigerator Shaft
612002355 Whirlpool Refrigerator Thermistor Kit
7WPB8381501 Whirlpool Refrigerator Door Gasket
9MODULE
10W10856123 Whirlpool Refrigerator Gasket
11W10308421 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13AWPW10330995 Whirlpool Refrigerator Bracket
13WPW10330994 Whirlpool Refrigerator Bracket
14W11434460 Whirlpool Refrigerator Housing
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
18WPM0500703 Whirlpool Refrigerator O-Ring Seal
19W11658403 Whirlpool Slide
20W11159728 Whirlpool Refrigerator Gasket
21W10858097 Whirlpool Refrigerator Bracket
21AW10857648 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11676465 Whirlpool Grommet
26MOTOR-EVAP
27W10815413 Whirlpool Refrigerator Funnel
