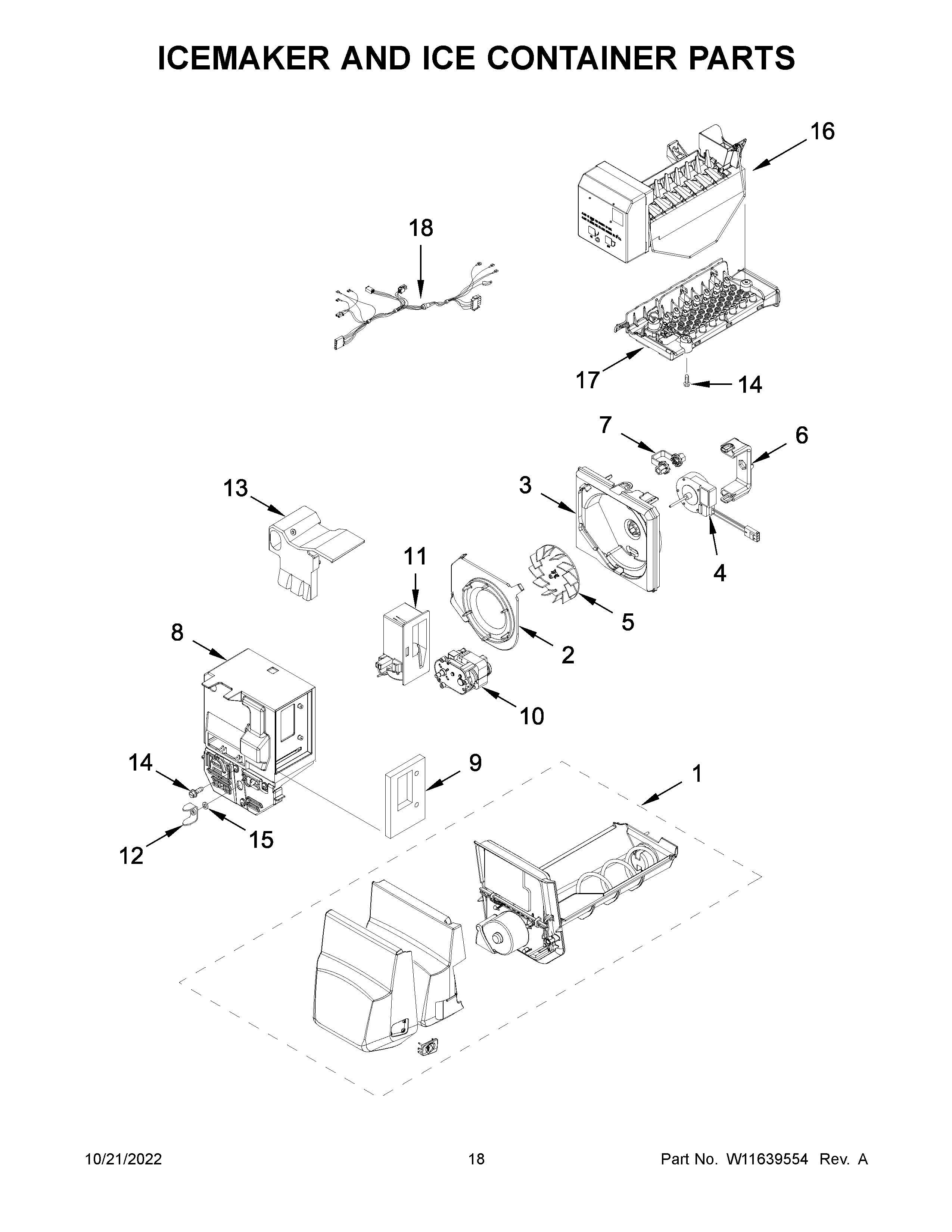

WRF550CDHZ08 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	WPW10324088 Whirlpool Refrigerator Ice Bin
2	W10121282 Whirlpool Refrigerator Insert
3	W10121281 Whirlpool Refrigerator Shroud
4	WPW10162697 Whirlpool Refrigerator Motor
5	WPW10123444K Whirlpool Refrigerator Wheel
6	W10165970 Whirlpool Refrigerator Clip
7	GROMMET, FAN MOTOR
8	W10356558 Whirlpool Refrigerator Divider
9	WP67006341 Whirlpool Refrigerator Gasket
10	W11671282 Whirlpool Refrigerator Ice Auger Motor
11	WPW10127427 Whirlpool Refrigerator Control
12	WP63052-2 Whirlpool Refrigerator Impeller
13	W11676504 Whirlpool Insert Assembly
14	67006425 Whirlpool Refrigerator Screw
15	W11378860 Whirlpool Refrigerator Spacer
16	ICEMAKER
17	W11548539 Whirlpool Air Baffle
18	HARNESS, ICEMAKER (INCLUDES THERMISTOR)
