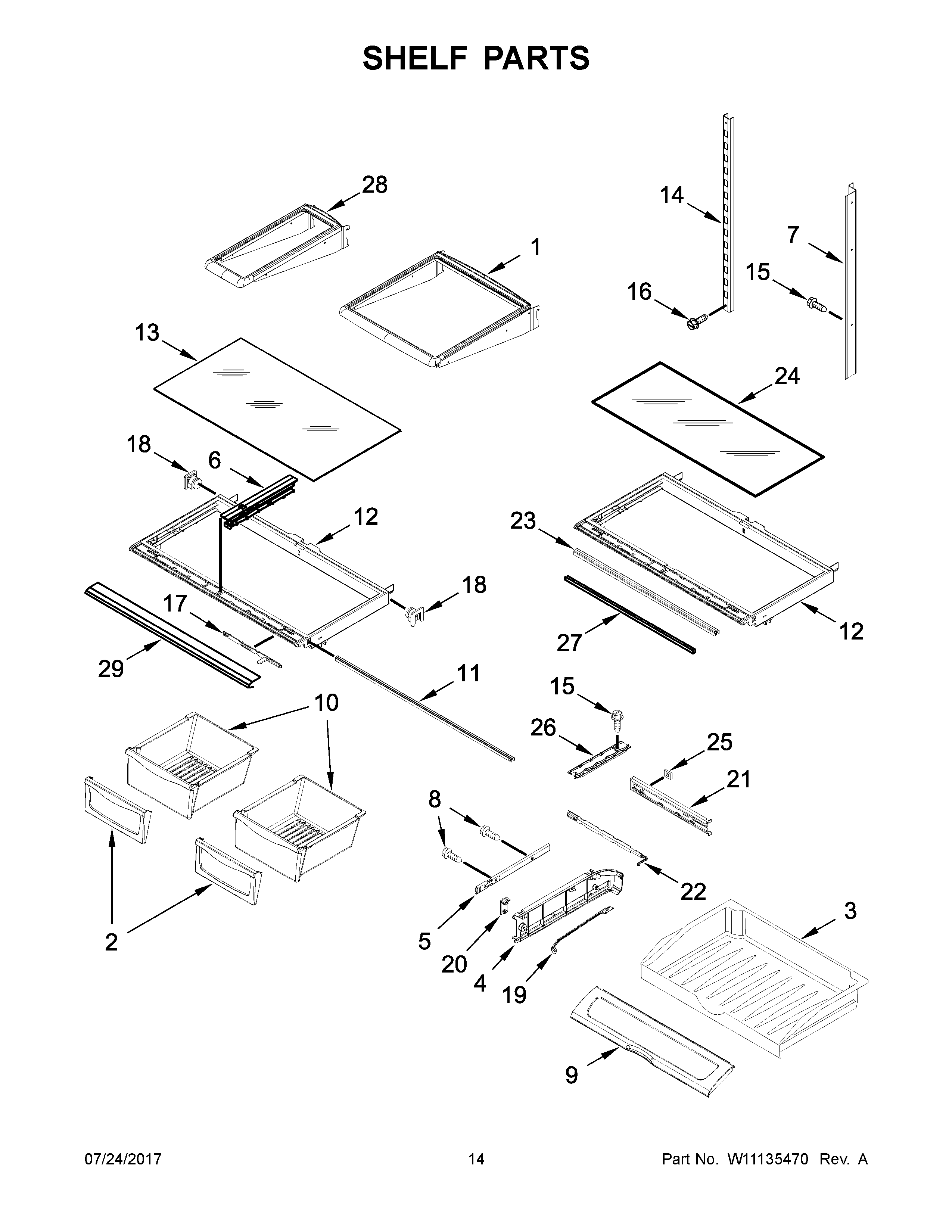

WRF555SDFZ02 08 – SHELF PARTS

WRF555SDFZ02 08 – SHELF PARTS

Written by

in

WRF555SDFZ02 08 – SHELF PARTS

Products

PositionProduct
1W11402525 Whirlpool Glass Shelf
2W11206718 Whirlpool Refrigerator Front Panel
3WP67003531 Whirlpool Drawer Assembly
4AW10874836 Whirlpool Endcap Assembly Left Hand and Right
5WPW10235370 Whirlpool Refrigerator Glide
6W10854958 Whirlpool Refrigerator Screw
7W10251966 Whirlpool Refrigerator Ladder
7AW10251965 Whirlpool Refrigerator Ladder
8WP98165 Whirlpool Screw
9W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
10WP67004515 Whirlpool Crisper Drawer
11WP12642303WD Whirlpool Refrigerator Drawer Support
12WPW10329866 Whirlpool Frame
13WP67006704 Whirlpool Glass Crisper Cover
14W10273464 Whirlpool Refrigerator Ladder
1567006425 Whirlpool Refrigerator Screw
16WP67006415 Whirlpool Refrigerator Screw
17SLIDE
18WP13062602 Whirlpool Refrigerator Support
19WP67003795 Whirlpool Refrigerator Temperature Control Bar
20W11498983 Whirlpool Refrigerator Knob
2112656202 Whirlpool Refrigerator Housing
22WP67003793 Whirlpool Refrigerator Temperature Slide
23W11210956 Whirlpool Refrigerator Shelf Trim
24W11033333 Whirlpool Glass Shelf
2567002329 Whirlpool Refrigerator Pantry Gasket
26WP67001719 Whirlpool Refrigerator Track
27WP12227305WD Whirlpool Drawer Support
28W11197490 Whirlpool Refrigerator Cantilever Shelf
29W10313178 Whirlpool Refrigerator Shelf Trim
30WPW10326469 Whirlpool Drawer Slide Rail
