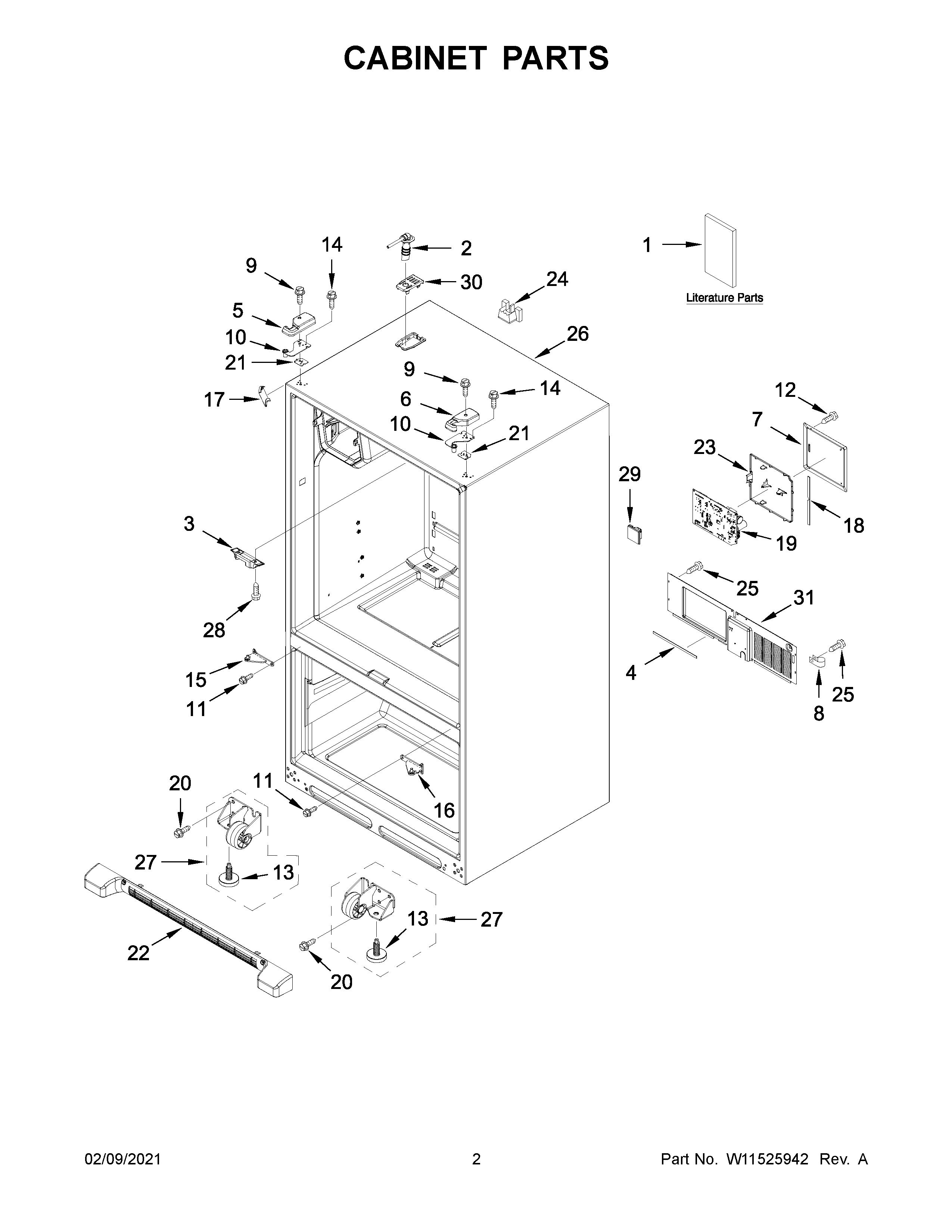

WRF555SDFZ03 02 – CABINET PARTS

WRF555SDFZ03 02 – CABINET PARTS

Written by

in

WRF555SDFZ03 02 – CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1TECH SHEET (ENGLISH)
1BUSE AND CARE GUIDE
1ATECH SHEET (FRENCH)
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5AWPW10191117 Whirlpool Refrigerator Cover
5WPW10337648 Whirlpool Refrigerator Cover
6W10191141 Whirlpool Refrigerator Tube Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
1267006425 Whirlpool Refrigerator Screw
13WPW10141622 Whirlpool Leveler
14WP489349 Whirlpool Refrigerator Screw
15W10917991 Whirlpool Refrigerator Door Hinge
15AHINGE-DOOR
16WPW10270394 Whirlpool Refrigerator Back Cover
17WP12587703AP Whirlpool Refrigerator Filler
18W10914798 Whirlpool Gasket
19W11043763 Whirlpool Refrigerator Electronic Control Board
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23W10296541 Whirlpool Refrigerator Wire Cover
24W11686793 Whirlpool Block
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
27WPW10515763 Whirlpool Refrigerator Cabinet Roller
27AWPW10515762 Whirlpool Refrigerator Cabinet Roller
28W11693756 Whirlpool Screw Assembly
29WPM0104106 Whirlpool Refrigerator Clip
