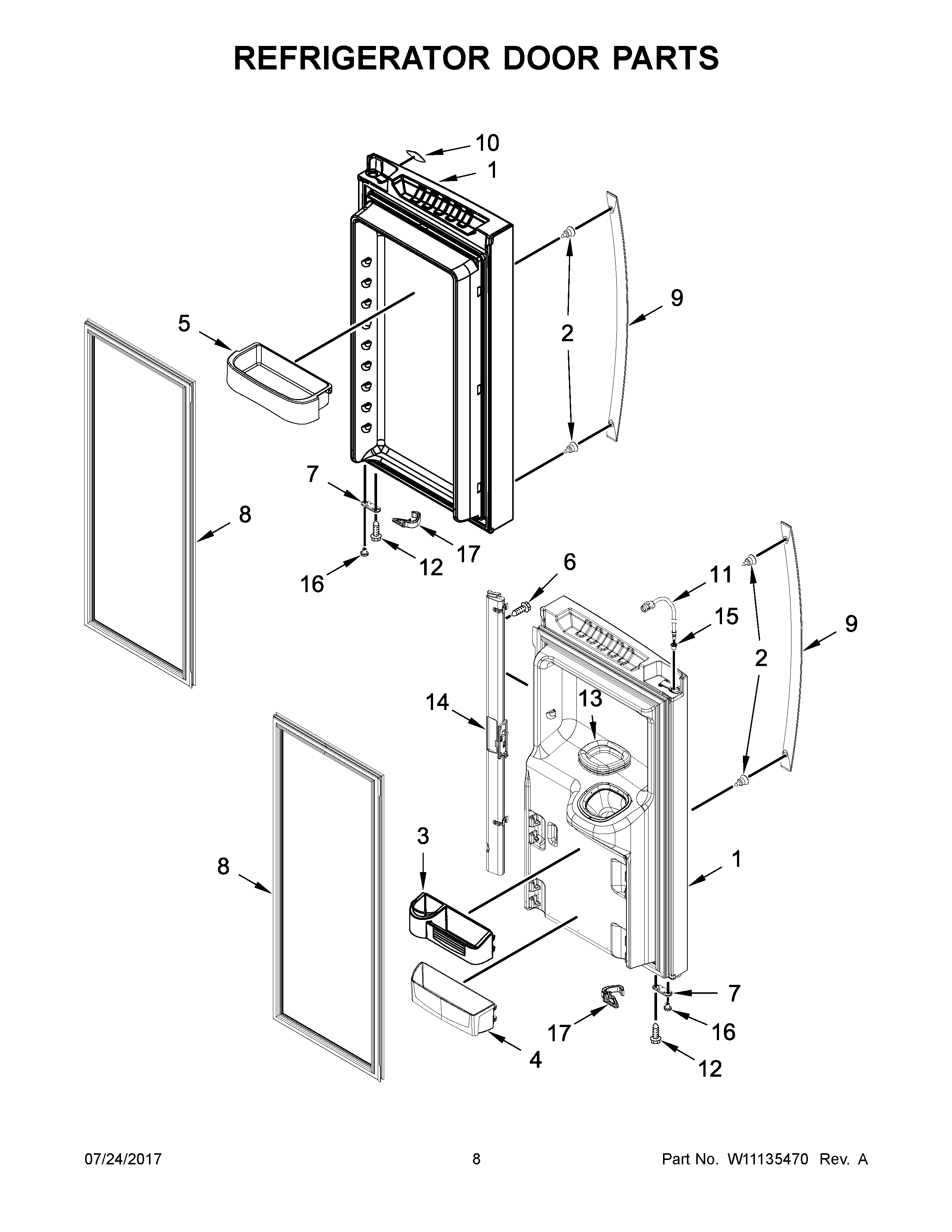

WRF555SDFZ03 05 – REFRIGERATOR DOOR PARTS

WRF555SDFZ03 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF555SDFZ03 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AW10910854 Whirlpool Refrigerator Door Assembly
1W10915642 Whirlpool Refrigerator Service Door Kit
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3WPW10323808 Whirlpool Refrigerator Cantilever Bin
4WPW10212139 Whirlpool Refrigerator Door Shelf Bin
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
6W11311945 Whirlpool Refrigerator Screw
7W11703060 Whirlpool Door Stop
8GASKET-FIP GRAY
9W10899551 Whirlpool Door Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WP98165 Whirlpool Screw
13WPW10287601 Whirlpool Seal
14WP12722815AP Whirlpool Refrigerator Mullion Rail
1512996601 Whirlpool Refrigerator Bushing Clip
16WP12028505AP Whirlpool Closing Cam
17W10918008 Whirlpool Refrigerator Closer
17AW10918010 Whirlpool Refrigerator Closer
