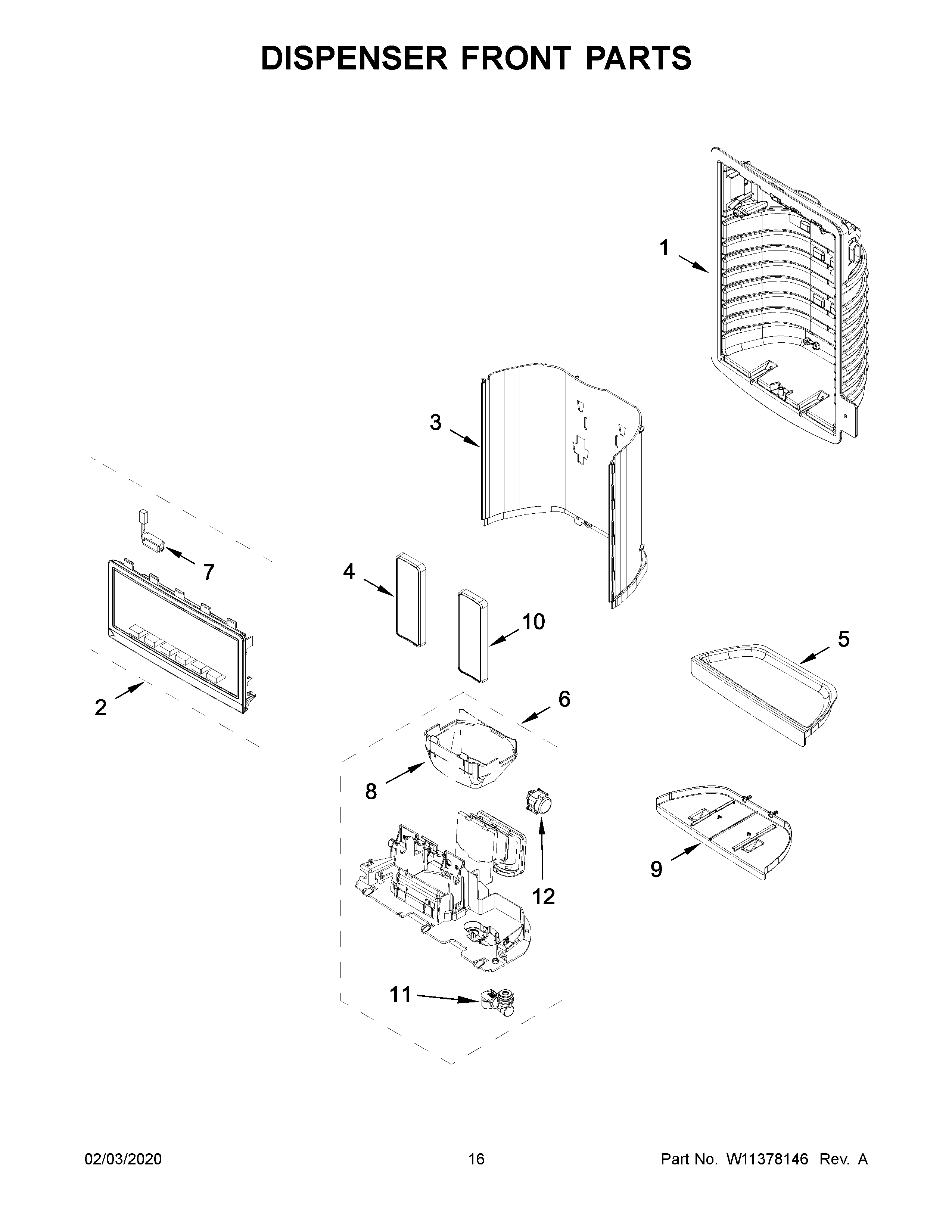

WRF555SDFZ11 09 – DISPENSER FRONT PARTS

WRF555SDFZ11 09 – DISPENSER FRONT PARTS

Written by

in

WRF555SDFZ11 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11284720 Whirlpool Refrigerator UI Panel
3W11045978 Whirlpool Refrigerator Shield
4WPW10368730 Whirlpool Refrigerator Pad
5W11192301 Whirlpool Refrigerator Drip Tray
6WPW10353552 Whirlpool Refrigerator Separator
7W11290115 Whirlpool Refrigerator Light
8WPW10435760 Whirlpool Refrigerator Ice Guide
9WPW10267863 Whirlpool Refrigerator Drip Tray
11W11227371 Whirlpool Refrigerator Spigot
12WPW10205979 Whirlpool Refrigerator Ice Door Motor
