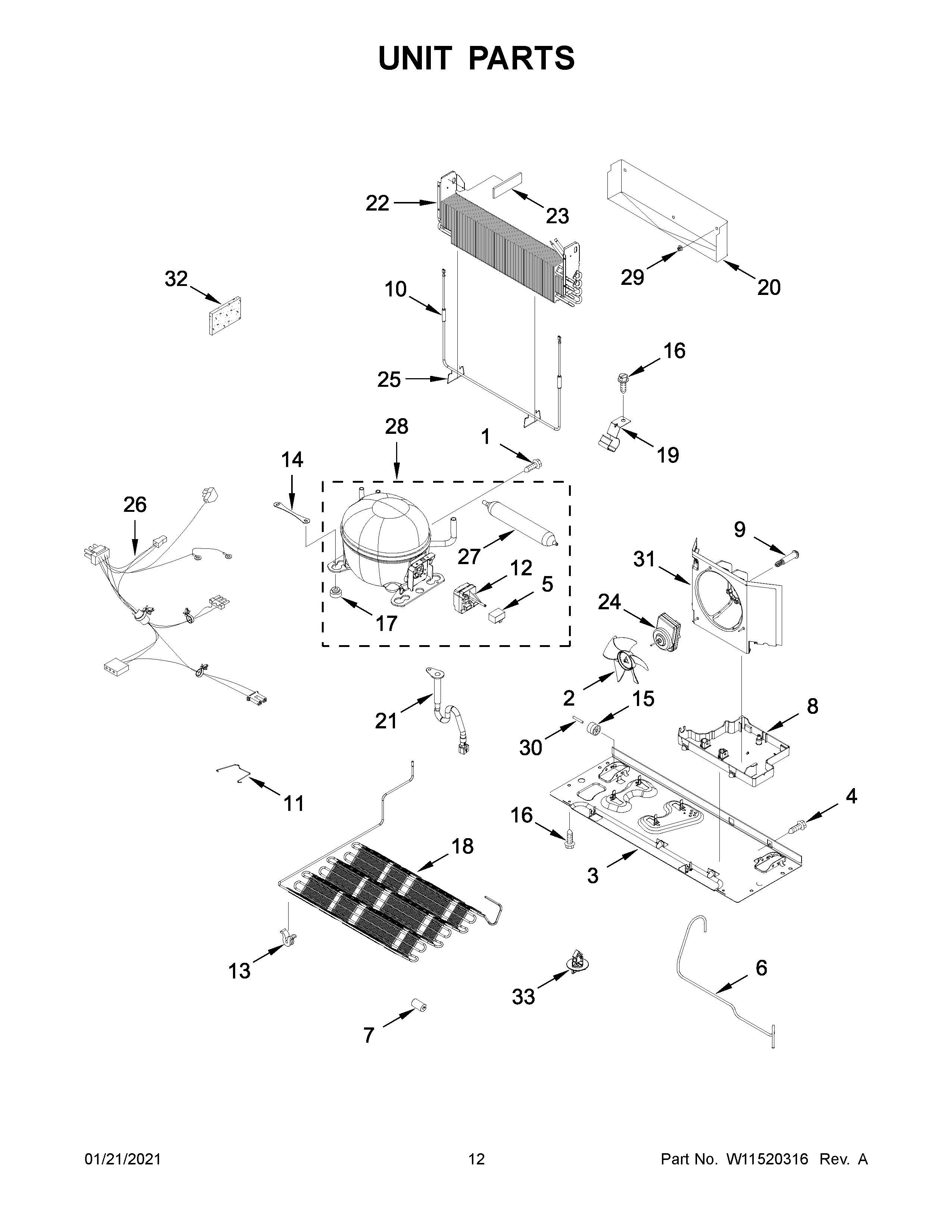

WRF555SDFZ12 07 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
7	W10852725 Whirlpool Refrigerator Grommet
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
11	W11092534 Whirlpool Refrigerator Clip
12	W10873801 Whirlpool Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10236396 Whirlpool Refrigerator Strap
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	W11644420 Whirlpool Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	W10619951 Whirlpool Drain Tube with Grommet
22	W11536253 Whirlpool Refrigerator Evaporator
23	W11451451 Whirlpool Refrigerator Gasket
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W11666013 Whirlpool Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10233960 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W11553819 Whirlpool Refrigerator Insulation
33	W10815863 Whirlpool Clip
