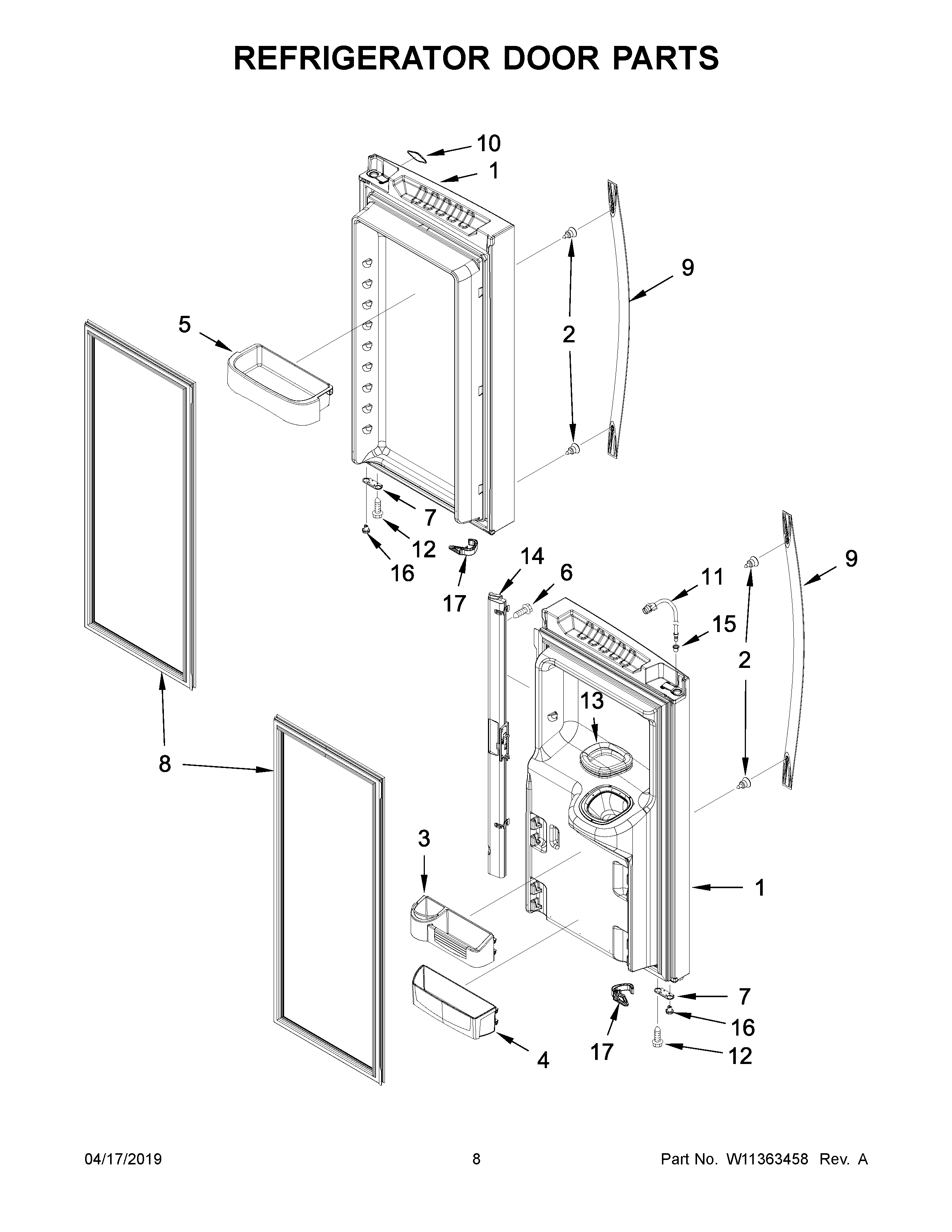

WRF555SDHB01 05 – REFRIGERATOR DOOR PARTS

WRF555SDHB01 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF555SDHB01 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10862413 Whirlpool Refrigerator Door Assembly
1CW10862410 Whirlpool Refrigerator Door Assembly
1AW10862411 Whirlpool Refrigerator Door Assembly
1BW10862412 Whirlpool Refrigerator Door Assembly
2WPW10661886 Whirlpool Refrigerator Door Handle Screw
3WPW10323808 Whirlpool Refrigerator Cantilever Bin
4WPW10212139 Whirlpool Refrigerator Door Shelf Bin
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
6W11311945 Whirlpool Refrigerator Screw
7AW11708403 Whirlpool Door Stop
712968202W Whirlpool Refrigerator Door Stop
8W11396037 Whirlpool Door Gasket
8AW11378944 Whirlpool Door Gasket
9W11127179 Whirlpool Refrigerator Handle
9AW11123097 Whirlpool Refrigerator Handle
10W11223753 Whirlpool Refrigerator Nameplate
11WPW10511930 Whirlpool Refrigerator Water Tube
12WP98165 Whirlpool Screw
13WPW10287601 Whirlpool Seal
14A12722815B Whirlpool Refrigerator Mullion Rail
14WP12722815W Whirlpool Refrigerator Mullion Rail
1512996601 Whirlpool Refrigerator Bushing Clip
16WP67003638 Whirlpool Closing Cam
16AWP67003639 Whirlpool Refrigerator Closer
17AW10918170 Whirlpool Refrigerator Closer
17CW10918171 Whirlpool Refrigerator Closer
17BW10918120 Whirlpool Refrigerator Closer
17W10918118 Whirlpool Refrigerator Door Closer
