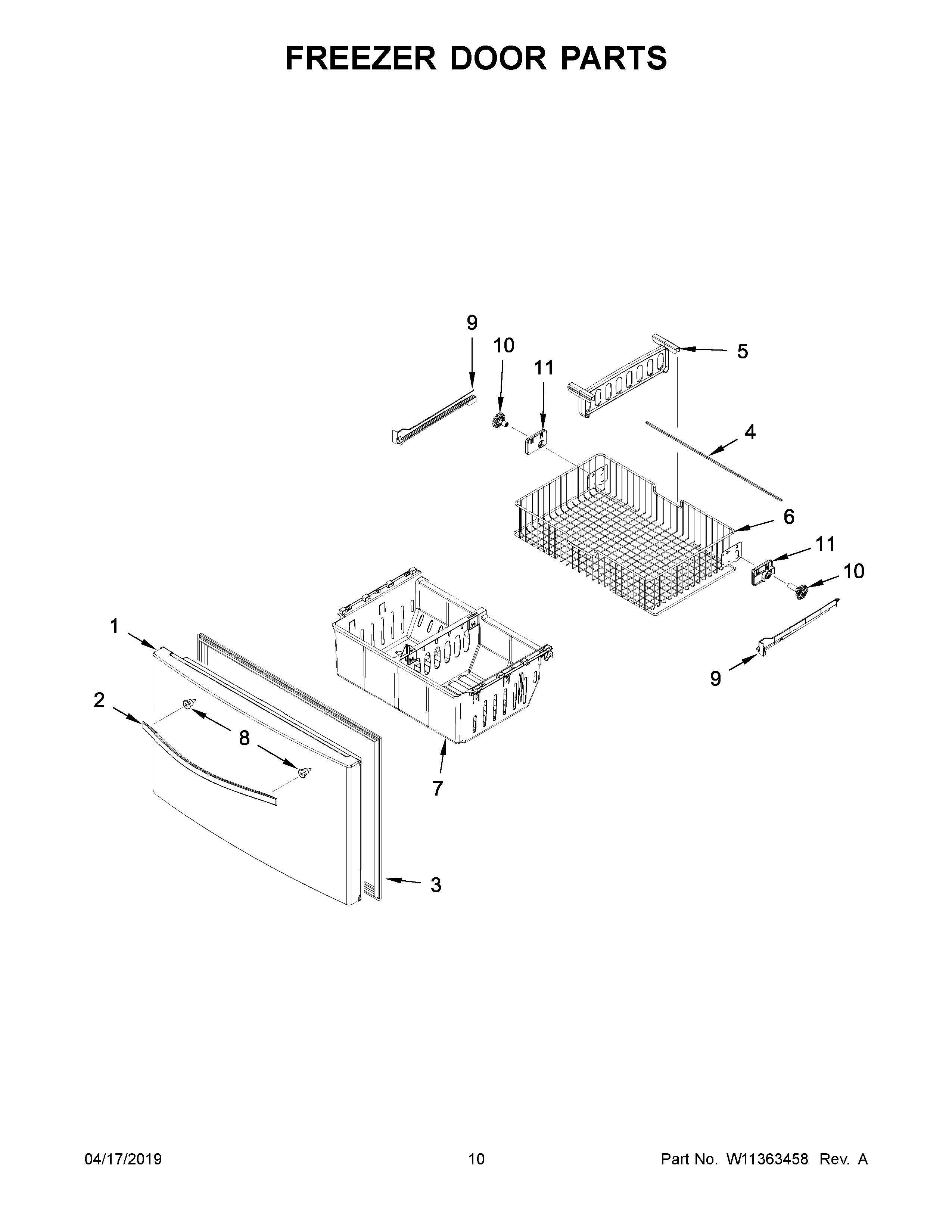

WRF555SDHB01 06 – FREEZER DOOR PARTS

WRF555SDHB01 06 – FREEZER DOOR PARTS

Written by

in

WRF555SDHB01 06 – FREEZER DOOR PARTS

Products

PositionProduct
1W10862408 Whirlpool Refrigerator Door Assembly
1AW10862407 Whirlpool Refrigerator Door Assembly
2AW11123101 Whirlpool Refrigerator Handle
2W11127178 Whirlpool Refrigerator Handle
3WPW10443321 Whirlpool Door Gasket
3AWPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
4W11173556 Whirlpool Refrigerator Shaft
5W10146439 Whirlpool Refrigerator Divider
6W11218042 Whirlpool Refrigerator Freezer Basket
7WPW10293682 Whirlpool Refrigerator Freezer Bin
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9AW11489994 Whirlpool Refrigerator Rail
9W11489993 Whirlpool Refrigerator Rail
10AWPW10474715 Whirlpool Refrigerator Gear
10WPW10474716 Whirlpool Refrigerator Gear
11W10348259 Whirlpool Refrigerator Bracket Assembly
11AW10348260 Whirlpool Refrigerator Bracket
