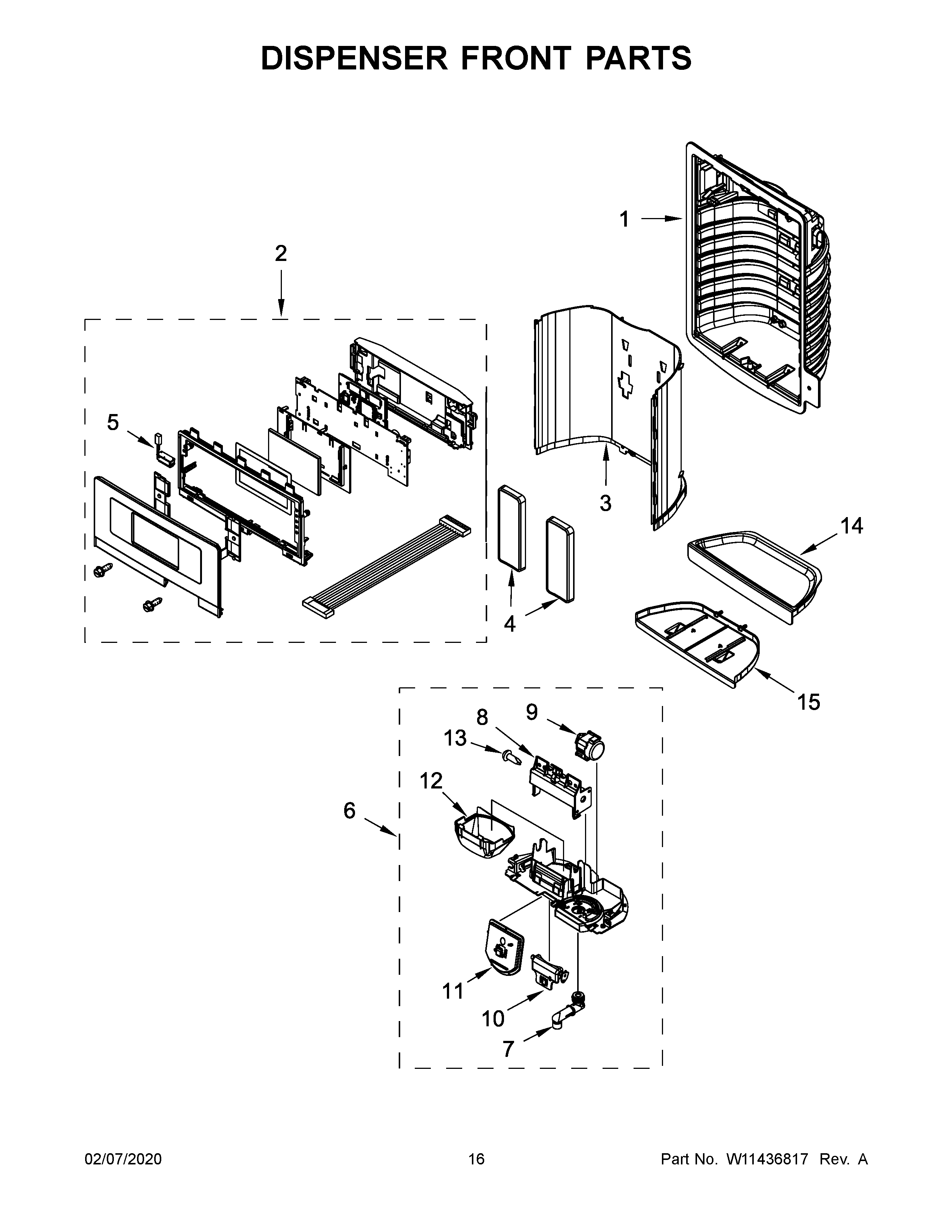

WRF555SDHB02 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W11284720 Whirlpool Refrigerator UI Panel
3	W11045975 Whirlpool Refrigerator Shield
3A	W11045976 Whirlpool Refrigerator Shield
4	W10353846 Whirlpool Refrigerator Pad
4A	W11661207 Whirlpool Pad Assembly
5	W11290115 Whirlpool Refrigerator Light
6	WPW10353552 Whirlpool Refrigerator Separator
7	W11227371 Whirlpool Refrigerator Spigot
8	W10174827 Whirlpool Refrigerator Bracket
9	WPW10205979 Whirlpool Refrigerator Ice Door Motor
10	WPW10346124 Whirlpool Refrigerator Support
11	WPW10317279 Whirlpool Refrigerator Door Chute
12	WPW10435760 Whirlpool Refrigerator Ice Guide
13	W10174818 Whirlpool Refrigerator Clip
14A	W11045971 Whirlpool Refrigerator Drip Tray
14	W11045970 Whirlpool Refrigerator Drip Tray
15A	W10267861 Whirlpool Refrigerator Drip Tray
15	W10267860 Whirlpool Refrigerator Drip Tray
