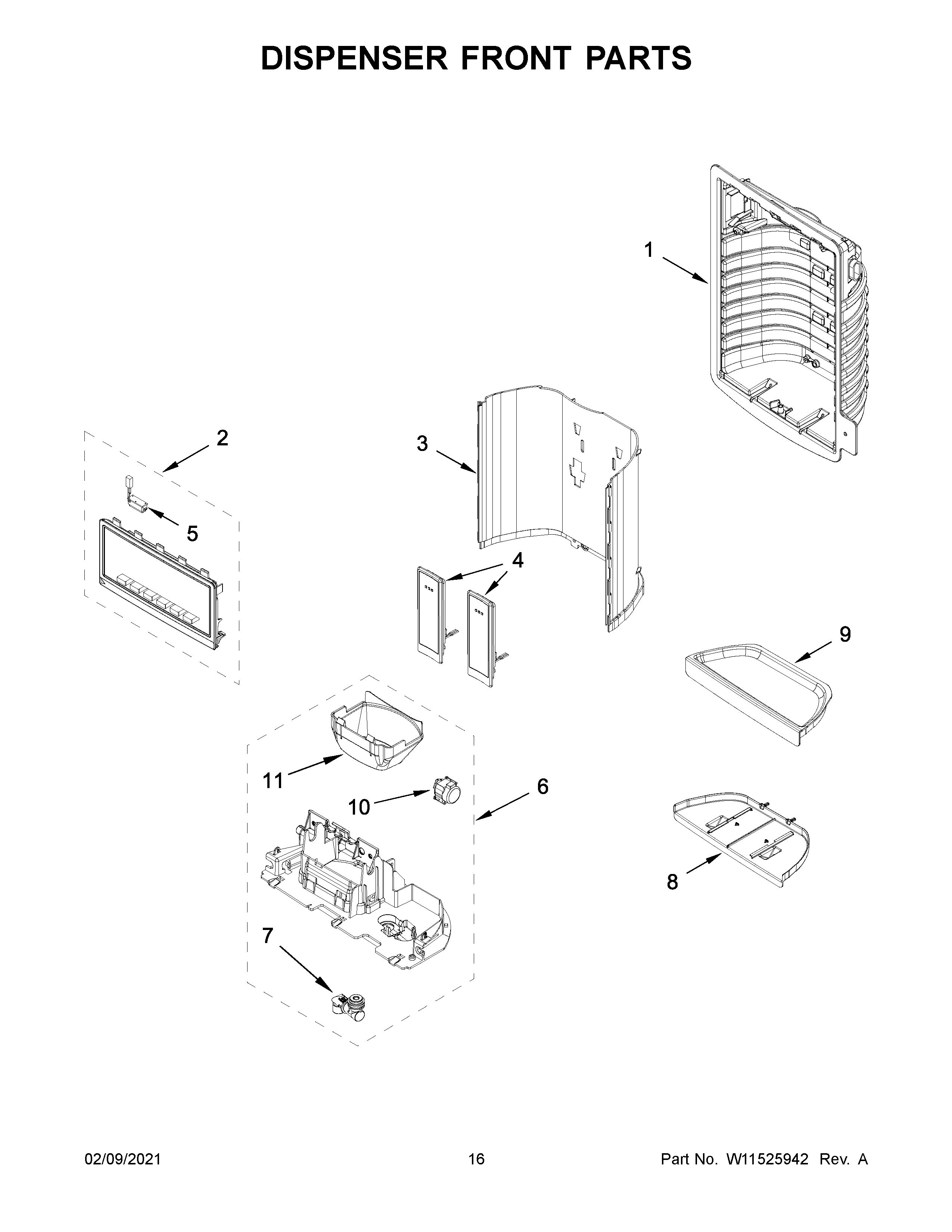

WRF555SDHB03 09 – DISPENSER FRONT PARTS

WRF555SDHB03 09 – DISPENSER FRONT PARTS

Written by

in

WRF555SDHB03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11284720 Whirlpool Refrigerator UI Panel
3AW11045976 Whirlpool Refrigerator Shield
3W11045975 Whirlpool Refrigerator Shield
4AW11661207 Whirlpool Pad Assembly
4W10353846 Whirlpool Refrigerator Pad
5W11290115 Whirlpool Refrigerator Light
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8AW10267861 Whirlpool Refrigerator Drip Tray
8W10267860 Whirlpool Refrigerator Drip Tray
9AW11045971 Whirlpool Refrigerator Drip Tray
9W11045970 Whirlpool Refrigerator Drip Tray
10WPW10205979 Whirlpool Refrigerator Ice Door Motor
11WPW10435760 Whirlpool Refrigerator Ice Guide
