WRF555SDHV00 09 – DISPENSER FRONT PARTS

WRF555SDHV00 09 – DISPENSER FRONT PARTS

Written by

in

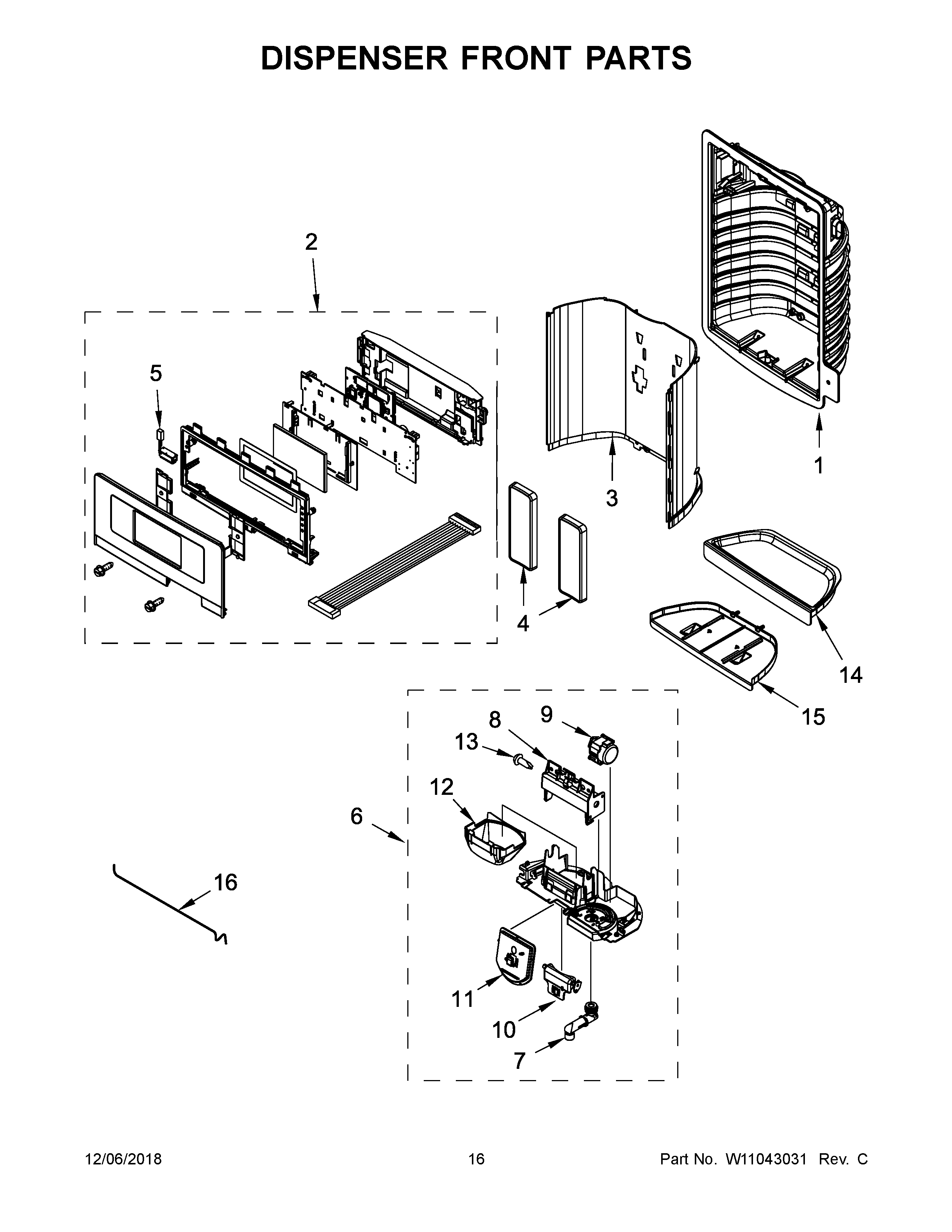

WRF555SDHV00 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11184112 Whirlpool Refrigerator Electronic Control Board + Core
3W11045979 Whirlpool Shield Assembly
4W11661207 Whirlpool Pad Assembly
5W11290115 Whirlpool Refrigerator Light
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W10174827 Whirlpool Refrigerator Bracket
9WPW10205979 Whirlpool Refrigerator Ice Door Motor
10WPW10346124 Whirlpool Refrigerator Support
11WPW10317279 Whirlpool Refrigerator Door Chute
12WPW10435760 Whirlpool Refrigerator Ice Guide
13W10174818 Whirlpool Refrigerator Clip
14W11045974 Whirlpool Refrigerator Drip Tray
15W11045966 Whirlpool Tray
