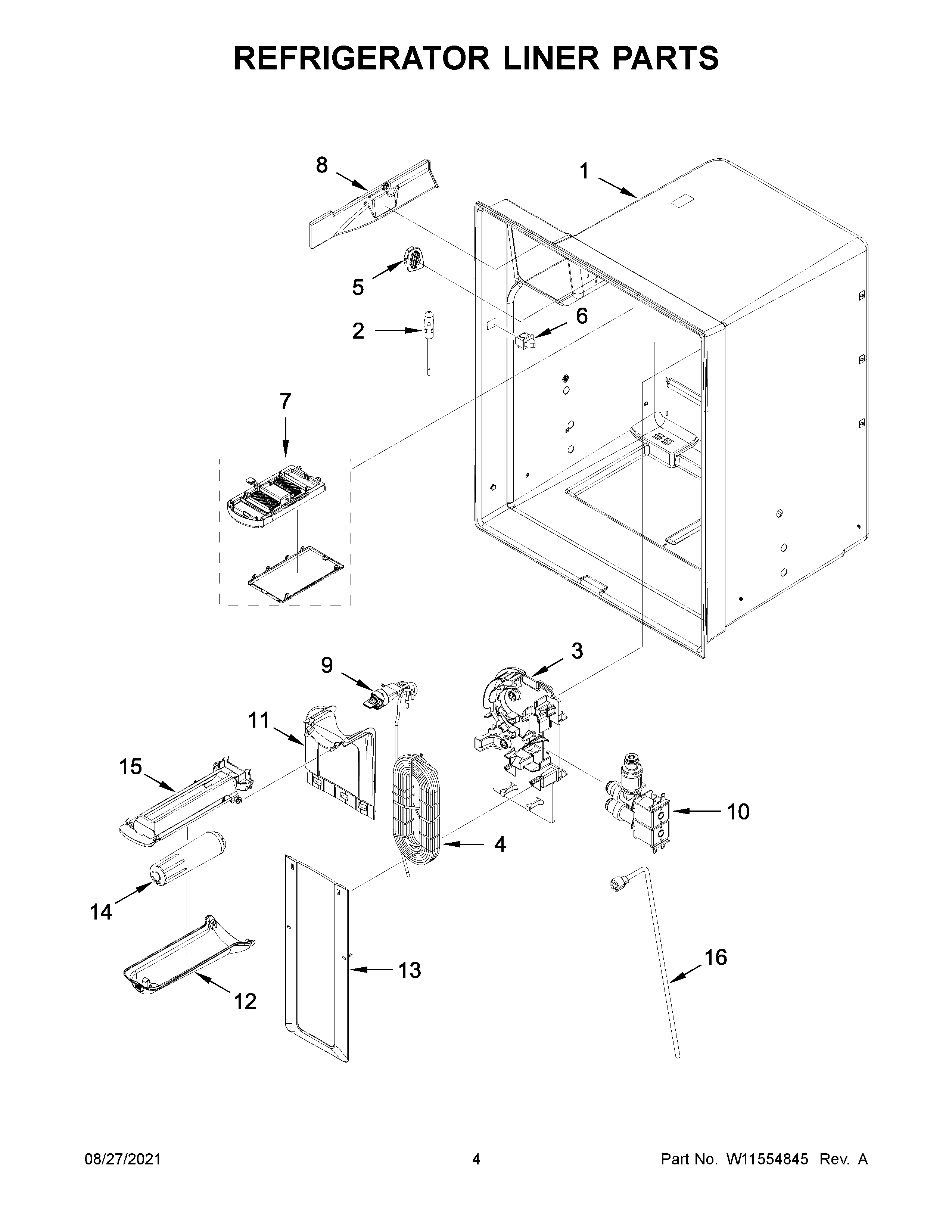

WRF555SDHV06 03 – REFRIGERATOR LINER PARTS

WRF555SDHV06 03 – REFRIGERATOR LINER PARTS

Written by

in

WRF555SDHV06 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10316760 Whirlpool Thermistor Kit
3WPW10334463 Whirlpool Refrigerator Bracket
4RESERVOIR
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7MODULE
8WPW10309869 Whirlpool Refrigerator Cover
9W11395888 Whirlpool Refrigerator Bypass Filter Cap
10VALVE
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
16W11666461 Whirlpool Water Tube
