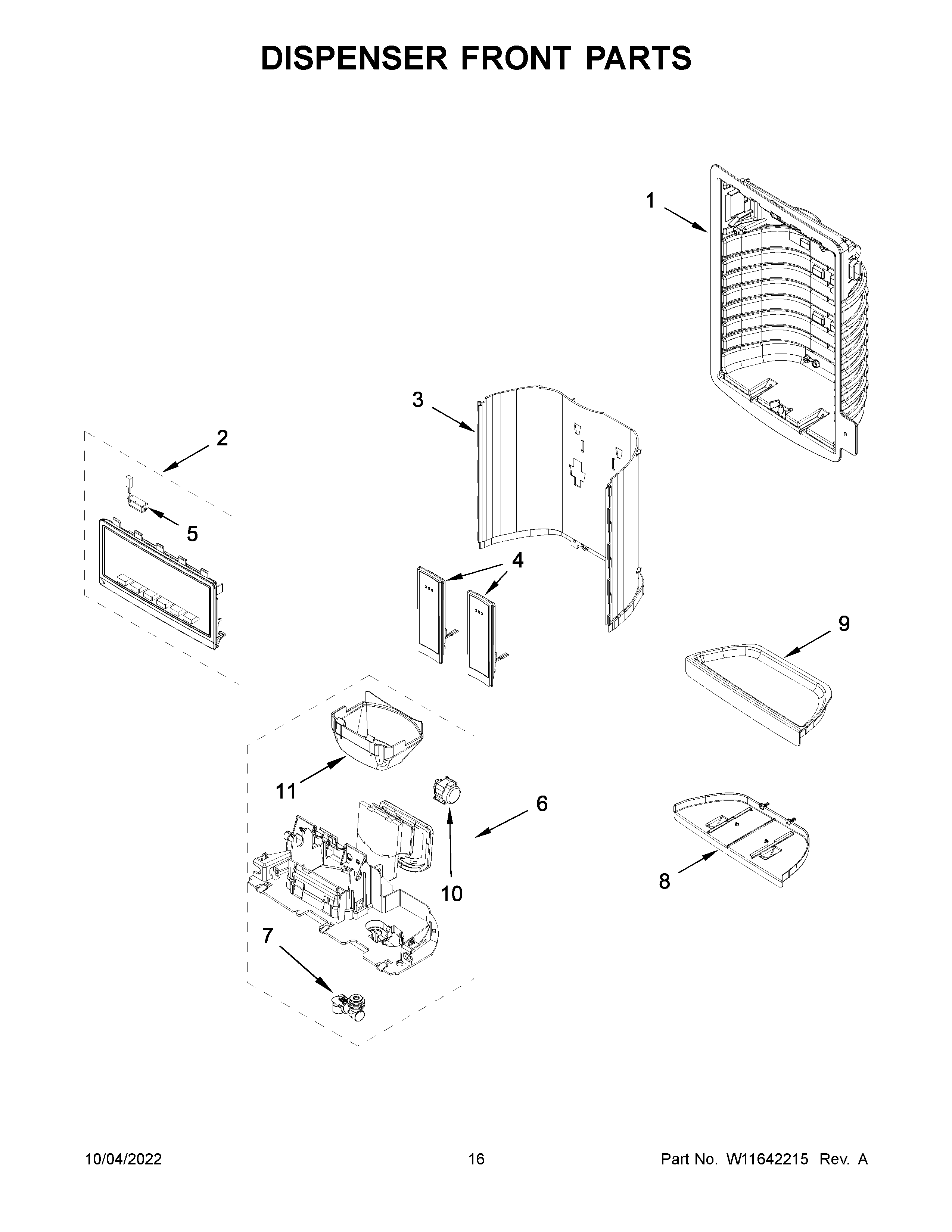

WRF555SDHV08 09 – DISPENSER FRONT PARTS

WRF555SDHV08 09 – DISPENSER FRONT PARTS

Written by

in

WRF555SDHV08 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11642015 Whirlpool UI Panel + Core
3W11045979 Whirlpool Shield Assembly
4W11661207 Whirlpool Pad Assembly
5W11290115 Whirlpool Refrigerator Light
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W11045966 Whirlpool Tray
9W11045974 Whirlpool Refrigerator Drip Tray
10WPW10205979 Whirlpool Refrigerator Ice Door Motor
11WPW10435760 Whirlpool Refrigerator Ice Guide
