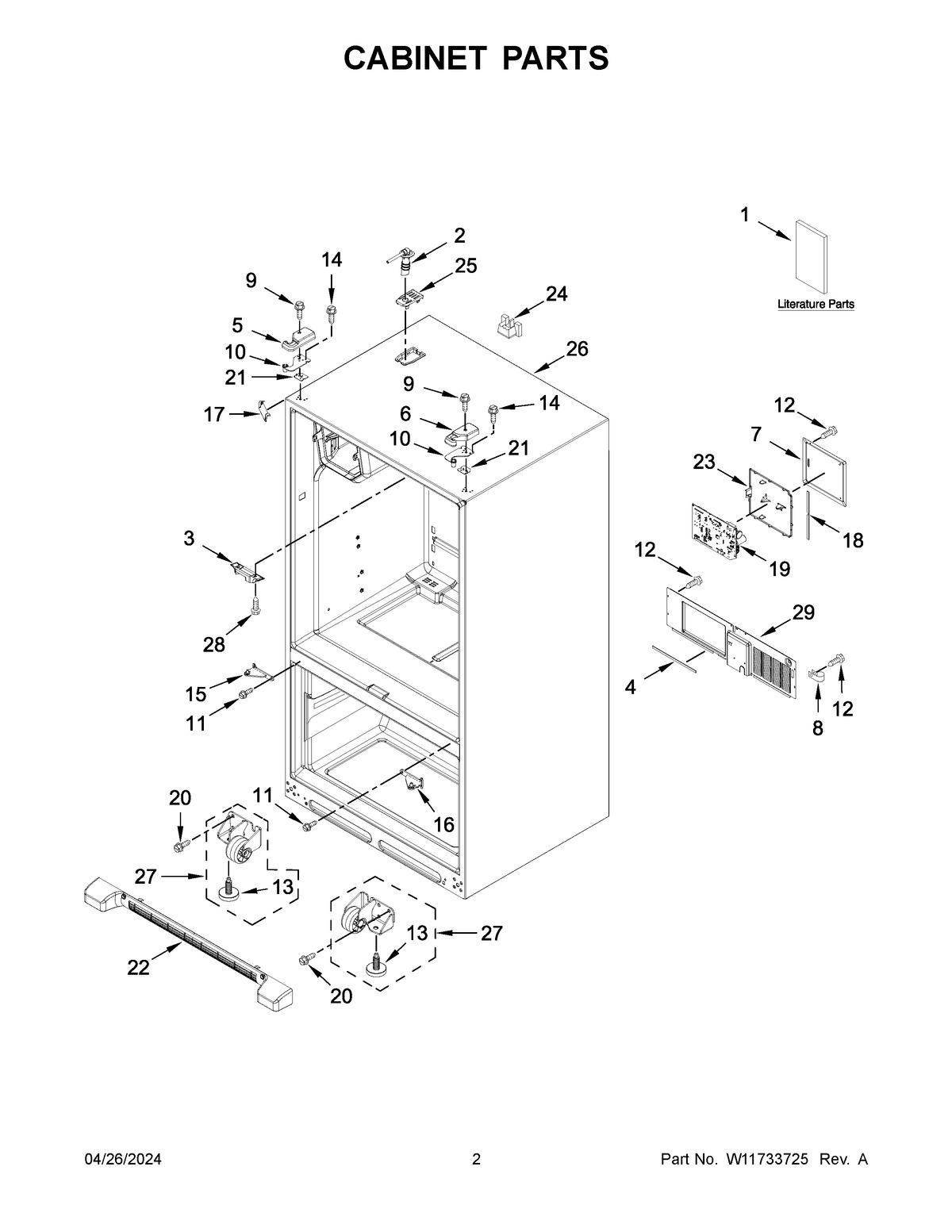

WRF555SDHV11 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	OWNERS MANUAL
1A	TECH SHEET
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	W11534848 Whirlpool Gasket
5	W10337647 Whirlpool Refrigerator Cover
6	WP67005956 Whirlpool Refrigerator Cover
7	12961602 Whirlpool Refrigerator Wire Cover
8	W11456069 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10A	W11592374 Whirlpool Refrigerator Top Door Hinge
11	W11573362 Whirlpool Screw Assembly
12	W11686675 Whirlpool Screw
13	WPW10141622 Whirlpool Leveler
14	WP489349 Whirlpool Refrigerator Screw
15	W11642008 Whirlpool Door Hinge
16	W11642010 Whirlpool Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	W10914798 Whirlpool Gasket
19	W11548534-includeCORE Whirlpool W11548534 Refrigerator Electronic Control Board
20	67006564 Whirlpool Refrigerator Screw
21A	12999502 Whirlpool Refrigerator Hinge Shim
21	12999501 Whirlpool Refrigerator Hinge Shim
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	W10296541 Whirlpool Refrigerator Wire Cover
24	W11686793 Whirlpool Block
25	12981401B Whirlpool Refrigerator Filtration Cover
26	CABINET (NOT A SERVICABLE PART)
27	WPW10515763 Whirlpool Refrigerator Cabinet Roller
27A	WPW10515762 Whirlpool Refrigerator Cabinet Roller
28	W11693756 Whirlpool Screw Assembly
29	WPW10270394 Whirlpool Refrigerator Back Cover
