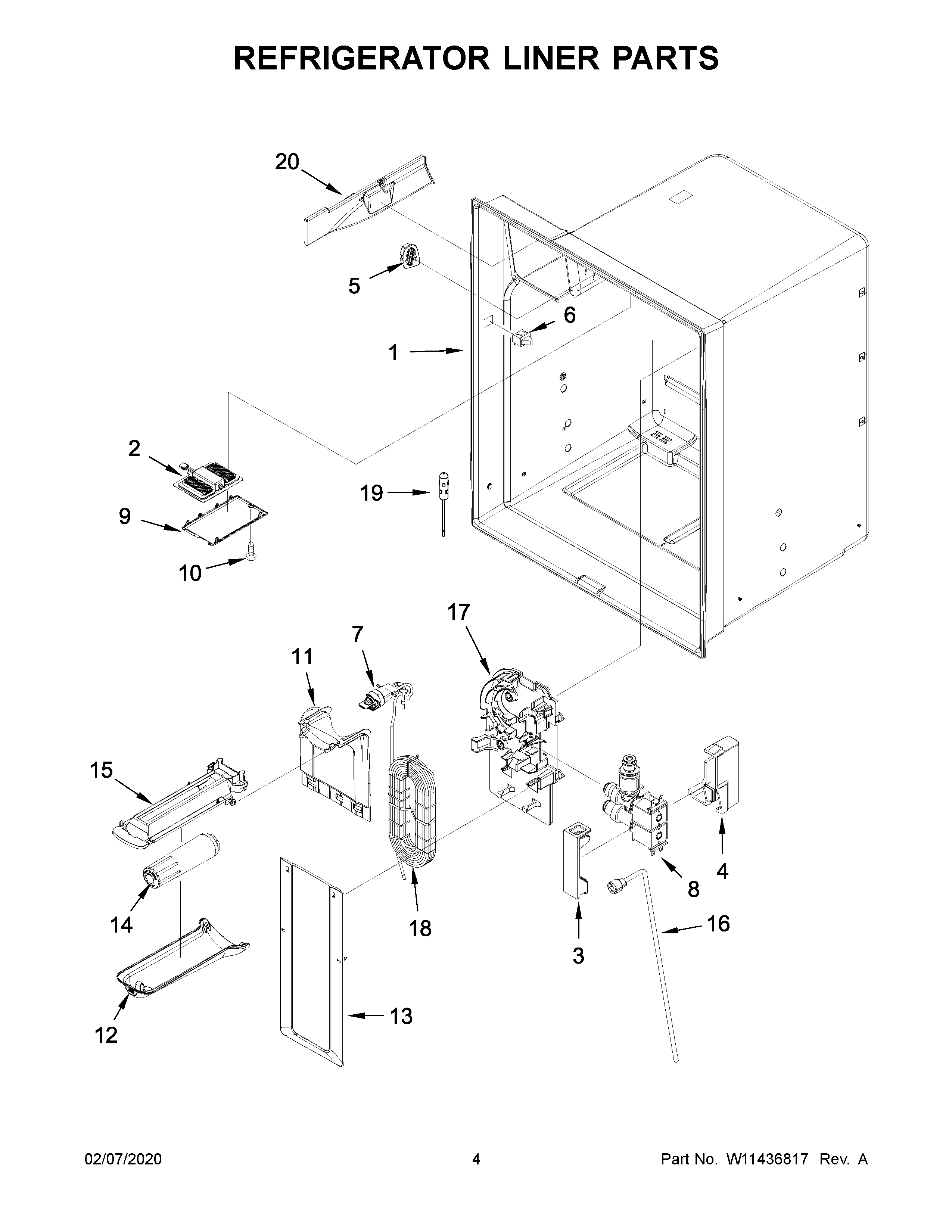

WRF555SDHW02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	MODULE
3	W10118194 Whirlpool Refrigerator Cover
4	W10118193 Whirlpool Refrigerator Cover
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	W11395888 Whirlpool Refrigerator Bypass Filter Cap
8	VALVE
10	WP3400065 Whirlpool Refrigerator Screw
11	12960101 Whirlpool Refrigerator Cover
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
16	W11666461 Whirlpool Water Tube
17	WPW10334463 Whirlpool Refrigerator Bracket
18	RESERVOIR
19	W10316760 Whirlpool Thermistor Kit
20	WPW10309869 Whirlpool Refrigerator Cover
