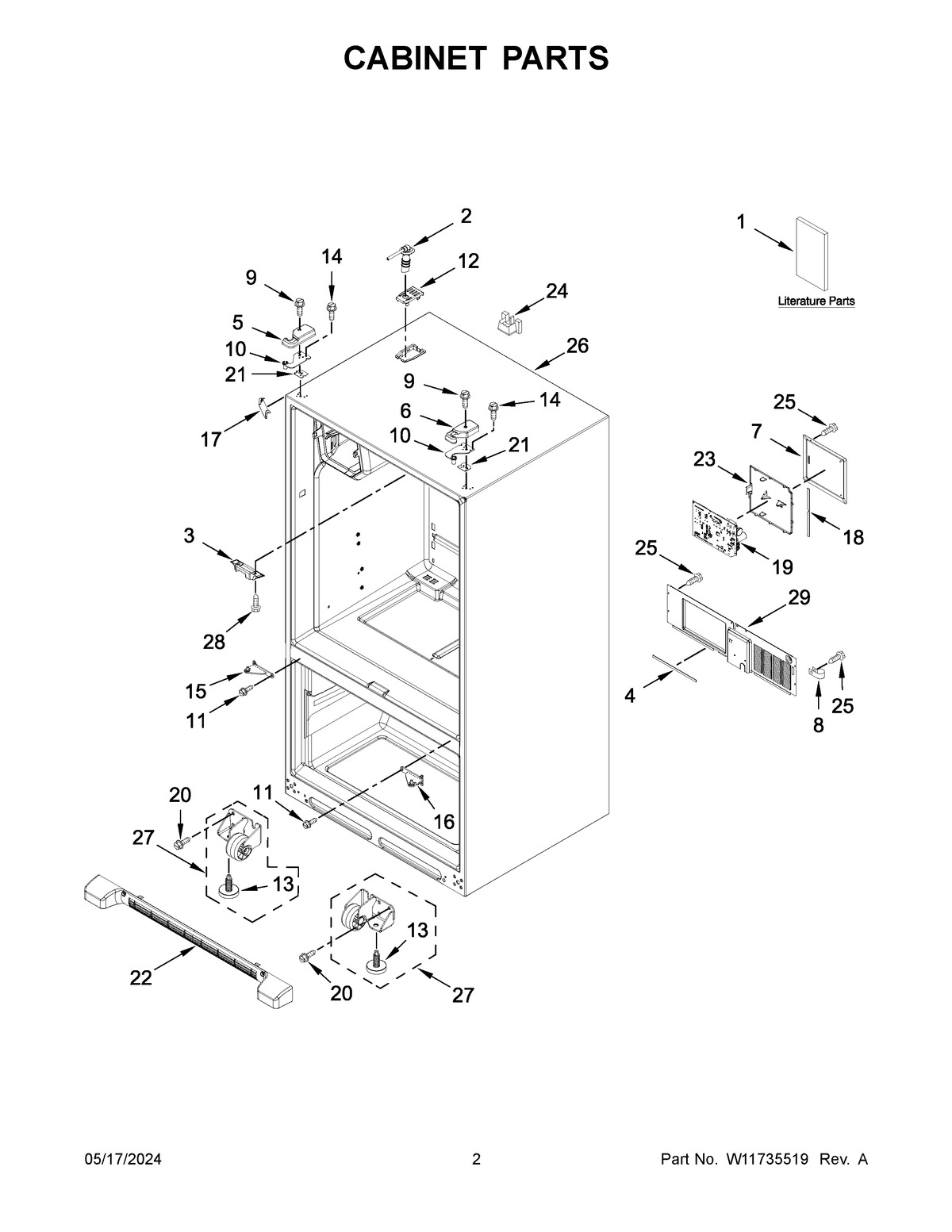

WRF555SDHW10 02 – CABINET PARTS

WRF555SDHW10 02 – CABINET PARTS

Written by

in

WRF555SDHW10 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1OWNERS MANUAL
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4W11534848 Whirlpool Gasket
5WPW10337634 Whirlpool Refrigerator Cover
667005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10AW11592374 Whirlpool Refrigerator Top Door Hinge
11W11573362 Whirlpool Screw Assembly
1212981401W Whirlpool Refrigerator Cover Filter
13WPW10141622 Whirlpool Leveler
14WP489349 Whirlpool Refrigerator Screw
15W11642008 Whirlpool Door Hinge
16W11642010 Whirlpool Door Hinge
1712587703W Whirlpool Refrigerator Cover
18W10914798 Whirlpool Gasket
19W11548534-includeCORE Whirlpool W11548534 Refrigerator Electronic Control Board
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
23W10296541 Whirlpool Refrigerator Wire Cover
24W11686793 Whirlpool Block
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICABLE PART)
27WPW10515763 Whirlpool Refrigerator Cabinet Roller
27AWPW10515762 Whirlpool Refrigerator Cabinet Roller
28W11693756 Whirlpool Screw Assembly
29WPW10270394 Whirlpool Refrigerator Back Cover
