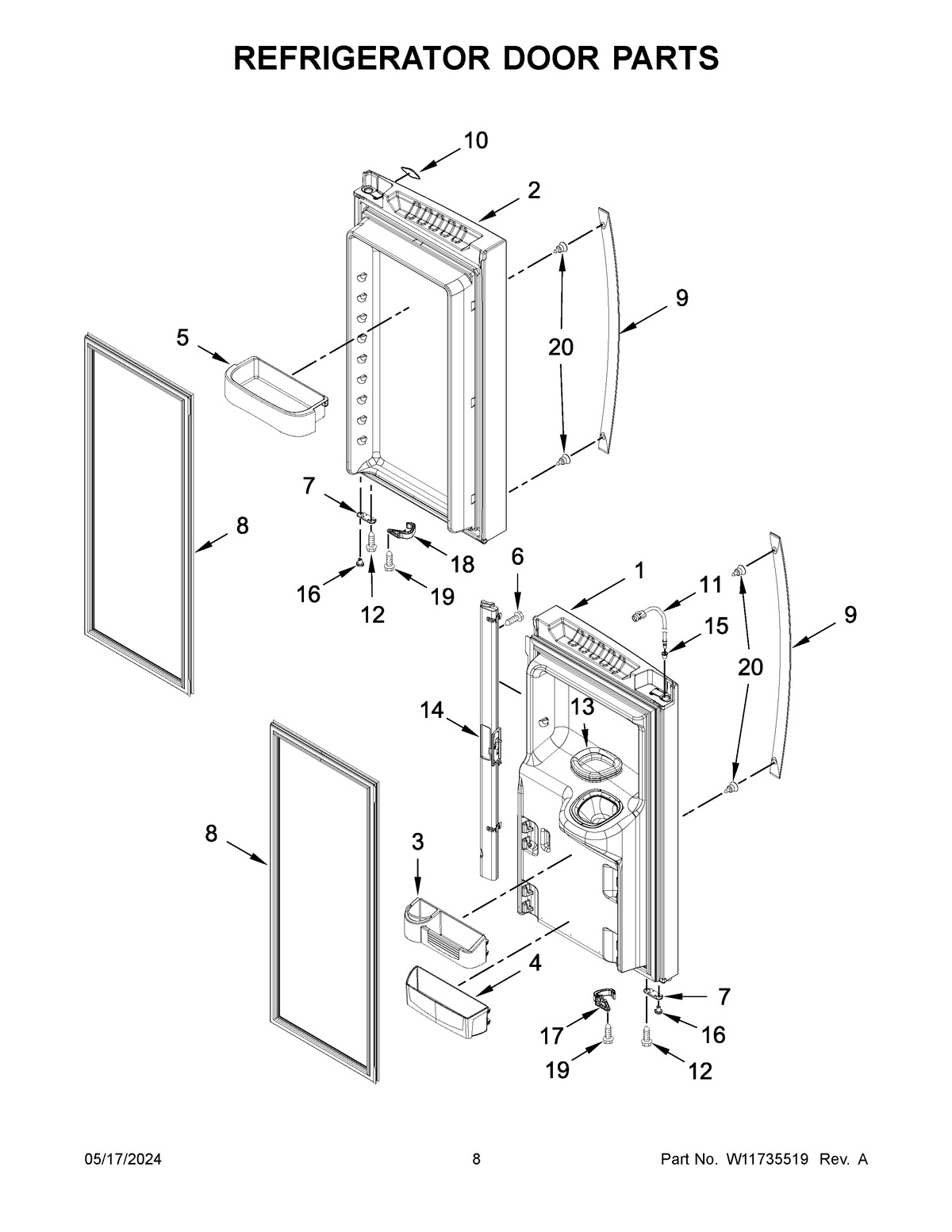

WRF555SDHW10 05 – REFRIGERATOR DOOR PARTS

WRF555SDHW10 05 – REFRIGERATOR DOOR PARTS

Written by

in

WRF555SDHW10 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10862413 Whirlpool Refrigerator Door Assembly
2W10862412 Whirlpool Refrigerator Door Assembly
3WPW10323808 Whirlpool Refrigerator Cantilever Bin
4WPW10212139 Whirlpool Refrigerator Door Shelf Bin
5WPW10224961 Whirlpool Refrigerator Door Shelf Bin
6W11311945 Whirlpool Refrigerator Screw
712968202W Whirlpool Refrigerator Door Stop
8W11396037 Whirlpool Door Gasket
9W11127179 Whirlpool Refrigerator Handle
10W11223753 Whirlpool Refrigerator Nameplate
11W11677733 Whirlpool Water Tube
12WP98165 Whirlpool Screw
13WPW10287601 Whirlpool Seal
14WP12722815W Whirlpool Refrigerator Mullion Rail
1512996601 Whirlpool Refrigerator Bushing Clip
16WP67003638 Whirlpool Closing Cam
17W10918118 Whirlpool Refrigerator Door Closer
18W10918120 Whirlpool Refrigerator Closer
19WP67006908 Whirlpool Refrigerator Screw
20W11449276 Whirlpool Handle Support
