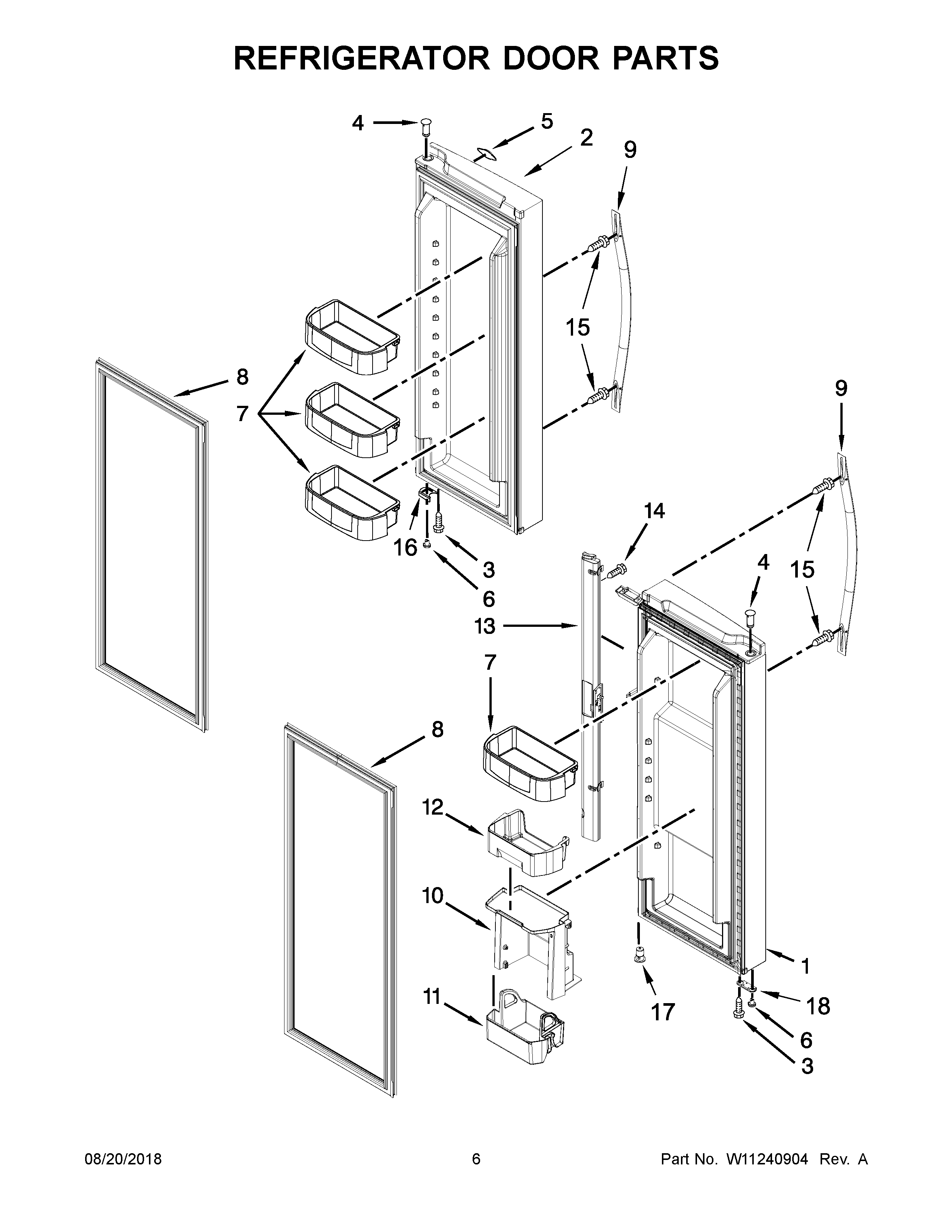

WRF560SEHB00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1C	LW11222545 Whirlpool Refrigerator Door FIP
1B	LW11222542 Whirlpool Refrigerator Door Assembly
1A	W11368204 Whirlpool Refrigerator Door Assembly
1	W11368203 Whirlpool Refrigerator DOR-FIP
2C	LW10858417 Whirlpool Refrigerator Door FIP
2B	LW10865738 Whirlpool Refrigerator DOR FIP
2A	LW10721541 Whirlpool Refrigerator Door FIP
2	LW10721540 Whirlpool Refrigerator Door Assembly
3	WP681249 Whirlpool Screw Assembly
4	W11544568 Whirlpool Door Thimble
5	W11178521 Whirlpool Dishwasher Nameplate
6	WPW10470155 Whirlpool Refrigerator Door Closing Cam
7	WPW10308869 Whirlpool Door Bin
8	W10460612 Whirlpool Refrigerator Door Gasket
8A	W10460610 Whirlpool Refrigerator FIP Gasket
8B	GASKET-FIP
9C	W11127179 Whirlpool Refrigerator Handle
10	WPW10317224 Whirlpool Refrigerator Container
11	W11106787 Whirlpool Refrigerator Cantilever Bin
12	WPW10326335 Whirlpool Refrigerator Cantilever Bin
13A	W11692845 Whirlpool Mullen Rail
13	WPW10624451 Whirlpool Refrigerator Mullion Rail
13B	WPW10624450 Whirlpool Refrigerator Mullion Rail
14	W10854958 Whirlpool Refrigerator Screw
15	WPW10170540 Whirlpool Screw
16	WPW10397055 Whirlpool Refrigerator Hinge Bracket
17	W11745278 Whirlpool Bracket
