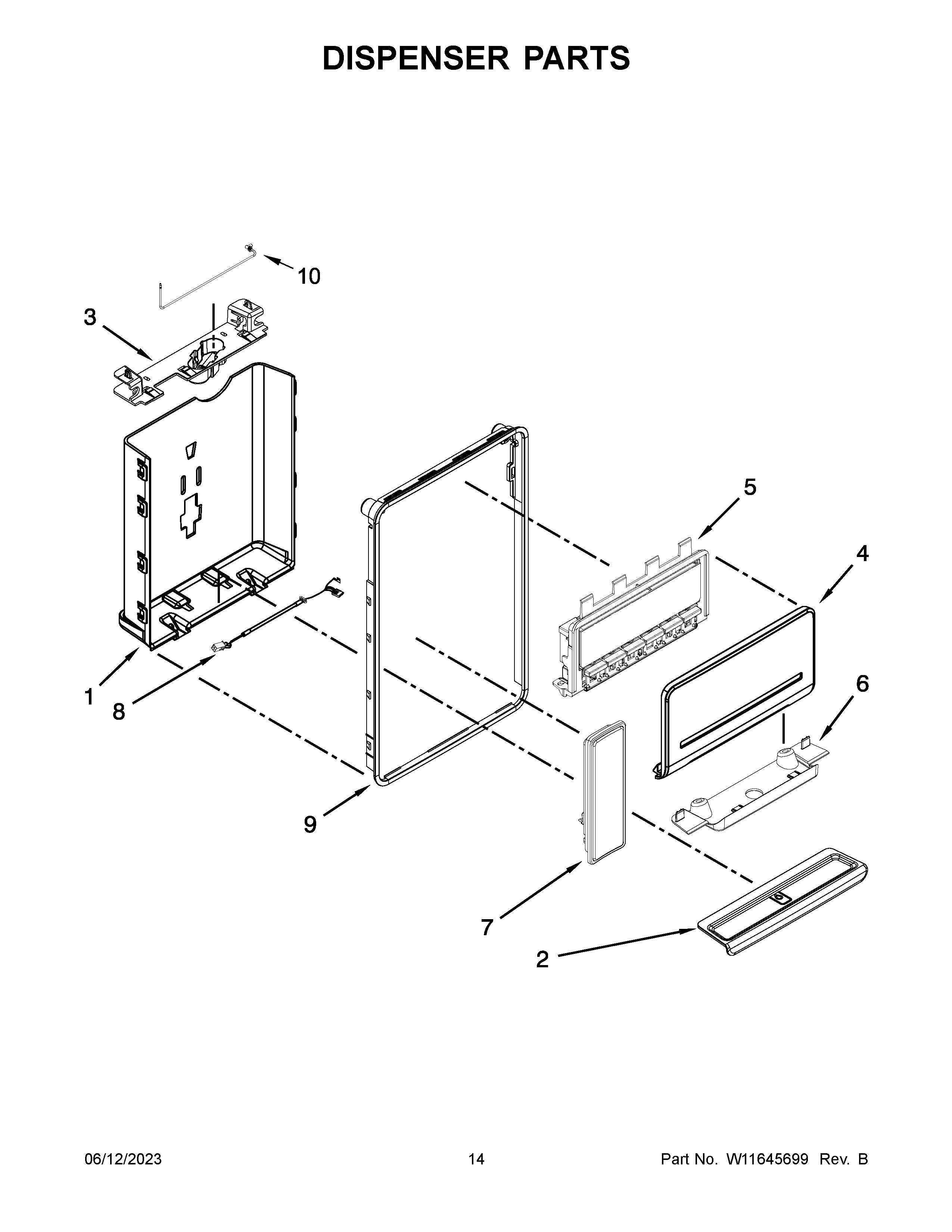

WRF560SEHB03 08 – DISPENSER PARTS

WRF560SEHB03 08 – DISPENSER PARTS

Written by

in

WRF560SEHB03 08 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10300448 Whirlpool Refrigerator Drip Tray
2AWPW10356018 Whirlpool Refrigerator Drip Tray
2BTRAY-DRIP
3W11616802 Whirlpool Separator Assembly
4W10435575 Whirlpool Refrigerator Fascia Spa
4AW10435576 Whirlpool Refrigerator Escutcheon
5W11655738-includeCORE Whirlpool W11655738 Refrigerator Electronic Control Board + Core
6W10356029 Whirlpool Refrigerator Separator
7AW10433546 Whirlpool Refrigerator Pad
7BW11715936 Whirlpool Pad
7W10433547 Whirlpool Refrigerator Pad
8W10735841 Whirlpool Refrigerator Wire Harness
9W10356017 Whirlpool Refrigerator Dispenser Trim
10W11615170 Whirlpool Water Tube
