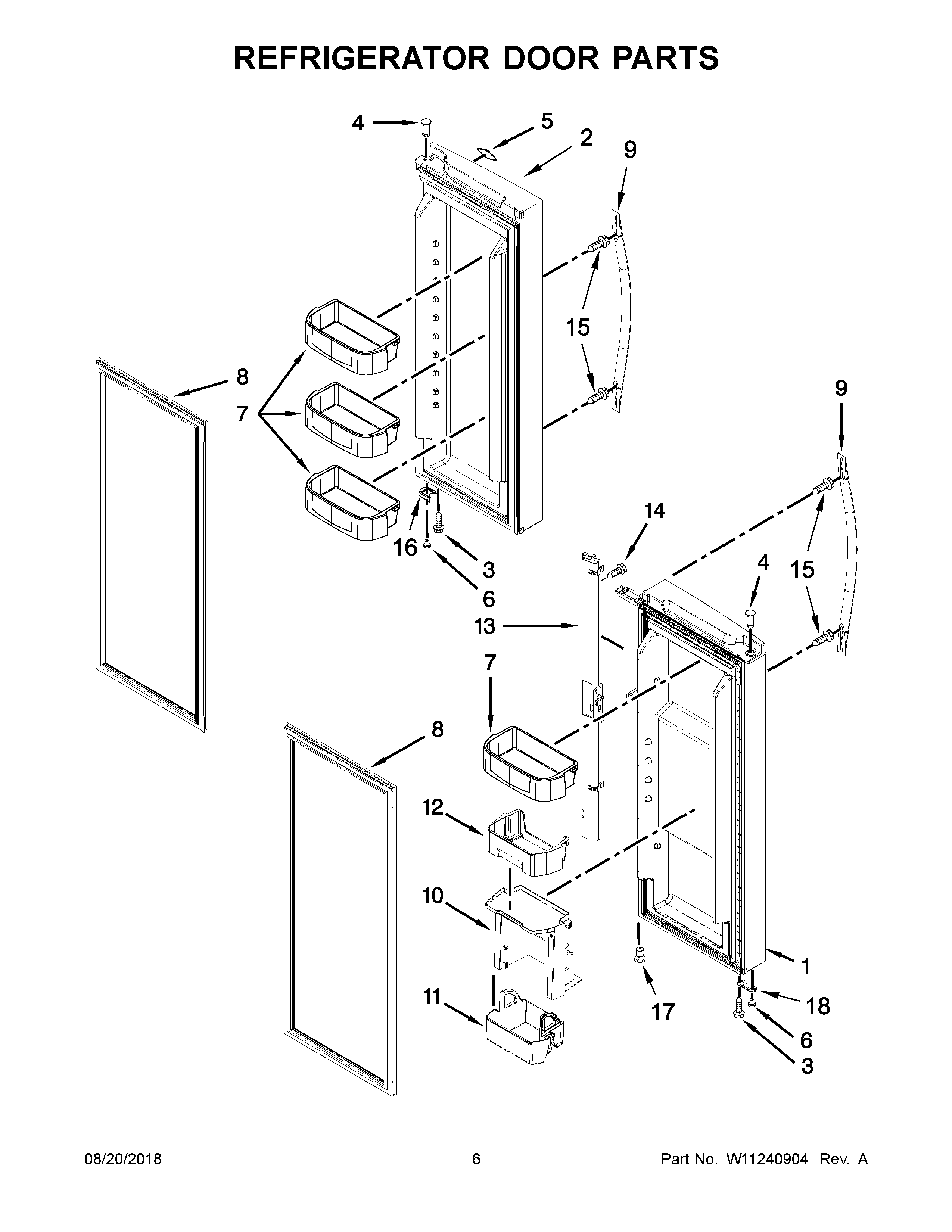

WRF560SEHV00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW11222545 Whirlpool Refrigerator Door FIP
1BLW11222542 Whirlpool Refrigerator Door Assembly
1AW11368204 Whirlpool Refrigerator Door Assembly
1W11368203 Whirlpool Refrigerator DOR-FIP
2CLW10858417 Whirlpool Refrigerator Door FIP
2BLW10865738 Whirlpool Refrigerator DOR FIP
2ALW10721541 Whirlpool Refrigerator Door FIP
2LW10721540 Whirlpool Refrigerator Door Assembly
3WP681249 Whirlpool Screw Assembly
4W11544568 Whirlpool Door Thimble
5W11178521 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8W10460612 Whirlpool Refrigerator Door Gasket
8AW10460610 Whirlpool Refrigerator FIP Gasket
8BGASKET-FIP
9CW11127179 Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11W11106787 Whirlpool Refrigerator Cantilever Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13AW11692845 Whirlpool Mullen Rail
13WPW10624451 Whirlpool Refrigerator Mullion Rail
13BWPW10624450 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10170540 Whirlpool Screw
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17W11745278 Whirlpool Bracket
