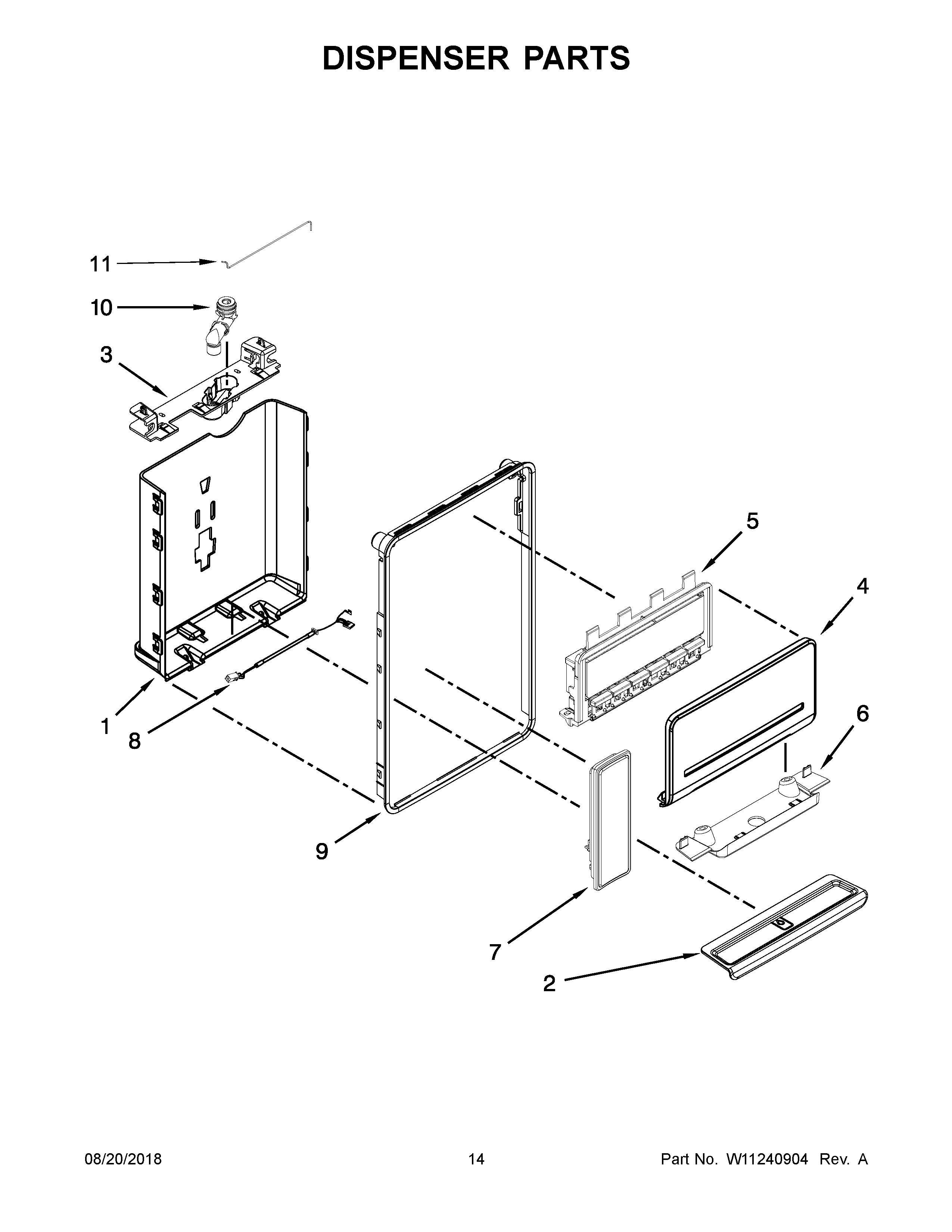

WRF560SEHV00 08 – DISPENSER PARTS

WRF560SEHV00 08 – DISPENSER PARTS

Written by

in

WRF560SEHV00 08 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10300448 Whirlpool Refrigerator Drip Tray
2AWPW10356018 Whirlpool Refrigerator Drip Tray
2BTRAY-DRIP
3W11616802 Whirlpool Separator Assembly
4AW10435576 Whirlpool Refrigerator Escutcheon
4W10435575 Whirlpool Refrigerator Fascia Spa
5W11082783 Whirlpool Refrigerator Electronic Control Board + Core
6W10356029 Whirlpool Refrigerator Separator
7BW11715936 Whirlpool Pad
7W10433547 Whirlpool Refrigerator Pad
7AW10433546 Whirlpool Refrigerator Pad
8W10735841 Whirlpool Refrigerator Wire Harness
9W10356017 Whirlpool Refrigerator Dispenser Trim
10WP2305235 Whirlpool Refrigerator Spigot
11W10445080 Whirlpool Refrigerator Water Tube
