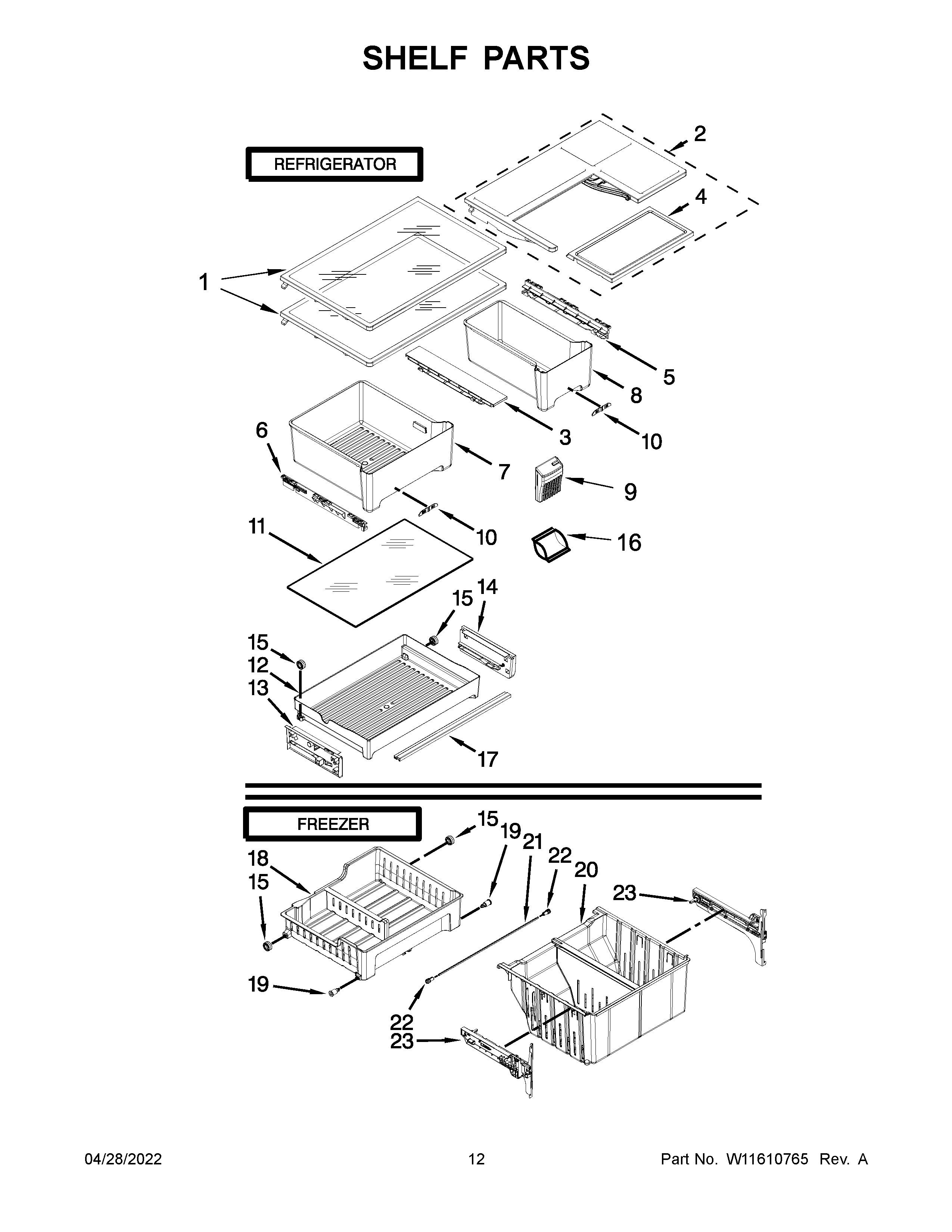

WRF560SEHV02 07 – SHELF PARTS

WRF560SEHV02 07 – SHELF PARTS

Written by

in

WRF560SEHV02 07 – SHELF PARTS

Products

PositionProduct
1WPW10486290 Whirlpool Refrigerator Glass Shelf
2WPW10502933 Whirlpool Refrigerator Shelf – Cantilever
3WPW10468557 Whirlpool Refrigerator Crisper Drawer Slide Rail Track
4WPW10313893 Whirlpool Refrigerator Glass Shelf
5WPW10468556 Whirlpool Refrigerator Track
6WPW10468555 Whirlpool Refrigerator Track
7WPW10370327 Whirlpool Refrigerator Crisper Pan
8WPW10317184 Whirlpool Refrigerator Crisper Pan
9HOLDER, PRODUCE FILTER
10W11590562 Whirlpool Refrigerator Slide
11WPW10513681 Whirlpool Glass Shelf
12WPW10397907 Whirlpool Refrigerator Meat Pan
13W11581314 Whirlpool Rail Assembly
14W11210990 Whirlpool Rail
15W11164152 Whirlpool Drawer Roller
16W10346771A Whirlpool Fresh Flow Produce Preserver
17W11241829 Whirlpool Refrigerator Support
18WPW10555437 Whirlpool Refrigerator Freezer Basket
19W11175807 Whirlpool Axle Assembly
20WPW10317289 Whirlpool Refrigerator Freezer Basket
21W10802342 Whirlpool Refrigerator Shaft
22WPW10277361 Whirlpool Refrigerator Collar
23WPW10397636 Whirlpool Refrigerator Left Hand Slide
23AWPW10397635 Whirlpool Refrigerator Slide
